CS1W-CLK

SYSMAC CS-series Controller Link Units

CS1W-CLK

New Controller Link Units, Now with 4,000 Send Words

last update: July 8, 2024

Controller Link Units

Unit clas- sifica- tion	Product name	Specifications				No. of unit numbers allocated	Current consump- tion (A)		Model	Stand- ards
Unit clas- sifica- tion	Product name	Commu- nications cable	Commu- nications type	Duplex support	Max. Units mountable per CPU Unit	No. of unit numbers allocated	5 V DC	26 V DC	Model	Stand- ards
CS1 CPU Bus Unit	Controller Link Unit	Wired shielded twisted- pair cable *1	Data links and message service	No	8	1	0.33	-	CS1W-CLK23	UC1, N, L, CE
	Controller Link Unit	Optical ring H-PCF cable *2		Yes. Unit duplexing and cable loop back are supported.	Non-duplex: 8, Duplex: 11 (6 Units comprising 3 sets of Duplex Units + 5 Non-duplex Units)	1	0.52	-	CS1W-CLK13
	Controller Link Unit	Optical ring GI cable *3		Yes. Unit duplexing and cable loop back are supported.		1	0.65	-	CS1W-CLK53

*1. Use the following special cable for shielded, twisted-pair cable.
• ESVC0.5×2C-13262 (Bando Electric Wire: Japanese Company)
• ESNC0.5×2C-99-087B (JMACS Japan Co., Ltd. : Japanese Company)
• ESPC 1P×0.5mm2 (Nagaoka Electric Wire Co.,Ltd.: Japanese Company)
• Li2Y-FCY2×0.56qmm (Kromberg & Schubert, Komtec Department: German Company)
• 1×2×AWG-20PE+Tr.CUSN+PVC (Draka Cables Industrial: Spanish Company)
• #9207 (Belden: US Company)
*2. When using a wire-to-optical (H-PCF) cable, use a H-PCF cable (for both Controller Link and SYSMAC LINK) or a
H-PCF optical fiber cable with connector.
*3. When using a wire-to-optical (GI) cable, use a GI optical cable that matches the specifications.

Accessories

The Optical Fiber Cable Bracket is included in CS1W-CLK13 and CS1W-CLK53.

Controller Link Support Boards (Product no longer available to order)

Product name	Specifications		Accessories	Model	Stand- ards
Product name	Communica- tions cable	Communica- tions type	Accessories	Model	Stand- ards
Controller Link Support Board for PCI Bus	Wired shielded twisted-pair cable	Data links and message service	• CD-ROM × 1 * • INSTALLATION GUIDE (W467) × 1 • Communications connector × 1	3G8F7-CLK23-E	CE, KC
	H-PCF optical model		• CD-ROM × 1 * • INSTALLATION GUIDE (W467) × 1 • Optical Fiber Cable Bracket × 1 • Power supply connector × 1	3G8F7-CLK13-E	CE
	GI optical model			3G8F7-CLK53-E	CE

* The CD-ROM contains the following software.
• Controller Link (PCI) Driver
• FinsGataway Version 2003 (PCI-CLK Edition)
• FinsGataway Version 3 (PCI-CLK Edition)
• Setup Diagnostic Utility
• C Library

Repeater Units

Name	Specifications	Model	Standards
Controller Link Repeater Unit	Wire-to-Wire Model	CS1W-RPT01	UC1, CE
	Wire-to-Optical (H-PCF) Model *1	CS1W-RPT02
	Wire-to-Optical (GI) Model *2	CS1W-RPT03

Using Repeater Units enables T-branches and long-distance wiring for Wired Controller Link networks, 62-node configurations, and converting part of the network to optical cable.
Note: 1. When using wire-to-optical (H-PCF) cable, use a H-PCF cable (for both Controller Link and SYSMAC LINK) or a
H-PCF optical fiber cable with connector.
2. When using wire-to-optical (GI) cable, use a GI optical cable (for Controller Link).

Relay Terminal Block

Name	Specifications	Model	Standards
Relay Terminal Blocks for Wired Controller Link Units	Used for Wired Controller Link Units (set of 5)	CJ1W-TB101	-

Controller Link Units can be replaced without stopping the communications of the entire network if a Relay Terminal Block is installed in advance on the Unit in a Wired Controller Link network. Relay Terminal Blocks cannot be used on Controller Link Support Boards.

Duplex Optical Fiber Cable (H-PCF Cable)

Name	Application	Specifications	Model	Standards
Duplex Optical Fiber Cable	CS1W-CLK13 or CS1W-CLK12-V1 * in a CS1D system	H-PCF cable for connecting Duplex Controller Link Units Cable length: 50 cm	CS1D-CN051	-

This cable is used to connect Units in active mode (ACT) and standby mode (STB) in a CS1D Duplex System.
* Discontinuation models in July 2012.

H-PCF Cables and Optical Connectors

Name	Application/construction		Specifications		Model	Standards
Optical Fiber Cables	Controller Link, SYSMAC LINK, SYSBUS	1. Optical fiber single-core cord 2. Tension member (plastic-sheathed wire) 3. Filler (plastic) 4. Filler surrounding signal wires (plastic, yarn, or fiber) 5. Holding tape (plastic) 6. Heat-resistant PV sheath	Two- core optical cable with tension member	Black 10 m	S3200-HCCB101	-
				Black 50 m	S3200-HCCB501
				Black 100 m	S3200-HCCB102
				Black 500 m	S3200-HCCB502
				Black 1000 m	S3200-HCCB103
				Orange 10 m	*S3200-HCCO101 1**
				Orange 50 m	*S3200-HCCO501 1**
				Orange 100 m	*S3200-HCCO102 1**
				Orange 500 m	*S3200-HCCO502 1**
				Orange 1000 m	*S3200-HCCO103 1**
Optical Connectors (Crimp-cut)	Controller Link: CS1W-CLK13 CS1W-CLK12-V1 1 3G8F7-CLK13-E 1 3G8F7-CLK12-EV1 1 CS1W-RPT02 SYSMAC LINK: CS1W-SLK11 3G8F7-SLK11-E 1 C200HW-SLK13/14 *1		Half lock		S3200-COCF2571
Optical Connectors (Crimp-cut)	Controller Link: CS1W-CLK13 CS1W-CLK12-V1 1 3G8F7-CLK13-E 1 3G8F7-CLK12-EV1 1 CS1W-RPT02 SYSMAC LINK: 3G8F7-SLK11-E 1		Full lock		S3200-COCF2071 *2

*1. Discontinuation models.
*2. Full-lock Optical Connectors (Crimp-cut) (S3200-COCF2071) cannot be used with the CS1W-SLK11. Use a Half-lock
Cable (S3200-COCF2571) or a H-PCF Optical Fiber Cable with Connector (S3200-CN[][][]-[][]-[][]).

H-PCF Optical Fiber Cables with Connectors (Black Composite Cables with Two-Optical Lines and Two Power Supply Lines)

Application	Appearance	Model	Standards
Controller Link, SYSMAC LINK		S3200-CN[][][]-20-20	-
		S3200-CN[][][]-20-25
		S3200-CN[][][]-25-25

Optical connectors for H-PCF Optical Cables with Connectors are adhesive polished.

Cable Length

The following cable lengths are available: 2 m, 5 m, 15 m, and 20 m. For lengths of 21 m or more, contact your OMRON sales representative.

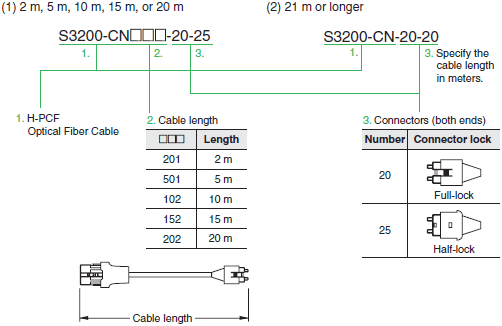

Model Numbers

Optical Connector Assembly Tool

Name	Applicable Unit	Model	Manufacturer	Standards
Optical Fiber Assembly Tool *	This tool is used on site for mounting crimp-cut connectors and hard plastic-clad silica optical fiber for optical transmission systems of SYSMAC C-series SYSBUS, SYSMAC LINK, and Controller Link.	CAK-0057	Sumitomo Electric Industries, Ltd.	-

* There is a risk of quality problems when using cables assembled by typical users, so we recommend purchasing
cables with preattached connectors or having a qualified technician assemble the cables.
