Global(Unit: mm)
H3CR-F
Solid-state Timer
DIN 48 × 48-mm Twin Timers
Related Contents
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 18, 2024

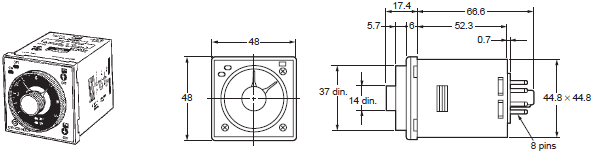

H3CR-F
H3CR-FN
H3CR-F8
H3CR-F8N

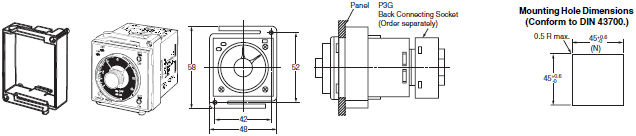

Flush Mounting Adapter
Y92F-30 Flush Mounting Adapter (Order Separately)
Note: 1. The orientation of the Adapters for two or more Timers is different for a horizontal or vertical layout. Make sure
the orientation is correct.
Consecutive Mounting of n Timers
Without Front Covers: N = (48n - 2.5) + 1 - 0
With Front Covers: N = (51n - 5.5) + 1 - 0
With Panel Covers: N = (50n - 4.5) + 1 - 0
2. The applicable thickness of the mounting panel must be 1 to 5 mm.
the orientation is correct.
Consecutive Mounting of n Timers
Without Front Covers: N = (48n - 2.5) + 1 - 0
With Front Covers: N = (51n - 5.5) + 1 - 0
With Panel Covers: N = (50n - 4.5) + 1 - 0
2. The applicable thickness of the mounting panel must be 1 to 5 mm.

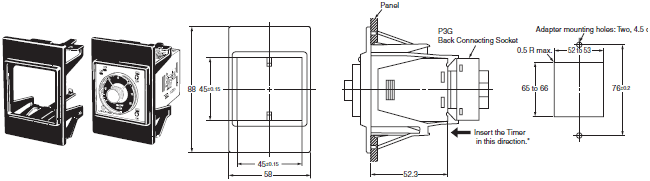

Y92F-73 Flush Mounting Adapter (Order Separately)
Note: A Front Cover and Flush Mounting Adapter cannot be used at the same time.
Note: The applicable thickness of the mounting panel must be 1 to 3.2 mm.
* Insert the Timer from the back of the Adapter.

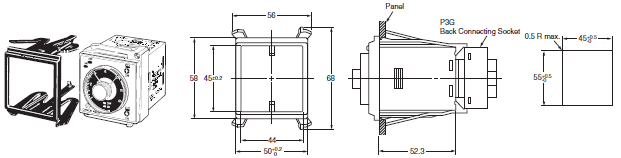

Y92F-74 Flush Mounting Adapter (Order Separately)
Note: A Front Cover and Flush Mounting Adapter cannot be used at the same time.
Note: The applicable thickness of the mounting panel must be 1 to 3.2 mm.
Dimensions with Front Connecting Socket
P2CF-08-[]/P2CF-11-[]
* These dimensions vary with the kind of DIN track (reference value).
Dimensions with Back Connecting Socket
P3G-08/P3GA-11
Note: There are no restrictions to the mounting direction.
