CompoNet Peripheral Devices

Communications Cables, Terminating Resistance, Connector, Mounting Bracket, Special Tools

Item list of CompoNet Peripheral Devices

last update: September 23, 2012

The CompoNet network lets you connect to units and branch and extend cables by just mounting connectors on communications cables and units.
The cable connection and branching methods depend on the cable type and branching form.

Four types of cable can be used on CompoNet networks.

Round cable I (2-wire), commercially available
Round cable II (4-wire), commercially available
Flat cable I (without sheath) DCA4-4F10
Flat cable II (with sheath) DCA5-4F10

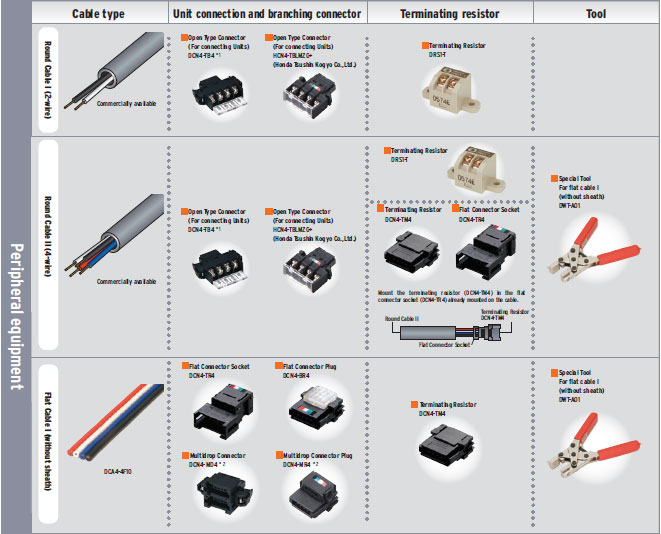

The terminating resistors, connectors, and special tools depend on the cable type.

*1. Open Type Connectors (DCN4-TB4) are notconnectable with Bit Slave Units whose connectors are small. Use
connectors made by Honda Tsushin Kogyo instead.
*2. Multidrop Connectors (DCN4-MD4) are not connectable with Bit Slave Units with Compact Connectors. Use Multidrop
Connector Plugs (DCN4-MR4) instead.
