E5L

Electronic Thermostat

E5L

Ideal for Simple Built-in Control.

(Unit: mm)

Thermostats

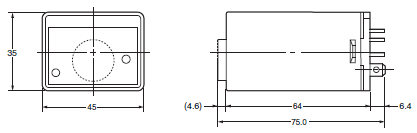

E5L-A[]

E5L Dimensions 2

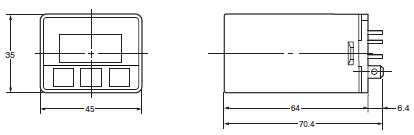

E5L-C[]

E5L Dimensions 3

Wiring Connection Sockets (Order Separately)

PTF14A

E5L Dimensions 5

Mounting Hole Dimensions

E5L Dimensions 6

PTFZ-14-E (Finger Protection Structure)

E5L Dimensions 7

Mounting Hole Dimensions

E5L Dimensions 8

PTF-14-PU-L Socket with Push-In Plus technology

E5L Dimensions 9

Mounting Hole Dimensions

E5L Dimensions 10

Accessories

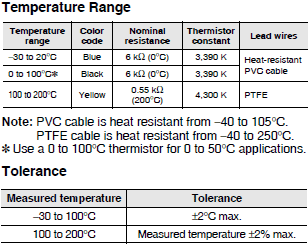

E52-THE-E5L Element-interchangeable Thermistor

Included with the following models: −30 to 20°C.

E5L Dimensions 13

Included with the following models: 0 to 50°C and 0 to 100°C.

E5L Dimensions 14

Included with 100 to 200°C Models.

E5L Dimensions 15
E5L Dimensions 16

Y92H-10 Mounting Brackets (Two)

E5L Dimensions 17

Note: Included with product.
         If a mounting bracket is missing or damaged, order a new bracket separately.
