High-temperature Basic Switch

TZ

Stable Operation at an Ambient Temperature of 400°C

Item list of TZ

Related Contents

last update: November 12, 2012

(Unit: mm)

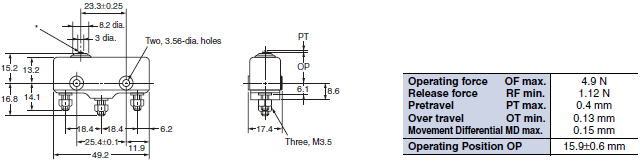

Pin Plunger
TZ-1G

TZ Dimensions 1

* Ceramic pushbutton

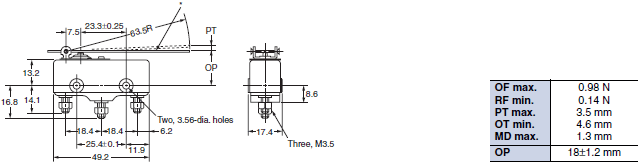

Hinge Lever
TZ-1GV

TZ Dimensions 2

* Stainless-steel lever

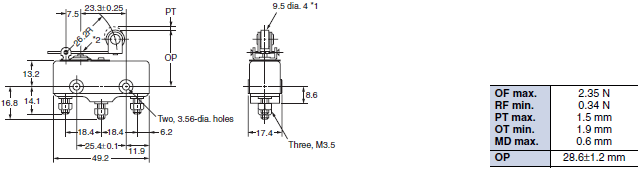

Short Hinge Roller Lever
TZ-1GV22

TZ Dimensions 3

*1. Stainless-steel roller
*2. Stainless-steel lever

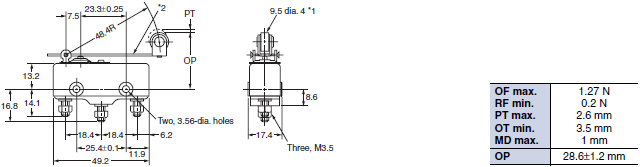

Hinge Roller Lever
TZ-1GV2

TZ Dimensions 4

*1. Stainless-steel roller
*2. Stainless-steel lever

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
