FQ2

Smart Camera

FQ2

Advanced inspection in a compact housing. Expanded performance and functionality. Camera, Communications, Software Tools, and Much More.

Caution: All units are in millimeters unless otherwise indicated.

Sensor

Integrated Sensor

Narrow View

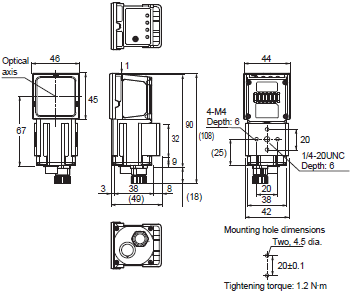

FQ2-S[][][]10F-[][][]
FQ2-CH[][][]10F-M
FQ-CR[][][]10F-M

Standard View

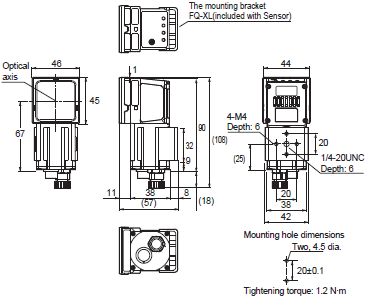

FQ2-S[][][]50F-[][][]
FQ2-CH[][][]50F-M
FQ-CR[][][]50F-M

FQ2 Dimensions 3

Wide View
FQ2-S[][]100[]-[][][]
FQ2-CH[][]100[]-M
FQ-CR[][]100[]-M

FQ2 Dimensions 4

C-mount

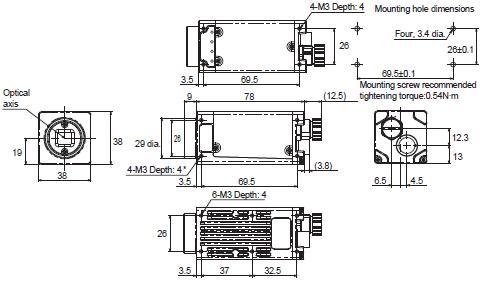

FQ2-S3[]-13[]
FQ2-S4[]-13[]

FQ2 Dimensions 5

* The shape of opposite side similar.

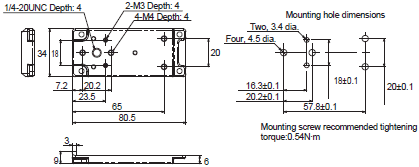

Mounting Base FQ-XLC (included with Sensor)

FQ2 Dimensions 6

Touch Finder

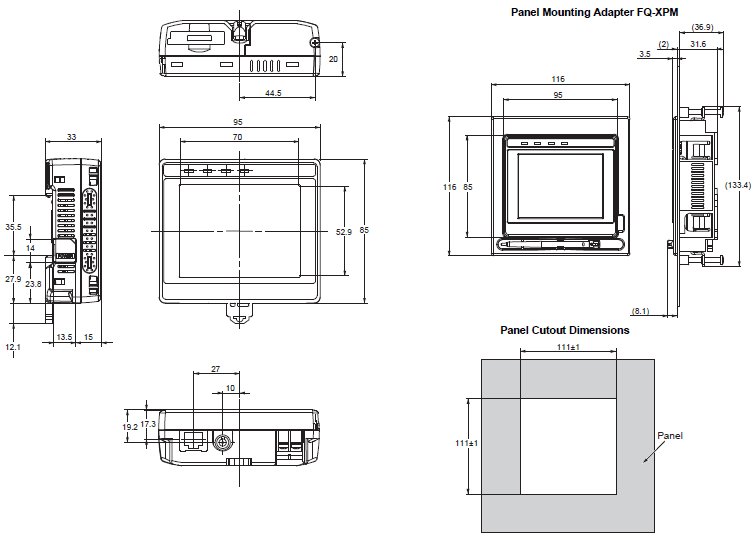

FQ2-D30/-D31

FQ2 Dimensions 8

Note: Provided with FQ2-D31 only.

FQ2 Dimensions 9

Sensor Data Unit

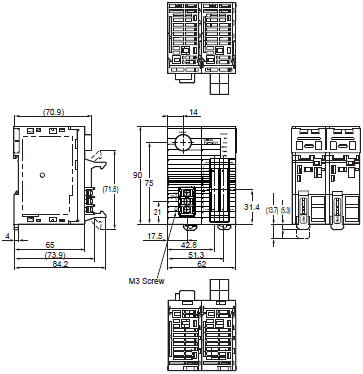

FQ-SDU10/-SDU15

FQ2 Dimensions 11

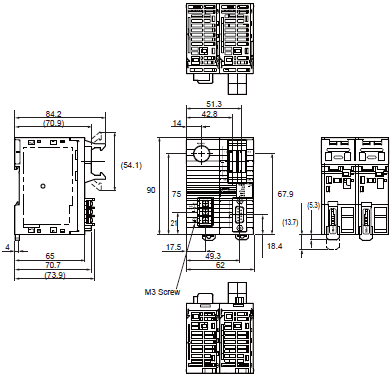

FQ-SDU20/-SDU25

FQ2 Dimensions 12
