(Unit: mm)

Low-cost Platinum Resistance Thermometers

Exposed-lead Models with Screws

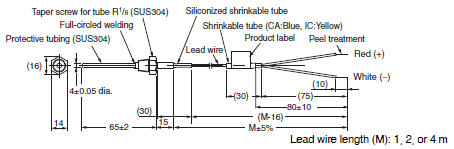

E52-P6DY

E52 (Low-cost Models) Dimensions 3

Note: The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models with Flange

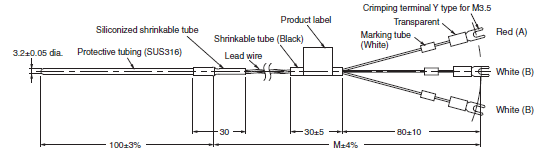

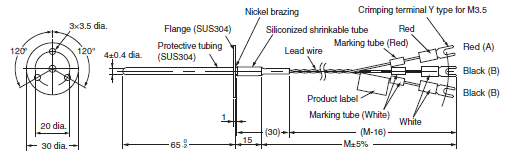

E52-P6FY

E52 (Low-cost Models) Dimensions 5

Note: The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models

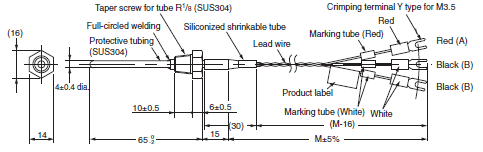

E52-P10AEY

E52 (Low-cost Models) Dimensions 7

Note: 1. The protective tubing is of pipe construction, which must not be bent.
         2. A Compression Fitting (PT[]) cannot be used for mounting.

Low-cost Thermocouples

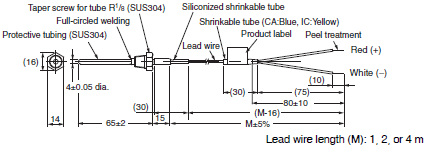

Exposed-lead Models with Spring

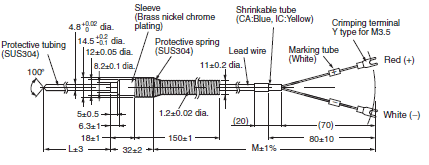

E52-CA[]ASY, E52-IC[]ASY

E52 (Low-cost Models) Dimensions 10

L: Protective tubing length
M: Lead wire length
Note: The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models with Screw

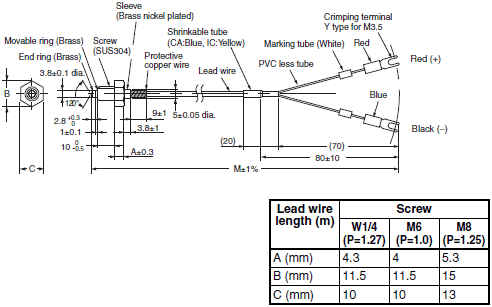

E52-CA1DY, E52-IC1DY

E52 (Low-cost Models) Dimensions 12

Internal Construction (E52-CA1DY)

E52 (Low-cost Models) Dimensions 13

Exposed-lead Models with Flange

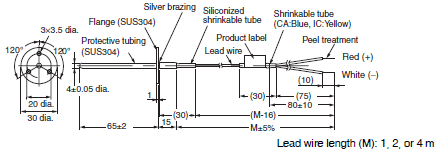

E52-CA6F-N, E52-IC6F-N

E52 (Low-cost Models) Dimensions 15

Note: 1. The thermocouple is a single wire from the tip to the terminal.
          2. The protective tubing is of pipe construction, which must not be bent.
          3. Do not use in locations subject to excessive vibration and shock. Doing so may cause disconnection.

E52-CA6F-N-25

E52 (Low-cost Models) Dimensions 16

Note: 1. The thermocouple is a single wire from the tip to the terminal.
          2. The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models with Screws

E52-CA6D-N, E52-IC6D-N

E52 (Low-cost Models) Dimensions 18

Note: 1. The thermocouple is a single wire from the tip to the terminal.
          2. The protective tubing is of pipe construction, which must not be bent.
          3. Do not use in locations subject to excessive vibration and shock. Doing so may cause disconnection.

E52-CA6D-N-25

E52 (Low-cost Models) Dimensions 19

Note: 1. The thermocouple is a single wire from the tip to the terminal.
          2. The protective tubing is of pipe construction, which must not be bent.

Exposed-lead Models

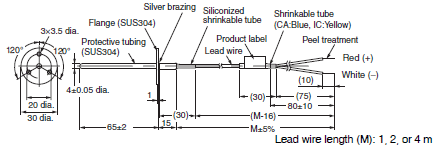

E52-CA10AE-N, E52-IC10AE-N

E52 (Low-cost Models) Dimensions 21

Note: 1. The thermocouple is a single wire from the tip to the terminal.
          2. Lead wire length M: 1, 2, or 4 m
          3. The protective tubing is of pipe construction, which must not be bent.
          4. The thermocouple cannot be mounted using a PT[] Compression Fitting.
