NX-TS

NX-series Temperature Input Unit

NX-TS

Standard and high-speed, high-precision temperature measurement and control

Item list of NX-TS

last update: January 11, 2018

(Unit: mm)

Screwless Clamping Terminal Block Type

12 mm Width

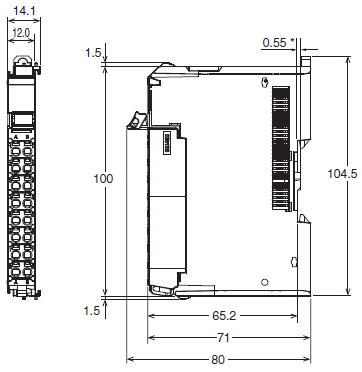

NX-TS Dimensions 1

24mm Width

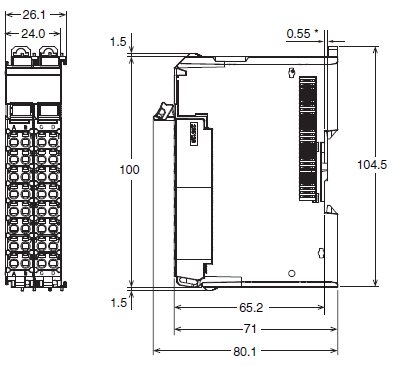

NX-TS Dimensions 2

* The dimension is 1.35 mm for Units with lot numbers through December 2014.

last update: January 11, 2018
