Small Enclosed Switches

VE

Small, Lightweight Enclosed Switches

(Unit: mm)

The [] in the model numbers is replaced by the operation direction code.
Refer to Model Number Legend on Data Sheet for details.

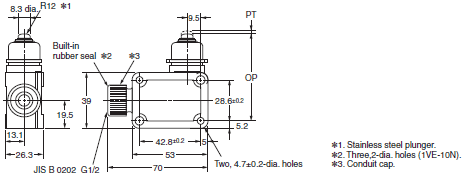

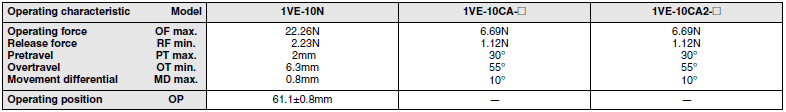

Sealed Plunger
1VE-10N

VE Dimensions 2

Cam Arm

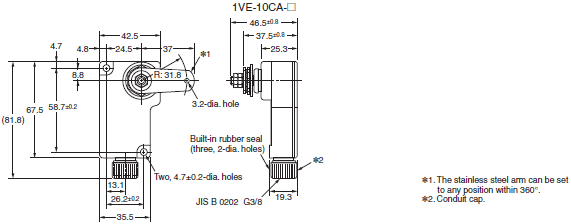

1VE-10CA-[]

VE Dimensions 3

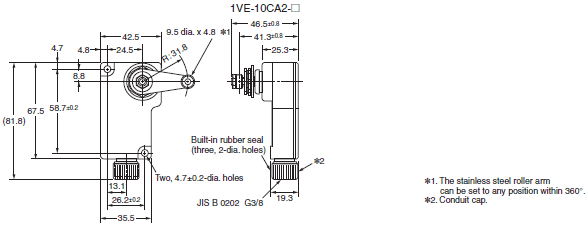

Cam Roller Arms
1VE-10CA2-[]

VE Dimensions 4

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

VE Dimensions 5
