Global(Unit: mm)
ES1-N
Infrared Thermosensor
Measure Workpieces without Physical Contact Non-damaging, Sanitary, and Efficient Temperature Management
Related Contents
- Temperature Controllers
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: August 1, 2017

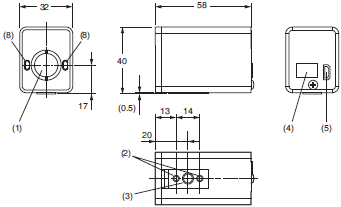

ES1-LP3-N/ES1-LP10-N

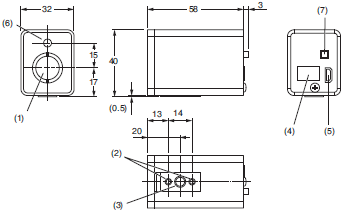

ES1-LW50-N/ES1-LW50L-N
(The ES1-LW50-N does not have the Laser output port (6) and the laser switch (7).)

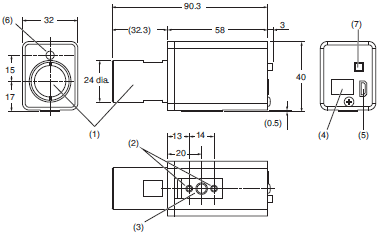

ES1-LW100-N/ES1-LW100L-N
(The ES1-LW100-N does not have the Laser output port (6) and the laser switch (7).)
last update: August 1, 2017
