G9SX-NS

Non-Contact Door Switch Controller

G9SX-NS

Dedicated controller for Non-Contact Door Switch with programless and safety circuit configuration

Item list of G9SX-NS

last update: May 16, 2022

Model Number Structure

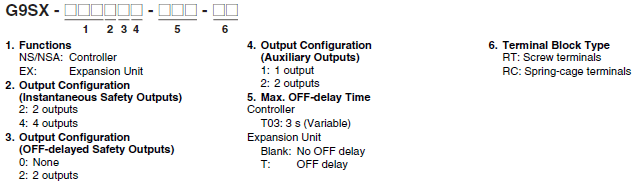

Model Number Legend

Non-Contact Door Switch Controller

Ordering Information

List of Models

Non-Contact Door Switch Controllers

*Safety outputs 1**		Auxiliary outputs *3	Logical AND con- nection input	Logical AND con- nection output	Max. OFF delay time *4	Rated voltage	Terminal block type	Model
Instant- aneous	OFF- delayed *2	Auxiliary outputs *3	Logical AND con- nection input	Logical AND con- nection output	Max. OFF delay time *4	Rated voltage	Terminal block type	Model
2 (Semi- conductors)	0	2 (Semi- conductors)	1	1	---	24 VDC	Screw terminals	G9SX-NS202-RT
	0				---		Spring- cage terminals	G9SX-NS202-RC
	2 (Semi- conductors)				3.0 s		Screw terminals	G9SX-NSA222-T03-RT
	2 (Semi- conductors)				3.0 s		Spring- cage terminals	G9SX-NSA222-T03-RC

*1. P channel MOS FET transistor output
*2. The OFF-delayed output becomes an instantaneous output by setting the OFF-delay time to 0 s.
*3. PNP transistor output
*4. The OFF-delay time can be set in 16 steps as follows:
0/0.2/0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.4/1.8/2.0/2.5/3.0 s

Expansion Units

Safety outputs		Auxiliary outputs	OFF-delay time	Rated voltage	Terminal block type	Model
Instantaneous	OFF-delayed	Auxiliary outputs	OFF-delay time	Rated voltage	Terminal block type	Model
4PST-NO	---	1 (Semi- conductor) *1	---	24 VDC	Screw terminals	G9SX-EX401-RT
4PST-NO	---		---		Spring-cage terminals	G9SX-EX401-RC
---	4PST-NO		*2		Screw terminals	G9SX-EX041-T-RT
---	4PST-NO		*2		Spring-cage terminals	G9SX-EX041-T-RC

*1. PNP transistor output
*2. The OFF-delay time is synchronized to the OFF-delay time setting in the connected Controller (G9SX-NSA222-T03-[]).

Accessories

Terminal Block

Specifications	Applicable units	Model	Remarks
Terminal Block with screw terminals (3-pin)	G9SX-NSA	Y9S-03T1B-02A	Two Terminal Blocks (black) with screw terminals, and a set of six code marks to prevent erroneous insertion.
Terminal Block with screw terminals (4-pin)	G9SX-NS G9SX-EX-[]	Y9S-04T1B-02A	Two Terminal Blocks (black) with screw terminals, and a set of six code marks to prevent erroneous insertion.
Terminal Block with spring-cage terminals (3-pin)	G9SX-NSA	Y9S-03C1B-02A	Two Terminal Blocks (black) with spring-cage terminals, and a set of six code marks to prevent erroneous insertion.
Terminal Block with spring-cage terminals (4-pin)	G9SX-NS G9SX-EX-[]	Y9S-04C1B-02A	Two Terminal Blocks (black) with spring-cage terminals, and a set of six code marks to prevent erroneous insertion.

Note: The G9SX main unit comes with a terminal block as standard equipment. The accessories shown here can be
ordered as a replacement.
* The illustrations show 3-pin types
