F3SG-RA-01TS(Unit: mm)
F3SG-RA-01TS / 02TS
Safety Light Curtain
Offers Both Durability and Reliability
Troubleshooting and Setting Tool downloads
Select the indicator status to see the error cause and solution. And download Setting Tool SD Manager2.
Related Contents
- Safety Components
- Safety Light Curtains / Safety Multi-Light Beams / Single-beam Safety Sensors
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 2, 2023
F3SG-RA-01TS

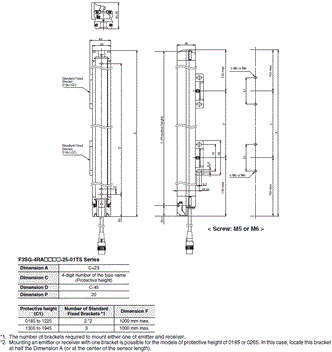

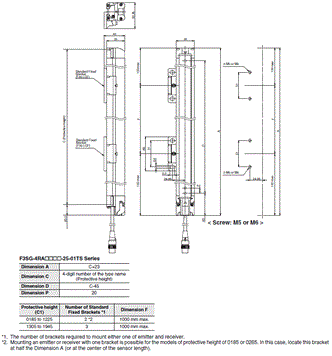

Mounted with Standard Fixed Brackets (F39-LGF)
Backside Mounting
Side Mounting

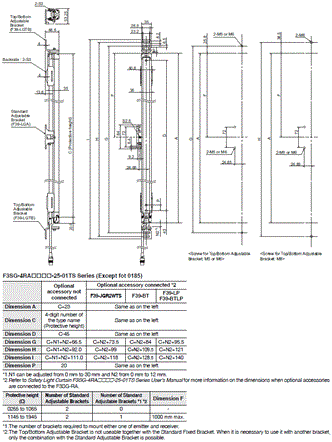

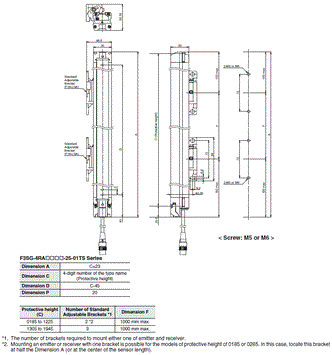

Mounted with Standard Adjustable Brackets (F39-LGA)
Backside Mounting
Side Mounting

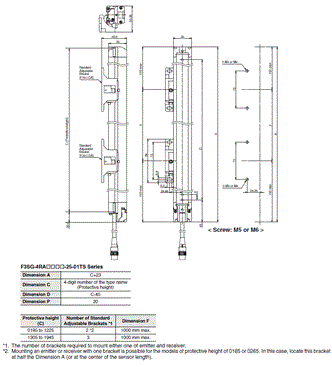

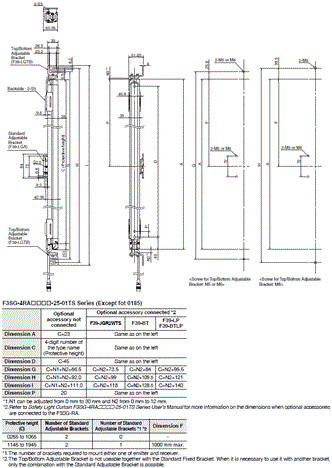

Mounted with Top/Bottom Adjustable Brackets (F39-LGTB) and Standard Adjustable Brackets (F39-LGA)
Dimensions when using the F3SG-RA Series except the F3SG-4RA0185-25-01TS.
Refer to Safety Light Curtain F3SG-4RA[][][][]-25-01TS Series User's Manual for the dimensions when using the F3SG-4RA0185-25-01TS.
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets

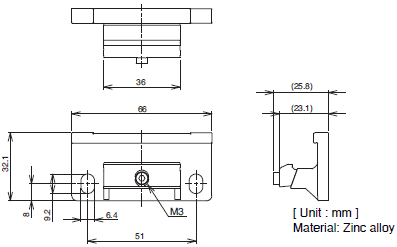

Standard Fixed Bracket (F39-LGF)
Standard Adjustable Bracket (F39-LGA, sold separately)

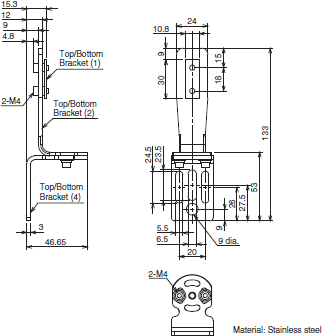

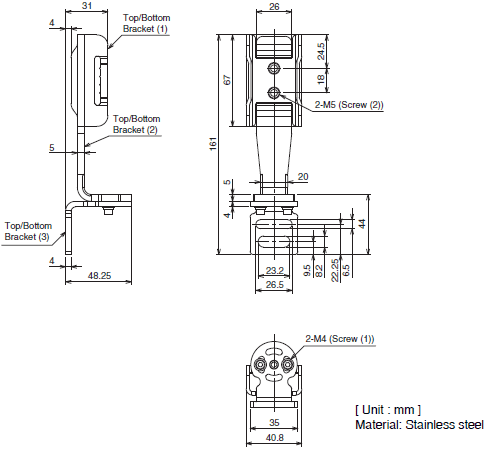

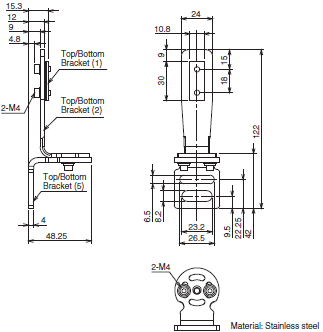

Top/Bottom Adjustable Bracket (F39-LGTB, sold separately)
Safety light curtain connecting cable

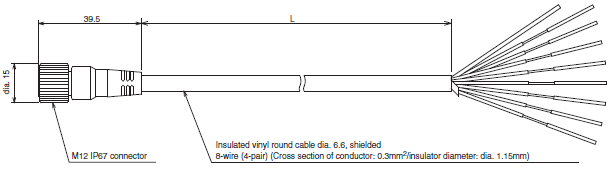

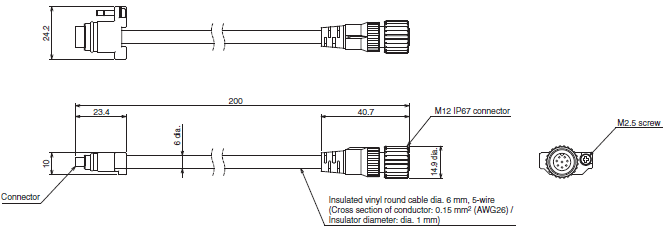

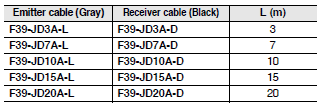

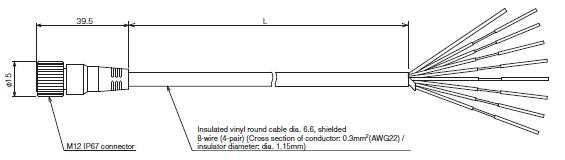

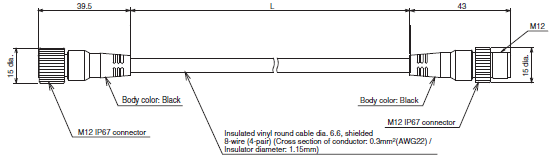

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)
Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

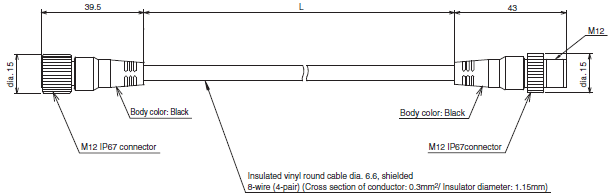

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)

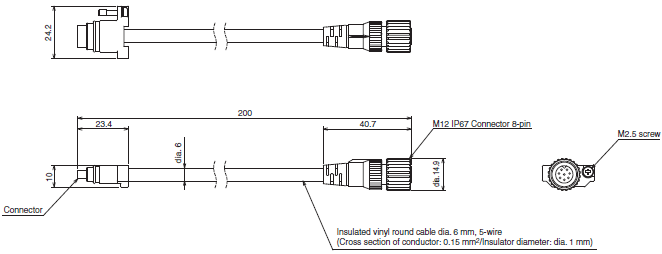

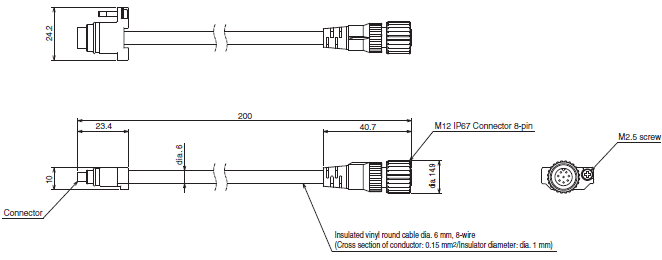

Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)

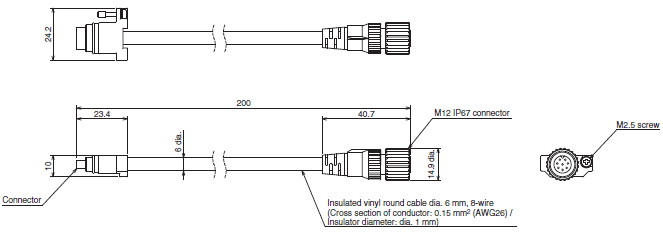

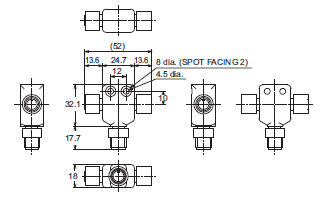

Reduced Wiring Connector (F39-CN5, sold separately)
Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)
Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)

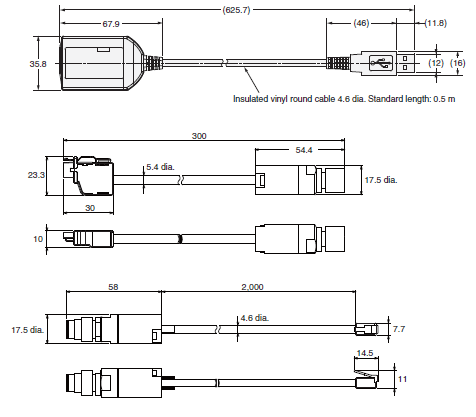

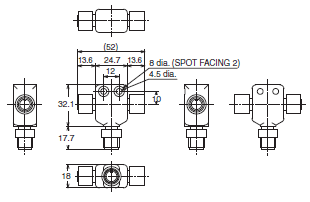

Interface Unit (F39-GIF, sold separately)

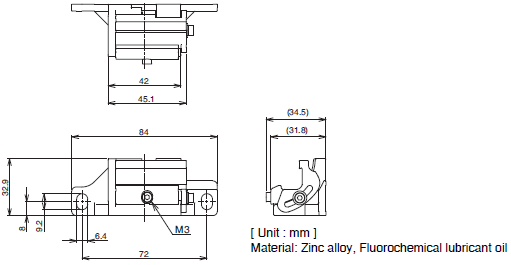

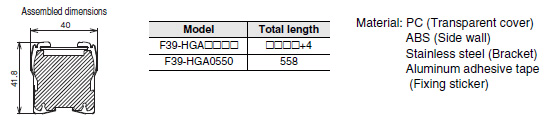

Spatter Protection Cover (F39-HGA, sold separately)

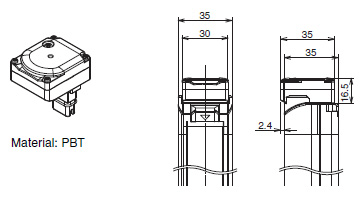

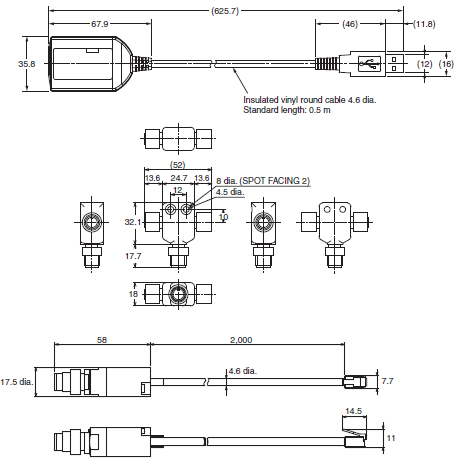

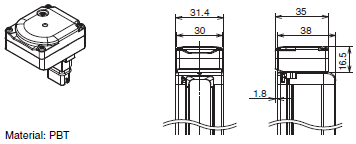

Bluetooth Communication Unit (F39-BT, sold separately)
Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately)

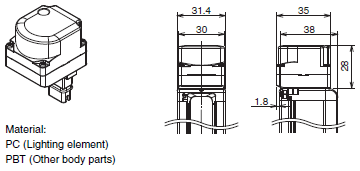

Lamp (F39-LP, sold separately)

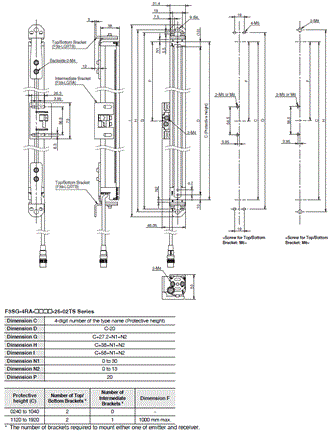

F3SG-RA-02TS

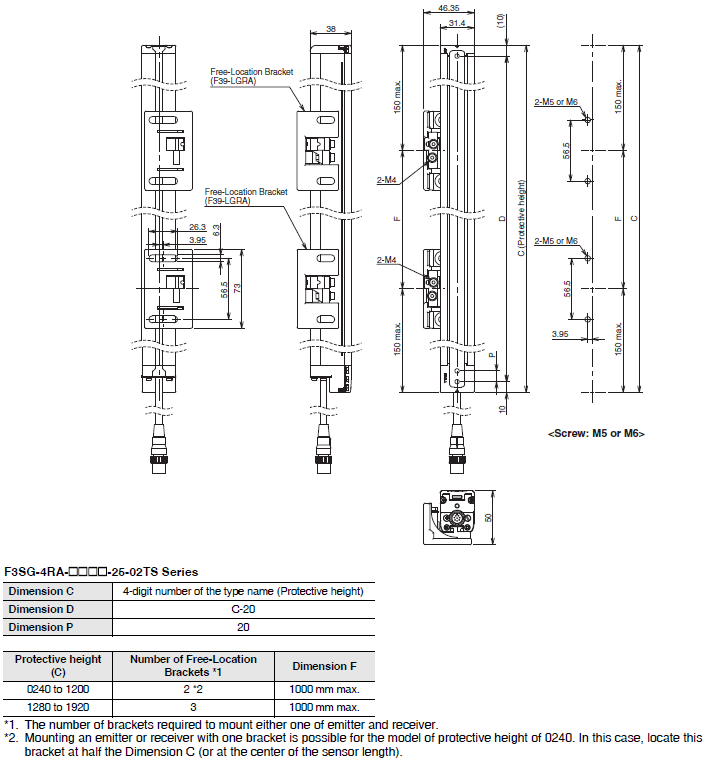

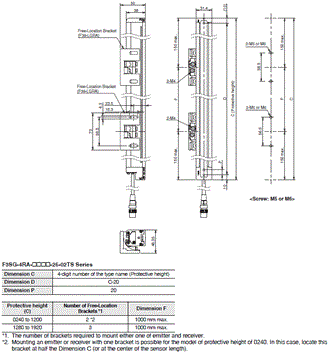

Mounted with Free-Location Brackets (F39-LGRA)
Backside Mounting
Side Mounting

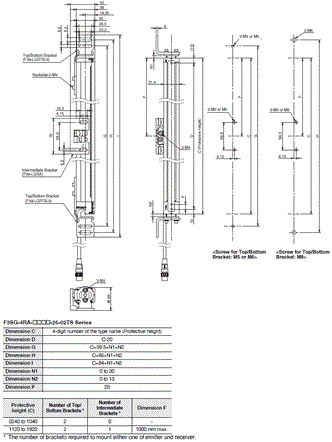

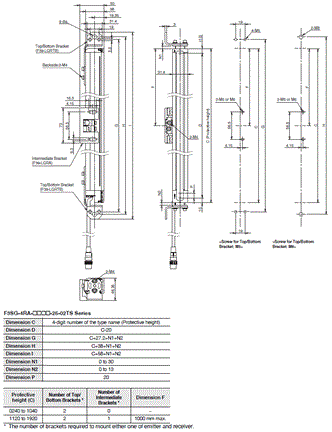

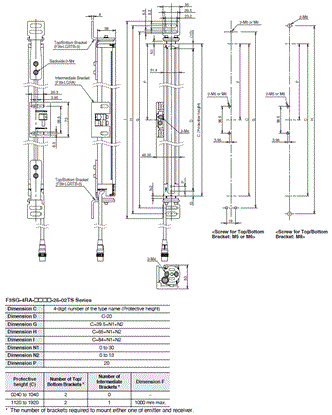

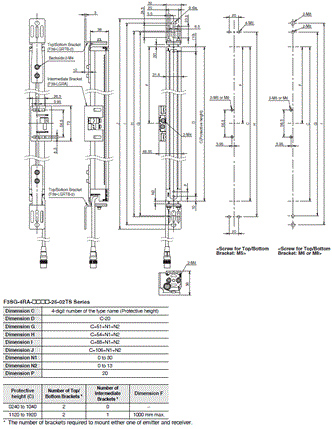

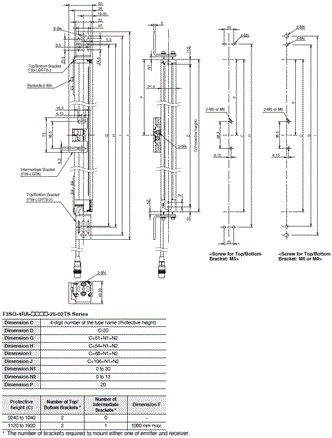

Mounted with Top/Bottom Brackets (F39-LGRTB) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting
Mounted with Top/Bottom Brackets (F39-LGRTB-2) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting
Mounted with Top/Bottom Brackets (F39-LGRTB-3) and Intermediate Bracket (F39-LGRA)
Backside Mounting
Side Mounting
Accessories
Sensor Mounting Brackets
Free-Location Bracket / Intermediate Bracket (F39-LGRA, sold separately
Top/Bottom Bracket (F39-LGRTB, sold separately)
Top/Bottom Bracket (F39-LGRTB-2, sold separately)
Top/Bottom Bracket (F39-LGRTB-3, sold separately)
Safety light curtain connecting cable

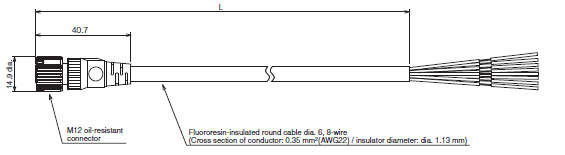

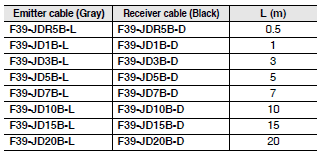

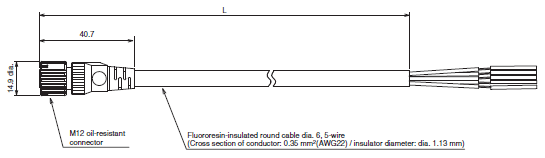

Single-Ended Cable for Emitter (Oil-Resistant Cable) (F39-JD[]RA-L, sold separately)
Single-Ended Cable for Receiver (Oil-Resistant Cable) (F39-JD[]RA-D, sold separately)

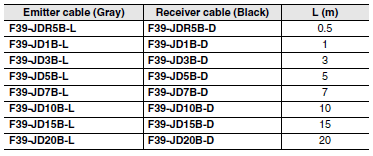

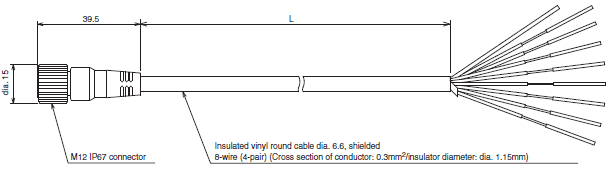

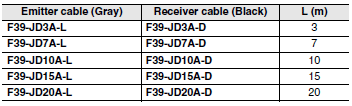

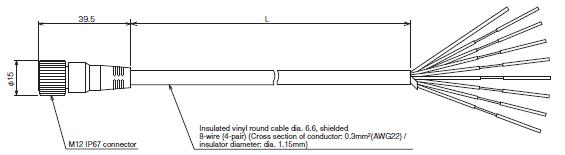

Single-Ended Cable for Emitter (F39-JD[]A-L, sold separately)
Single-Ended Cable for Receiver (F39-JD[]A-D, sold separately)

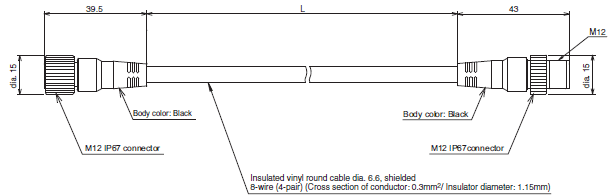

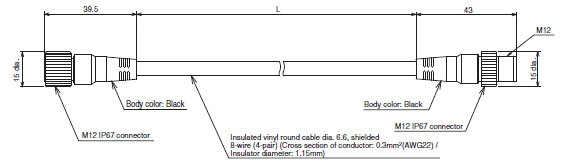

Double-Ended Cable for Emitter: Cable for extension (F39-JD[]B-L, sold separately)
Double-Ended Cable for Receiver: Cable for extension (F39-JD[]B-D, sold separately)
Reduced Wiring Connector (F39-CN5, sold separately)
Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)
Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)
Interface Unit (F39-GIF-1, sold separately)
Bluetooth Communication Unit (F39-BT, sold separately)
Lamp and Bluetooth Communication Unit (F39-BTLP, sold separately)
Lamp (F39-LP, sold separately)
