(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
E5CD-H
Digital Temperature Controller (48 x 48 mm)
High resolution and high precision input are available. 0.01°C display. Equipped with functions specialized for the digital industry. Push-In Plus terminal blocks reduce wiring work.
Related Contents
- Temperature Controllers
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: April 1, 2025

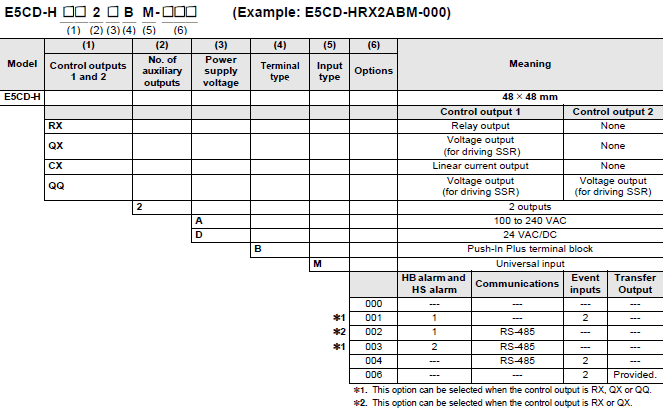

Model Number Legend
Models with Push-In Plus Terminal Blocks
Heating and Cooling Control
Using Heating and Cooling Control
List of Models
| Model |
|---|
| E5CD-HRX2ABM-000 |
| E5CD-HRX2DBM-000 |
| E5CD-HRX2ABM-001 |
| E5CD-HRX2DBM-001 |
| E5CD-HRX2ABM-002 |
| E5CD-HRX2DBM-002 |
| E5CD-HRX2ABM-003 |
| E5CD-HRX2DBM-003 |
| E5CD-HRX2ABM-004 |
| E5CD-HRX2DBM-004 |
| E5CD-HRX2ABM-006 |
| E5CD-HRX2DBM-006 |
| E5CD-HQX2ABM-000 |
| E5CD-HQX2DBM-000 |
| Model |
|---|
| E5CD-HQX2ABM-001 |
| E5CD-HQX2DBM-001 |
| E5CD-HQX2ABM-002 |
| E5CD-HQX2DBM-002 |
| E5CD-HQX2ABM-003 |
| E5CD-HQX2DBM-003 |
| E5CD-HQX2ABM-004 |
| E5CD-HQX2DBM-004 |
| E5CD-HQX2ABM-006 |
| E5CD-HQX2DBM-006 |
| E5CD-HCX2ABM-000 |
| E5CD-HCX2DBM-000 |
| E5CD-HCX2ABM-004 |
| E5CD-HCX2DBM-004 |
| Model |
|---|
| E5CD-HCX2ABM-006 |
| E5CD-HCX2DBM-006 |
| E5CD-HQQ2ABM-000 |
| E5CD-HQQ2DBM-000 |
| E5CD-HQQ2ABM-001 |
| E5CD-HQQ2DBM-001 |
| E5CD-HQQ2ABM-003 |
| E5CD-HQQ2DBM-003 |
| E5CD-HQQ2ABM-004 |
| E5CD-HQQ2DBM-004 |
| E5CD-HQQ2ABM-006 |
| E5CD-HQQ2DBM-006 |
Optional Products (Order Separately)
USB-Serial Conversion Cable
| Model |
|---|
| E58-CIFQ2 |
Waterproof Packing
| Model |
|---|
| Y92S-P8 |
Note: This Waterproof Packing is provided with the Digital Temperature Controller.
Current Transformers (CTs)
| Hole diameter | Model |
|---|---|
| 5.8 mm | E54-CT1 |
| 5.8 mm | E54-CT1L* |
| 12.0 mm | E54-CT3 |
| 12.0 mm | E54-CT3L* |
*Lead wires are included with these CTs. If UL certification is required, use these CTs.
Adapter
| Model |
|---|
| Y92F-45 |
Note:Use this Adapter when the panel has already been prepared for an E5B[] Controller.
Waterproof Cover
| Model |
|---|
| Y92A-48N |
Mounting Adapter
| Model |
|---|
| Y92F-49 |
Note: This Mounting Adapter is provided with the Digital Temperature Controller.
Front Covers
| Type | Model |
|---|---|
| Hard Front Cover | Y92A-48H |
| Soft Front Cover | Y92A-48D |
CX-Thermo Support Software
| Model |
|---|
| EST2-2C-MV4 |
Note: CX-Thermo version 4.70 or higher is required for the E5CD-H.
For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4
