Global(Unit: mm)
Y92[]
Accessories
![Y92[]](/Images/l_484-13-119073-198x198.jpg)
Mounting Brackets, Mounting Sleeves and Protective Covers
Related Contents
- Proximity Sensors
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: September 16, 2025

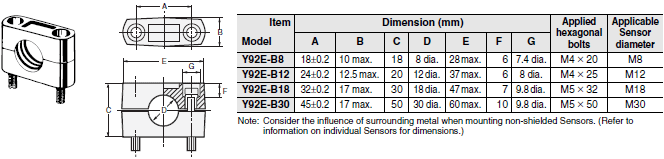

Mounting Brackets
![Y92[] Dimensions 1](/Images/484_dm_113-113119.gif)
Material:
Mounting Bracket: Polyacetal
Hexagonal bolt and spring washer: Nickel-plated iron

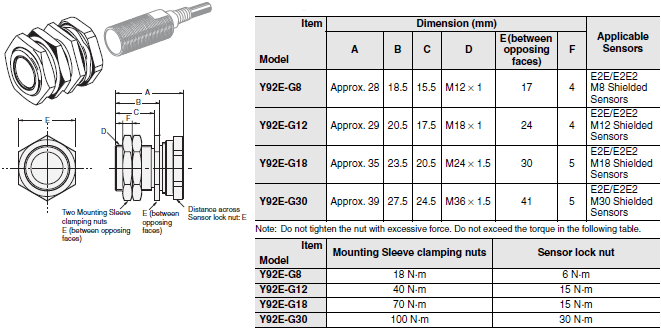

Mounting Sleeves (Quick Mounting)
![Y92[] Dimensions 2](/Images/484_dm_213-113120.gif)
Material:
Bracket:
Y92E-G8: Nickel-plated iron
Y92E-G12/-G18/-G30: Nickel-plated brass
Nut: Nickel-plated brass
Mounting Sleeve: Polyacetal

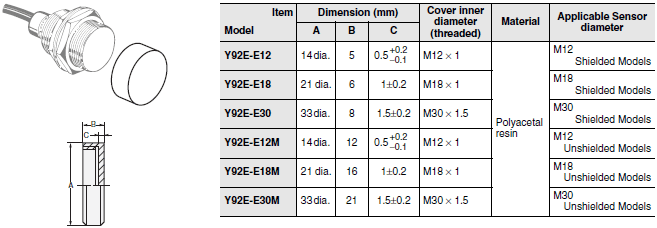

Protective Covers
![Y92[] Dimensions 3](/Images/484_dm_313-113123.gif)

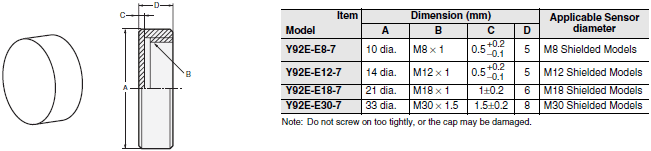

Sputter Protective Covers (Threaded on Inside of Cover)
![Y92[] Dimensions 4](/Images/484_dm_413-113125.gif)

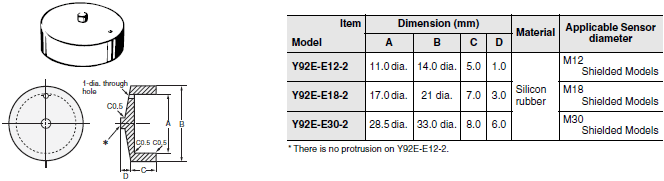

Sputter Protective Covers (Not Threaded on Inside of Cover)
![Y92[] Dimensions 5](/Images/484_dm_513-113127.gif)

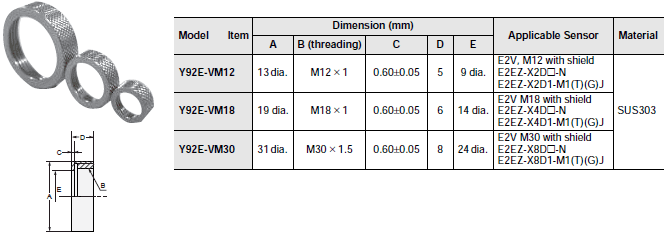

Protective Cover (Metal Cover for E2V and E2EZ Sensors)
![Y92[] Dimensions 6](/Images/484_dm_613-119225.gif)
