G3F / G3FD

Solid State Relays G3[]-VD

G3F / G3FD

Solid State Relays Featuring the Same Profile as MY Power Relays

Item list of G3F / G3FD

last update: November 18, 2024

Model Number Structure

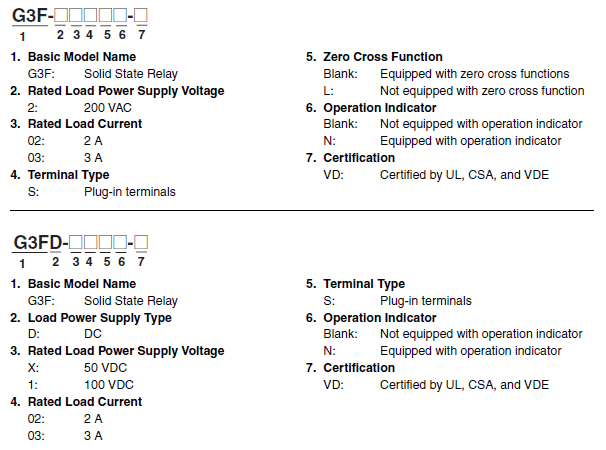

Model Number Legend

Ordering Information

List of Models

Isolation	Zero cross function	Indicator	Rated output load	Rated input voltage	Model
Photocoupler	Yes	Yes	3 A at 100 to 240 VAC *1	5 to 24 VDC	G3F-203SN-VD DC5-24
			2 A at 100 to 240 VAC *1	100/110 VAC	G3F-202SN-VD AC100/110
			2 A at 100 to 240 VAC *1	200/220 VAC	G3F-202SN-VD AC200/220
Phototriac coupler	No		3 A at 100 to 240 VAC *1	5 VDC	G3F-203SLN-VD DC5
				12 VDC	G3F-203SLN-VD DC12
				24 VDC	G3F-203SLN-VD DC24
Photocoupler	-		3 A at 4 to 48 VDC *2	5 to 24 VDC	G3FD-X03SN-VD DC5-24
			2 A at 5 to 110 VDC *3	100/110 VAC	G3FD-102SN-VD DC5-24
				200/220 VAC	G3FD-102SN-VD AC100/110
				5 to 24 VDC	G3FD-102SN-VD AC200/220
Photocoupler	Yes	No	3 A at 100 to 240 VAC *1	4 to 24 VDC	G3F-203S-VD DC4-24
Phototriac coupler	No			5 VDC	G3F-203SL-VD DC5
				12 VDC	G3F-203SL-VD DC12
				24 VDC	G3F-203SL-VD DC24
Photocoupler	-		3 A at 4 to 48 VDC *2	4 to 24 VDC	G3FD-X03S-VD DC4-24
Photocoupler	-		2 A at 5 to 110 VDC *3	4 to 24 VDC	G3FD-102S-VD DC4-24

Note: 1. Product is labelled “240 VAC”.
2. Product is labelled “48 VDC”.
3. Product is labelled “110 VDC”.
4. When ordering, specify the rated input voltage.

Accessories (Order Separately)

Connection Sockets

Classification	Terminal type	Model
Front-mounting	Screw terminals (Terminal cover structure) *	PYFZ-08
	Screw terminals (finger protection structure)	PYFZ-08-E
	Screw terminals (finger protection structure)	PYF08A-N
	Push-In Plus terminal blocks (Socket combination)	PYF-08-PU
Back-mounting	Relays with PCB Terminals	PY08-02

* Terminal cover type is PYCZ-C08. (Order Separately) For details, refer to the "Terminal Covers".
Refer to Common Socket and DIN Track Products for details on Connection Sockets and DIN Track products (sold separately) of your OMRON website.
Refer to PYF[][]-PU/P2RF-[][]-PU for details on A Push-In Plus Terminal Block Socket of your OMRON website.

Hold-down Clips

Applicable Socket			Hold-down Clips
Classification	Terminal type	Model	Model
For front-mounting	Screw terminals	PYFZ-08	PYC-A1 *
	Screw terminals (finger protection structure)	PYFZ-08-E
	Screw terminals (finger protection structure)	PYF08A-N
For back-mounting	Relays with PCB Terminals	PY08-02	PYC-P

* PYC-A1 is provided with two clips.

Terminal Covers

Applicable Socket	Terminal Covers
Model	Appearance	Model
PYFZ-08		PYCZ-C08 (2 pcs/set)

Note: Use these covers in a combination with PYFZ-08.

DIN Track Mounting Parts

Classification/division	Type		Model
For front-mounting	DIN Tracks	Shallow type, total length: 1 m	PFP-100N
		Shallow type, total length: 0.5 m	PFP-50N
		Deep type, total length: 1 m	PFP-100N2
	End Plate		PFP-M
	Spacer		PFP-S
