Question

What is the processing for the conduit section, and what are the recommended connectors for D4B-[]N Safety Limit Switch?

Answer



1. OMRON Applicable Connectors and Dimensions

Metal Connectors

ConduitApplicable cableInner diameter (D)
of seal rubber
External diameter of cableModel
Min.Max.
JIS B 0202 G1/2Cabtire cable
(general-purpose)
7 dia. mm5.5 dia. mm7.5 dia. mmSC-1M
9 dia. mm7.5 dia. mm9.5 dia. mmSC-2M
12.5 dia. mm11 dia. mm13 dia. mmSC-3M
14 dia. mm12 dia. mm14 dia. mmSC-4M
11 dia. mm9 dia. mm11 dia. mmSC-5M
Cabtire cable
(anticorrosive)
7 dia. mm5.5 dia. mm7.5 dia. mmSC-21
9 dia. mm7.5 dia. mm9.5 dia. mmSC-22
12.5 dia. mm11 dia. mm13 dia. mmSC-23
14 dia. mm12 dia. mm14 dia. mmSC-24
11 dia. mm9 dia. mm11 dia. mmSC-25

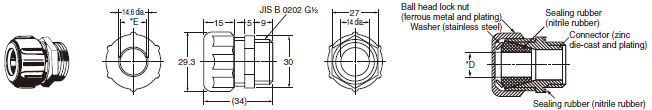

Metal Models with O-ring
G1/2
SC-1M to 5M

Metal Models without O-ring
G1/2
SC-21 to 25

Resin Connectors

ConduitApplicable cableInner diameter (D)
of seal rubber
External diameter of cableModel
Min.Max.
JIS B 0202 G1/2Cabtire cable10.6 dia. mm8.5 dia. mm10.5 dia. mmSC-P2
Pg13.59.6 dia. mm7.5 dia. mm9.5 dia. mmSC-P3
JIS B 0202 G1/29 dia. mm7.5 dia. mm9 dia. mmSC-6

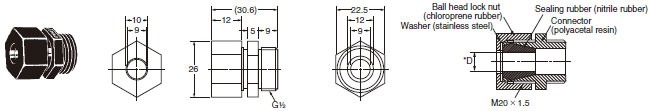

Resin Models
G1/2
SC-P2

Resin Models
Pg13.5
SC-P3

Resin Models
G1/2
SC-6

2. Tighten the connectors to a torque of 1.77 to 2.16 Nm. (For conduits, use a tightening torque of 0.78 to 0.88 Nm.)

The case may be damaged if the connectors are tightened excessively.

3. If using a 1/2-14NPT conduit, apply sealing tape to the connector conduit opening to conform to IP67.

4. For 3-conduit connections, use the enclosed cap screws on the unused conduit openings and tighten to a torque of 1.27 to 1.67 Nm.
