Transparent Object Detection Sensor

E3S-R

E3S-R

Ideal for Detecting Glass Wafers and Other Transparent Objects

Primary Contents



Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Compact Horizontal Models with Plastic Housing

Pre-wired Models
E3S-R11, E3S-R12
E3S-R31

E3S-R11_Dim

Standard Connector Models
E3S-R16, E3S-R17
E3S-R36

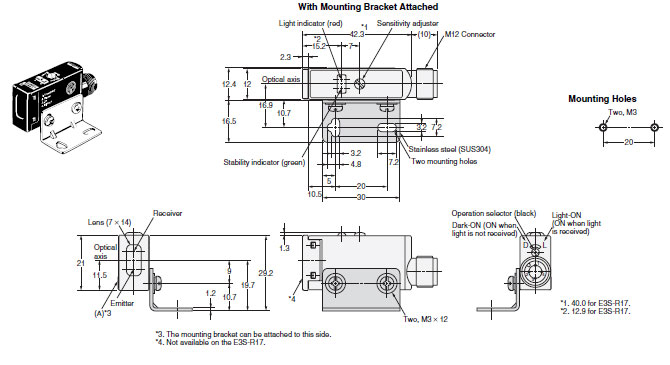

E3S-R16_Dim

Compact Vertical Models with Plastic Housing

Pre-wired Models
E3S-R61, E3S-R62
E3S-R81

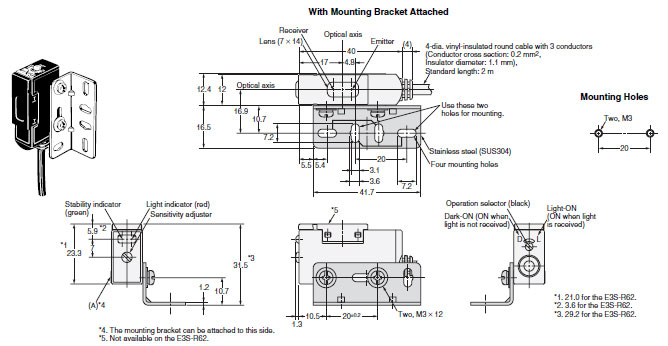

E3S-R61_Dim

Standard Connector Models
E3S-R66, E3S-R67
E3S-R86

E3S-R66_Dim

Horizontal Models with Metal Housing
E3S-RS30E4
E3S-R1E4

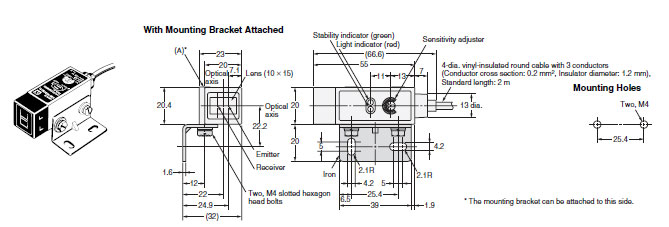

E3S-RS30E4_Dim

Vertical Models with Metal Housing
E3S-RS30E42
E3S-R1E42

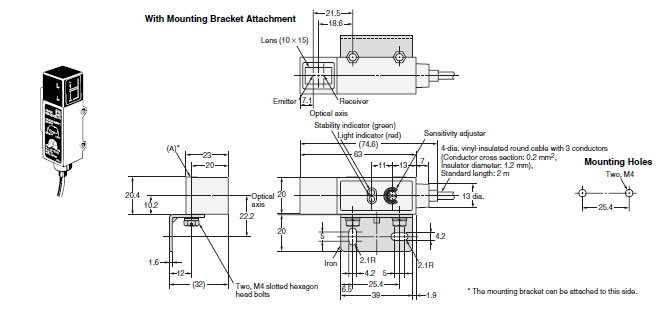

E3S-RS30E42_Dim

Caution: All units are in millimeters unless otherwise indicated.
