E5C2

DIN-sized (48 x 48 mm) Temperature Controller with Analog Setting

Quick links to 'E5C2' page in your country / territory.

Get more support via Products links, such as manuals and CAD files.

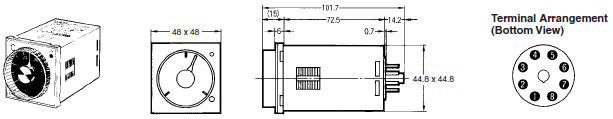

E5C2

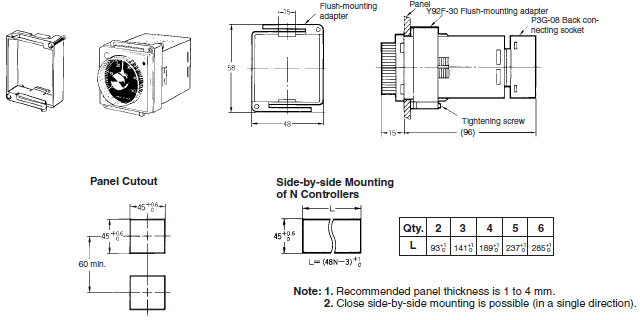

Dimensions with Flush-mounting Adapter (Accessory),
and Back Connecting Socket (Sold Separately)

Accessories (Order Separately)

Connection Sockets

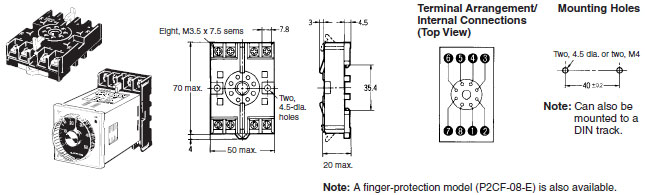

P2CF-08 Front Connecting Socket

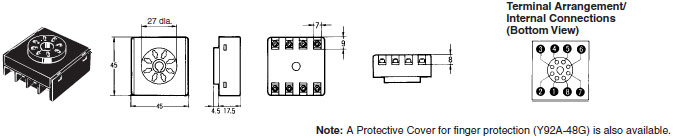

P3G-08 Back Connecting Socket (for Flush Mounting)

Hard Protective Cover

A Hard Protective Cover (Y92A-48B) is available. It can be used in the following cases.

To protect the setting section, against dust and dirt

To prevent accidently changing settings by touching the front of the Controller.

To protect the Controller from water drips

Applicable Thermistor

Connect a Thermistor with a replaceable element (E52-THE5A, E52-THE6D, or E52-THE6F) to the E5C2-R20G.

Caution: All units are in millimeters unless otherwise indicated.
