SitemapTemperature Controller
E5C2
DIN-sized (48 x 48 mm) Temperature Controller with Analog Setting
Data Sheet (995KB)
Quick links to 'E5C2' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Temperature Controllers

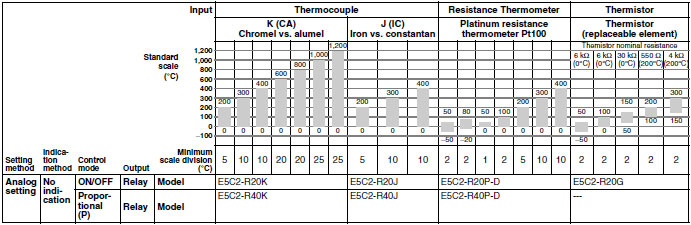

| Input | Thermocouple | |||||||||||||
| K (CA) Chromel vs. alumel | J (IC) Iron vs. constantan | |||||||||||||
| Standard scale (°C) | 0 to 200 | 0 to 300 | 0 to 400 | 0 to 600 | 0 to 800 | 0 to 1,000 | 0 to 1,200 | 0 to 200 | 0 to 300 | 0 to 400 | ||||
| Setting method | Indication method | Control mode | Output | Minimum scale division (°C) | 5 | 10 | 10 | 20 | 20 | 25 | 25 | 5 | 10 | 10 |
| Analog setting | No indication | ON/OFF | Relay | Model | E5C2-R20K | E5C2-R20J | ||||||||
| Proportional (P) | Relay | Model | E5C2-R40K | E5C2-R40J | ||||||||||
| Input | Resistance Thermometer | Thermistor | ||||||||||||||
| Platinum resistance thermometer Pt100 | Thermistor (replaceable element) | |||||||||||||||
| Standard scale (°C) | -50 to 50 | 20 to 80 | 0 to 50 | 0 to 100 | 0 to 200 | 0 to 300 | 0 to 400 | Themistor nominal resistance | ||||||||
| 6 kΩ (0°C) | 6 kΩ (0°C) | 30 kΩ (0°C) | 550 Ω (200°C) | 4 kΩ (200°C) | ||||||||||||
| -50 to 50 | 0 to 100 | 50 to 150 | 100 to 200 | 150 to 300 | ||||||||||||
| Setting method | Indication method | Control mode | Output | Minimum scale division (°C) | 2 | 2 | 1 | 2 | 5 | 10 | 10 | 2 | 2 | 2 | 2 | 2 |
| Analog setting | No indication | ON/OFF | Relay | Model | E5C2-R20P-D | E5C2-R20G | ||||||||||
| Propor- tional (P) | Relay | Model | E5C2-R40P-D | --- | ||||||||||||
Note:When placing an order, specify the temperature range and supply voltage in addition to the model number.
Standard Models (Power Supply: 100 to 120 VAC)
| Indication method | No indication | ||||
| Control mode | ON/OFF | Proportional (P) | |||
| Output | Relay | ||||
| Input/standard scale (°C) | Thermocouple | K (CA) Chromel vs. alumel | 0 to 200 | E5C2-R20K | E5C2-R40K |
| 0 to 300 | E5C2-R20K | E5C2-R40K | |||
| 0 to 400 | E5C2-R20K | E5C2-R40K | |||
| 0 to 600 | E5C2-R20K | E5C2-R40K | |||
| 0 to 800 | E5C2-R20K | E5C2-R40K | |||
| 0 to 1,000 | E5C2-R20K | E5C2-R40K | |||
| 0 to 1,200 | E5C2-R20K | E5C2-R40K | |||
| J (IC) Iron vs. constantan | 0 to 200 | E5C2-R20J | E5C2-R40J | ||
| 0 to 300 | E5C2-R20J | E5C2-R40J | |||
| 0 to 400 | E5C2-R20J | E5C2-R40J | |||
| Resistance Thermometer | Platinum resistance thermometer Pt100 | - 50 to 50 | E5C2-R20P-D | E5C2-R40P-D | |
| - 20 to 80 | E5C2-R20P-D | E5C2-R40P-D | |||
| 0 to 50 | E5C2-R20P-D | E5C2-R40P-D | |||
| 0 to 100 | E5C2-R20P-D | E5C2-R40P-D | |||
| 0 to 200 | E5C2-R20P-D | E5C2-R40P-D | |||
| 0 to 300 | E5C2-R20P-D | E5C2-R40P-D | |||
| 0 to 400 | E5C2-R20P-D | E5C2-R40P-D | |||
| Thermistor | THE (replaceable element) | - 50 to 50 | E5C2-R20G | --- | |
| 0 to 100 | E5C2-R20G | --- | |||
| 50 to 150 | E5C2-R20G | --- | |||
| 100 to 200 | E5C2-R20G | --- | |||
| 150 to 300 | E5C2-R20G | --- | |||
Note:Ask your OMRON representative about models with 200 to 240 VAC power supply.
Accessories (Order Separately)
Sockets
| Name | Model |
| Front Connecting Socket | P2CF-08 |
| Back Connecting Socket | P3G-08 |
| Front Connecting Socket with Finger Protection | P2CF-08-E |
| Protective Cover (for finger protection) | Y92A-48G |
Protective Cover
| Type | Model |
| Hard Protective Cover | Y92A-48B |
