Liquid Leakage Sensor Amplifiers for Long-distance Wiring

K7L-U/K7L-UD

Ultra-miniature Liquid Leakage Sensor Amplifier Enables Longest Liquid Leakage Monitoring Distance in Industry

Quick links OMRON IA Liquid Leakage Sensors in your country.

Liquid Leakage Sensor Amplifier

K7L-U/-UD

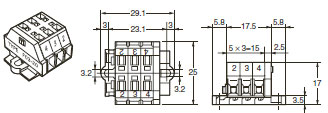

Terminal Block (See note 1.)

F03-20

Terminator (See note 1.)

F03-20T

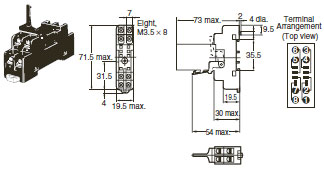

Track-mounted Sockets (See note 2.)

P2RF-08 (Round terminals can be used.)

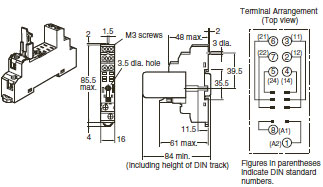

Track-mounted Sockets (See note 2.)

P2RF-08-E

Note:
1. The Terminal Block is made of nylon 66. Mount the Terminal Block in locations not subject to liquid chemicals using M3 screws.

2. Secure the Sockets with M3 screws at a torque of 0.78 to 1.18 Nm.

Caution: All units are in millimeters unless otherwise indicated.
