SitemapCompact Non-Contact Door Switch/Flexible Safety Unit
D40A / G9SX-NS
Electronic Detection Mechanism for Better Stability in Non-contact Door Switch Operation
Data Sheet (4160KB)
Quick links to 'D40A / G9SX-NS' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Non-contact Door Switch (Switch/Actuator)

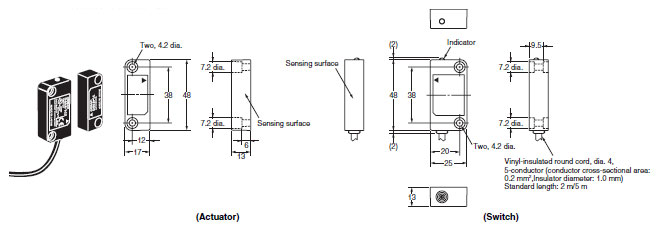

D40A-1C2
D40A-1C5
Non-contact Door Switch Controller

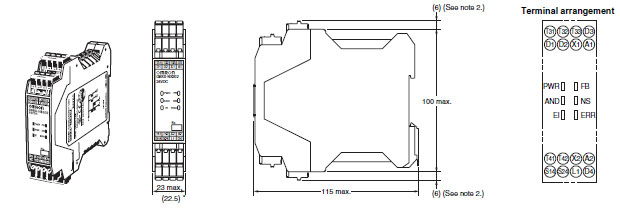

G9SX-NS202-[]
![G9SX-NS202-[]_Dim](img/d40a_g9sx-ns_dm_2.jpg)
Note:
1. Above outline drawing is for models with spring-cage terminals (-RC).
2. For models with spring-cage terminals (-RC) only.
*Typical dimension
Non-contact Door Switch Controller

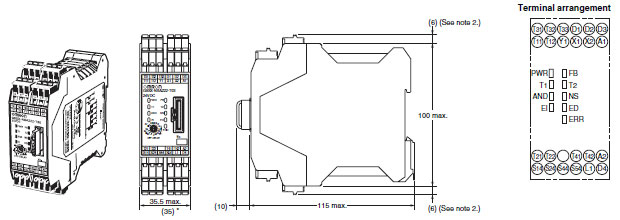

G9SX-NSA222-T03-[]
![G9SX-NSA222-T03-[]_Dim](img/d40a_g9sx-ns_dm_3.jpg)
Note:
1. Above outline drawing is for models with spring-cage terminals (-RC).
2. For models with spring-cage terminals (-RC) only.
*Typical dimension
Expansion Unit

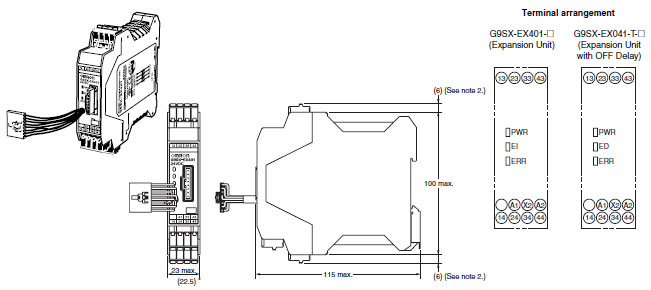

G9SX-EX401-[]
Expansion Unit (OFF-delayed Model)
G9SX-EX041-T-[]
![G9SX-EX041-T-[]_Dim](img/d40a_g9sx-ns_dm_4.jpg)
Note:
1. Above outline drawing is for models with spring-cage terminals (-RC).
2. For models with spring-cage terminals (-RC) only.
*Typical dimension
Caution: All units are in millimeters unless otherwise indicated.
