OS32C

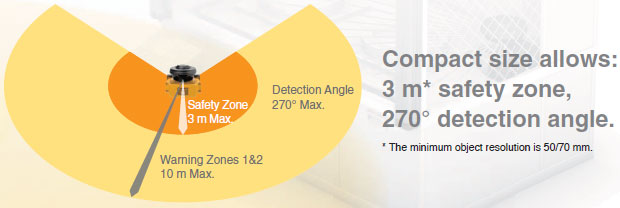

Compact (104.5 mm), lightweight (1.3 kg) and easy-to-install Safety Laser Scanner
Data Sheet (4498KB)
Quick links to 'OS32C' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Flexible zone configurations (Industry Best)
For complex AGV applications, up to 70 combinations - each with one safety zone and two warning zones - can be set. The two warning zones can be set to support various purposes such as warning sound and speed control.
Simplified Wiring
OMRON STI's innovative I/O method requires fewer inputs when configuring multiple zones. Only 4 inputs are required to select from 6 zone sets.
If all 8 inputs are used, up to 70 zone sets are available.
Operating state can be determined at a glance

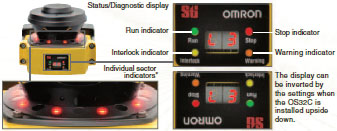

Eight sector indicators* show the direction of intrusion.
Front display shows operating state and error codes.
*US patent No. for individual sector indicators: US 6,753,776 B2
Integrated management via Ethernet (Industry First)
Industry's first Ethernet-compliant Safety Laser Scanner allows the user to check operating state and analyze the cause of an emergency stop via LAN even in large-scale applications using multiple scanners.
*Multiple OS32Cs cannot be monitored simultaneously.
New convenient and easy-to-use functions
Replacable sensor, no reprogramming needed (NEW)
No reprogramming needed, the configuration is stored in the I/O block. Replacing a damaged sensor is fast and easy.
Reference Boundary Monitoring function (NEW)

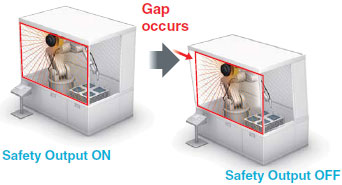

The OS32C constantly monitors reference points and turns OFF the safety outputs when a shift in its position is detected.
(Per international standard IEC 61496-3, area scanners used in applications where the angle of approach exceeds +/- 30 degrees with respect to the detection plane, must use RBM in the detection zone.)
Cable Access Options

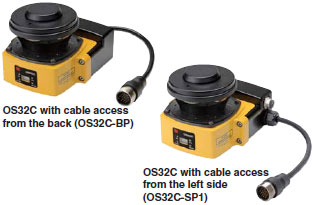

To tailor the OS32C to your installation, two options are available for the location of the power and ethernet connections:
OS32C-BP (Cable access from the back)
OS32C-SP1 (Cable access from the left side)
These can be selected according to the needs of AGV or facilities design.
Easy configuration of complex zones
The configuration of the safety zone and warning zones can be done in real time using a PC. Configurations can also be created or modified offline.
Response time can be set from 80 ms to 680 ms
Response time adjustment can filter out erroneous detections (machine stoppage) caused by pollutants in the environment.
Provides Safety Category 3 safety circuit without a dedicated controller
Compliant to global safety standards
Operating Theory of OS32C
The OS32C uses time-of-flight (TOF) measurement to determine distance. The scanner emits a laser pulse, when the pulse hits an object the signal is reflected to the scanner. The OS32C then compares the distance/position of the object against the defined safety zone.
