High-temperature Basic Switch

TZ

Stable Operation at an Ambient Temperature of 400°C

Data Sheet (135KB)

Related Contents

Quick links OMRON IA Basic Switches in your country.

Europe
- Austria
- Belgium
- Czech Republic
- Denmark
- Finland
- France
- Germany
- Hungary
- Italy
- Latvia
- Lithuania
- Netherlands
- Norway
- Poland
- Portugal
- Russia
- Spain
- Sweden
- Switzerland
- Turkey
- United Kingdom

Middle East
Please contact OMRON Europe B.V. in Netherlands.
- Europe
Africa
- South Africa

Greater China
- China
- Taiwan
Asia-Pacific
- Australia
- India
- Indonesia
- Malaysia
- New Zealand
- Philippines
- Singapore
- Thailand
- Vietnam

Japan / Korea
- Japan
- Korea
Americas

Primary Contents

Dimensions and Operating Characteristics

Pin Plunger

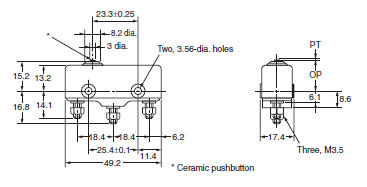

TZ-1G

TZ-1G_Dim

TZ_Operating characteristics1

Hinge Lever

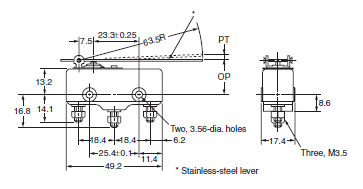

TZ-1GV

TZ-1GV_Dim

TZ_Operating characteristics2

Short Hinge Roller Lever

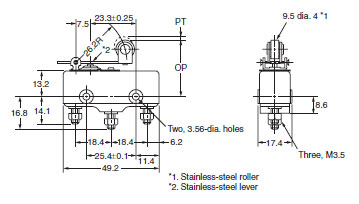

TZ-1GV22

TZ-1GV22_Dim

TZ_Operating characteristics3

Hinge Roller Lever

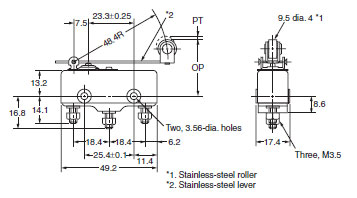

TZ-1GV2

TZ-1GV2_Dim

TZ_Operating characteristics4

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified.

Caution: All units are in millimeters unless otherwise indicated.
