D4C

Switches

Standard Models

Pin Plunger
D4C-[][]01

Roller Plunger

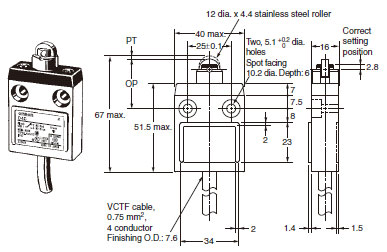

D4C-[][]02

Crossroller Plunger
D4C-[][]03

Roller Lever
D4C-[][]20
D4C-[][]20-P

Roller Lever (High-Sensitivity Model)

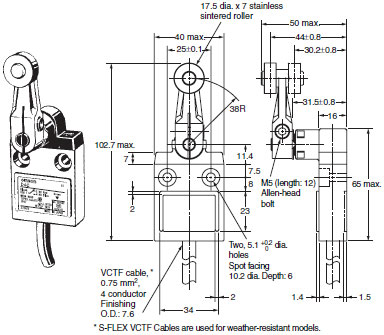

D4C-[][]24
D4C-[][]24-P

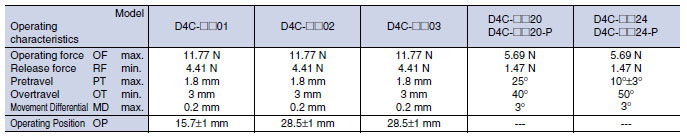

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Sealed Plunger
D4C-[][]31

Sealed Roller Plunger

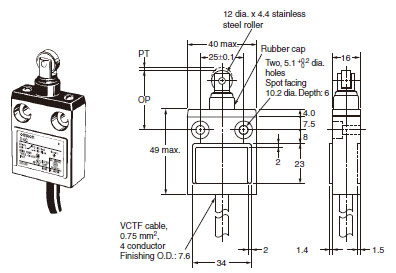

D4C-[][]32

Sealed Crossroller Plunger

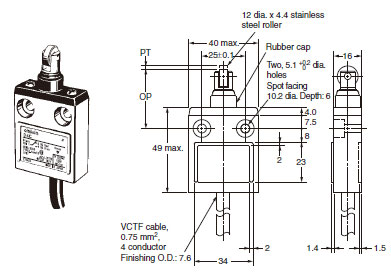

D4C-[][]33

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

* The TT is a reference value.

Plastic rod

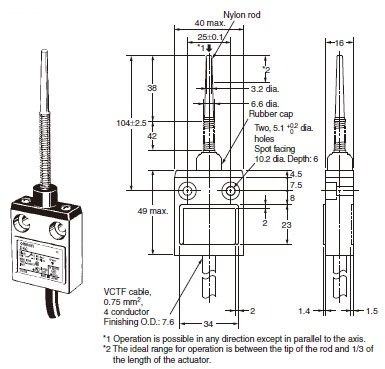

D4C-[][]50

Center Roller Lever Plunger

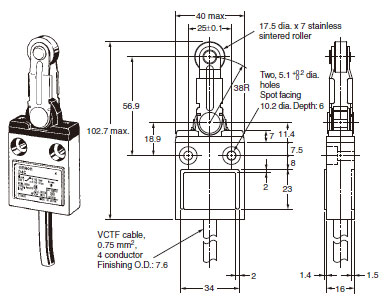

D4C-[][]60

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Models with LED Indicator

The dimensions of the LED indicator for models equipped with one are shown below.

Pre-wired Models

Pin Plunger
D4C-[]001-[]K1EJ[]
D4C-[]001-M1J[]

Roller Plunger
D4C-[]002-[]K1EJ[]
D4C-[]002-M1J[]

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: Specifications are the same for -M1J Switches.

Sealed Pin Plunger

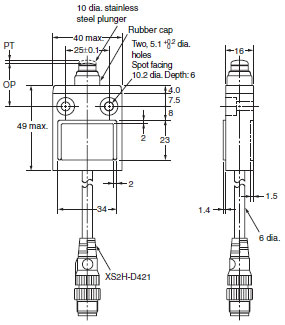

D4C-[]031-[]K1EJ[]
D4C-[]031-M1J[]

Sealed Roller Plunger

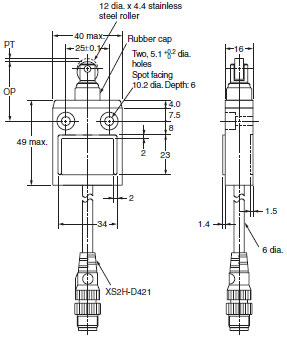

D4C-[]032-[]K1EJ[]
D4C-[]032-M1J[]

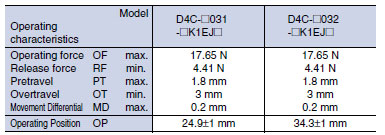

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: Specifications are the same for -M1J Switches

Roller Lever (High-sensitivity Model)

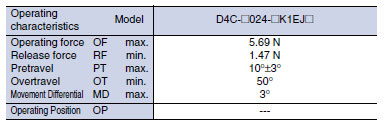

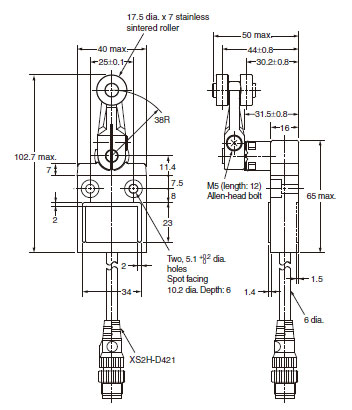

D4C-[]024-[]K1EJ[]
D4C-[]024-M1J[]

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Note: Specifications are the same for -M1J Switches

Weather-resistant Models

Adjustable Roller Lever

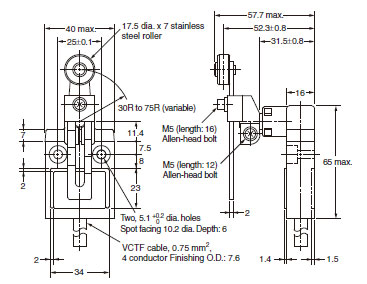

D4C-[][]27-P

Adjustable Rod Lever

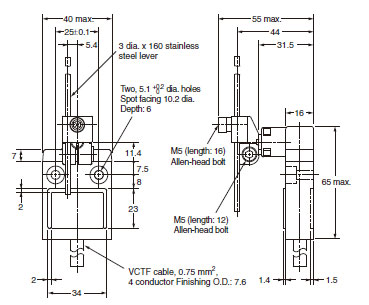

D4C-[][]29-P

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

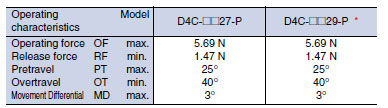

* Operation characteristics for the D4C-[][]27-P and D4C-[][]29-P are for a lever length of 38 mm.
