D4MC

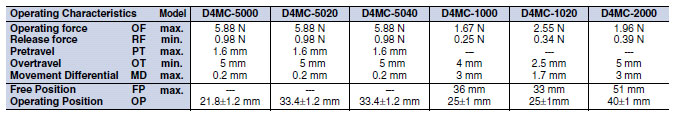

Dimensions and Operating Characteristics

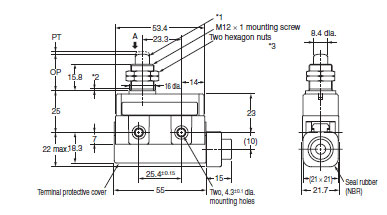

Panel Mount Plunger
D4MC-5000

*1. Stainless steel plunger
*2. The length of the imperfect threads is 1.5 mm maximum.
*3. Thickness: 3 width: 17

Note: Do not use the M12 mounting screw and the case mounting hole at the same time.

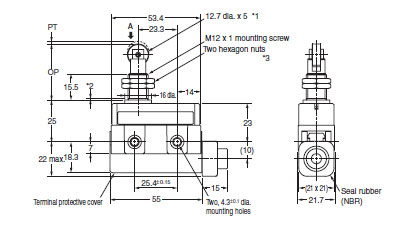

Panel Mount Roller Plunger
D4MC-5020

*1. Stainless steel plunger
*2. The length of the imperfect threads is 1.5 mm maximum.
*3. Thickness: 3 width: 17

Note: Do not use the M12 mounting screw and the case mounting hole at the same time.

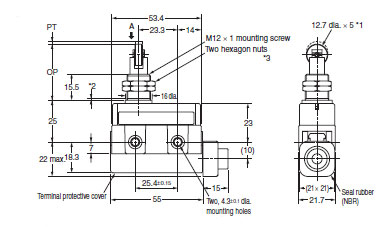

Panel Mount Crossroller Plunger
D4MC-5040

*1. Stainless steel plunger
*2. The length of the imperfect threads is 1.5 mm maximum.
*3. Thickness: 3 width: 17

Note: Do not use the M12 mounting screw and the case mounting hole at the same time.

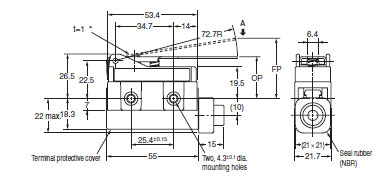

Hinge Lever
D4MC-1000

* Stainless steel lever

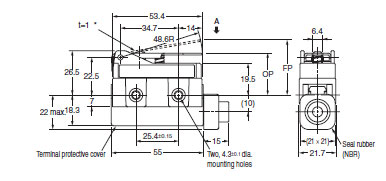

Short Hinge Lever
D4MC-1020

* Stainless steel lever

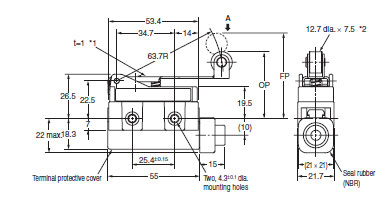

Hinge Roller Lever
D4MC-2000

*1. Stainless steel lever
*2. Plastic roller

Note:
1. Unless otherwise specified, a tolerance of±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
3. Make sure that the permissible OT position is not exceeded.

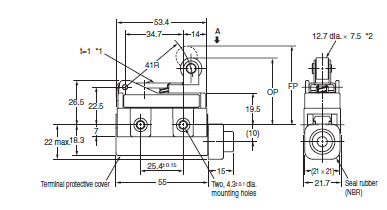

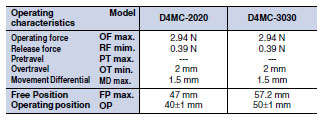

Short Hinge Roller Lever
D4MC-2020

*1. Stainless steel lever
*2. Plastic roller

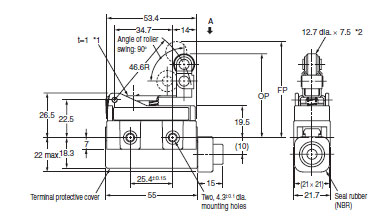

One-way Action Short Hinge Roller Lever
D4MC-3030

*1. Stainless steel lever
*2. Plastic roller

Note:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
3. Make sure that the permissible OT position is not exceeded.
