E39-L / F39-L / E39-S / E39-R
Wide Variations of Mounting Brackets, Slits and Reflectors
Data Sheet (1946KB)
Quick links OMRON IA Photoelectric Sensors in your country.
-
- Middle East
-
Please contact our European headquarters.
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Mounting Bracket Dimensions

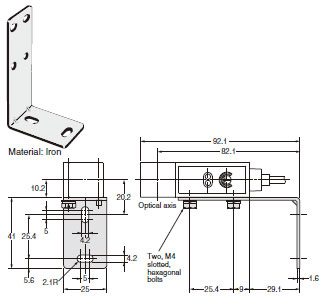

E39-L2

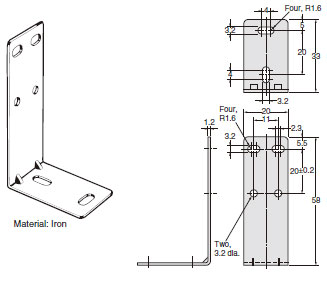

E39-L4

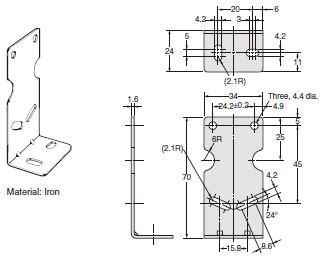

E39-L5

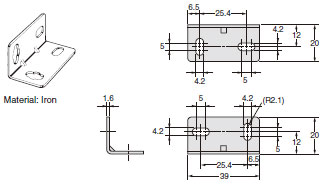

E39-L6

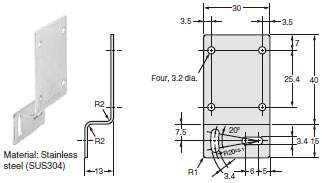

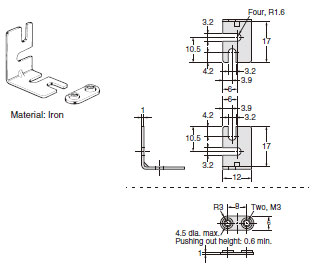

E39-L31

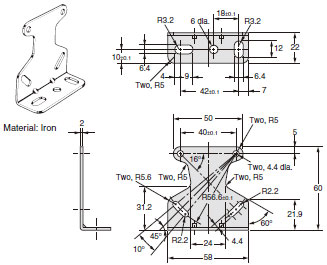

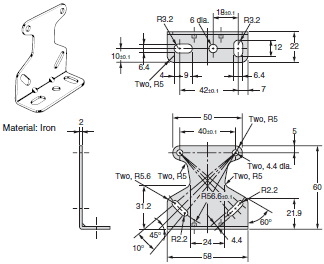

E39-L40

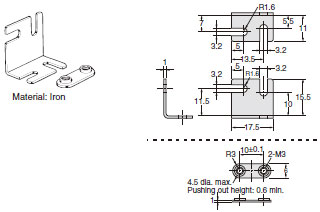

E39-L41
E39-L42
E39-L43
E39-L44
E39-L51

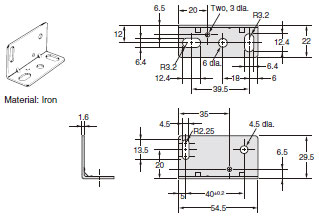

E39-L53

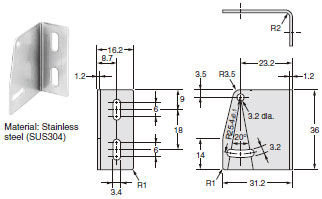

E39-L54V

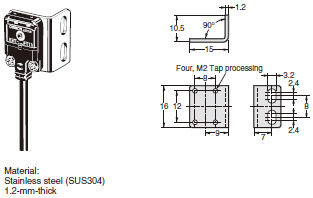

E39-L69
E39-L70
E39-L83
E39-L85
E39-L86
E39-L87

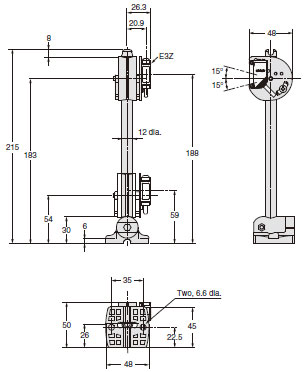

E39-L93FH
E39-L93FV
E39-L93H

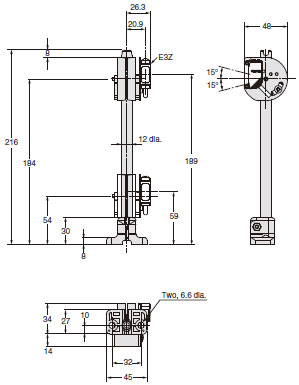

E39-L93V

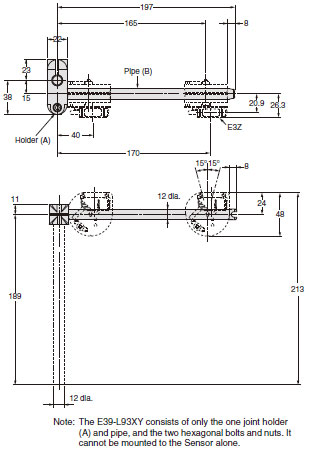

E39-L93XY
E39-L94
E39-L96
E39-L97

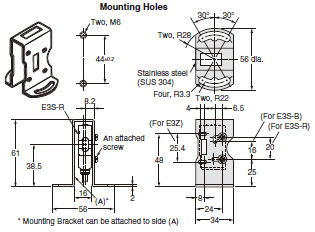

E39-L98

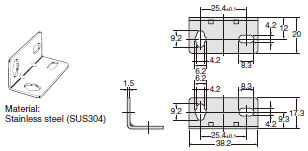

E39-L102

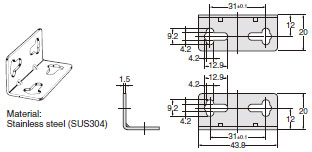

E39-L103

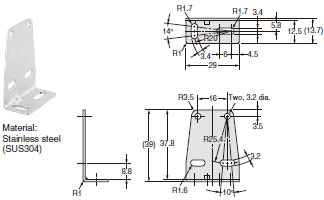

E39-L104

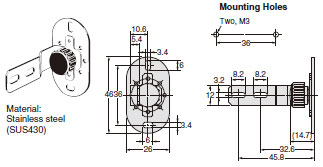

E39-L109

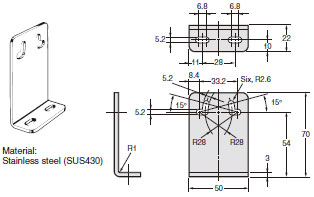

E39-L114
E39-L115

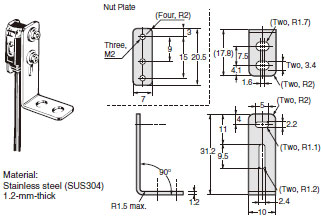

E39-L116

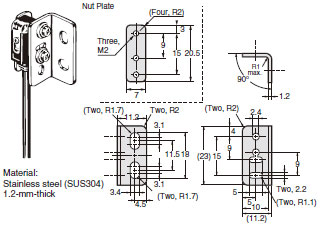

E39-L117

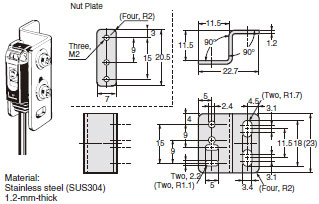

E39-L118
E39-L119

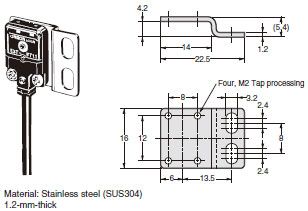

E39-L120

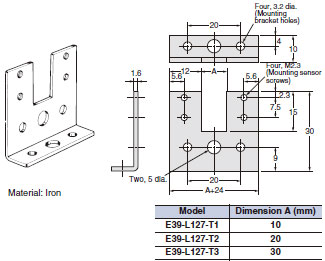

E39-L127-T1, E39-L127-T2, E39-L127-T3

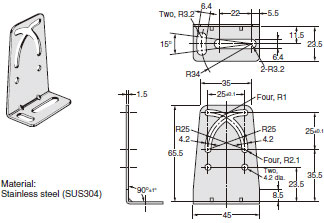

E39-L131
E39-L132

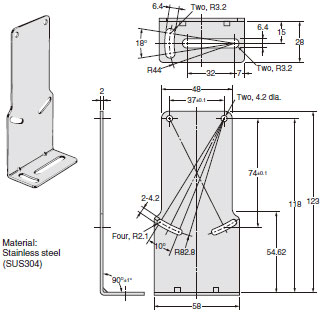

E39-L135

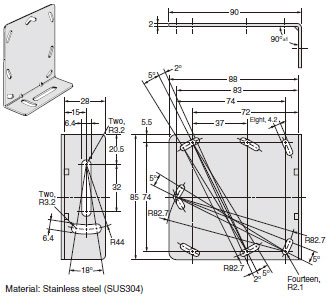

E39-L136

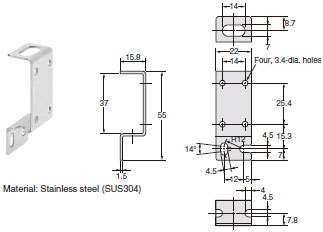

E39-L142

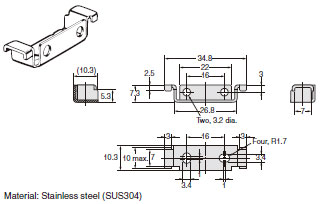

E39-L143

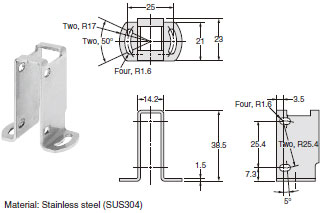

E39-L144

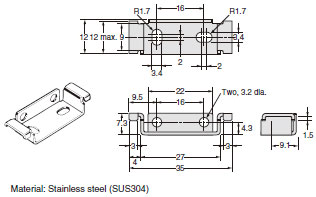

E39-L148

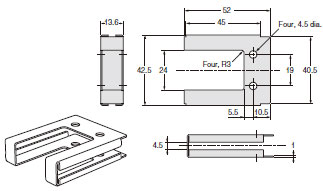

E39-L149

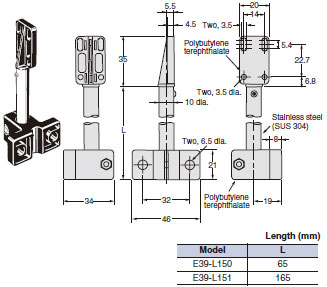

E39-L150, E39-L151
E39-L153
F39-L1

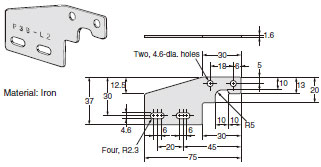

F39-L2
F39-L3

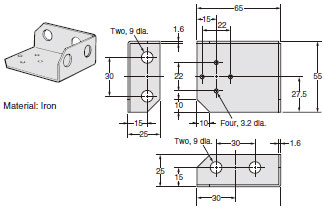

F39-L4
C Type (Receiver, Top)

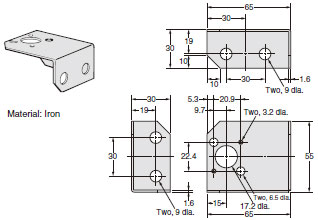

F39-L4
D Type (Receiver, Bottom)

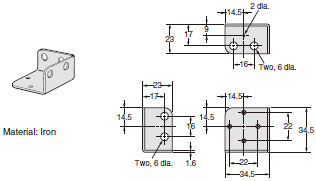

F39-L5
A Type (Emitter, Top)
F39-L5
B Type (Emitter, Bottom)

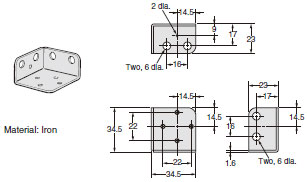

F39-L5
C Type (Receiver, Top)
F39-L5
D Type (Receiver, Bottom)

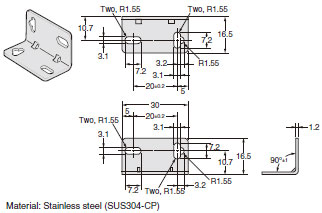

F39-L9

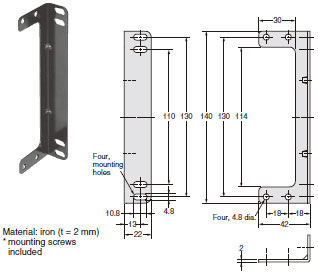

F39-L10 (L-shaped)

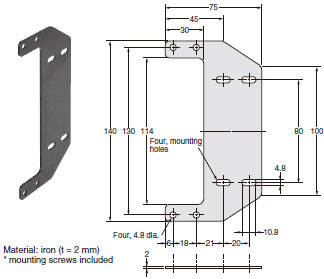

F39-L11 (Flat)

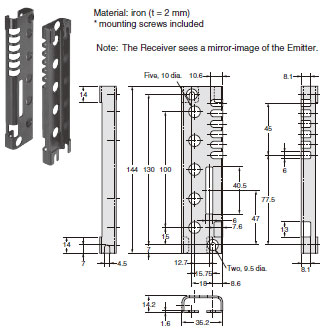

F39-L12 (Receiver)
Contact Mounting Plate
E39-L60
Reflector dimensions
E39-R1, E39-R1S, E39-R1K*

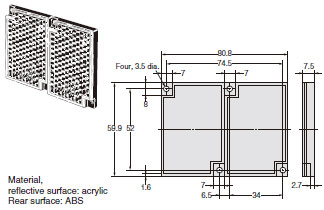

E39-R2

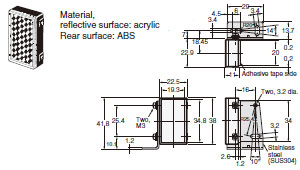

E39-R3
E39-R4
E39-R6
E39-R9
E39-R10
E39-R37-CA
Retroreflector for E3ZM-B

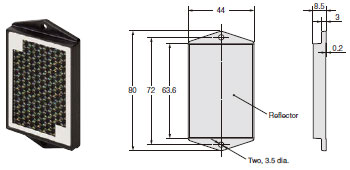

E39-RP1
E39-RS1
E39-RS1-CA
E39-RS2
E39-RS2-CA
E39-RS3
E39-RS3-CA
E39-R12/R14
E39-R13
E39-RS4
E39-RS5
Sensitivity Adjuster
E39-G1
Sensitivity Adjustment Driver
E39-G2
Protective Cover

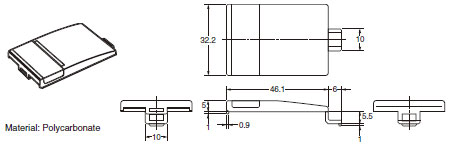

E39-G9
Lens Unit
E39-F1V
Connection Sockets
Front Connection Socket

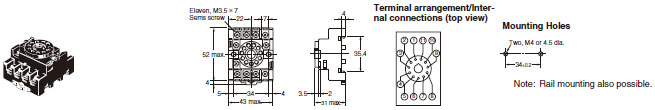

PF113A
Front Connection Socket

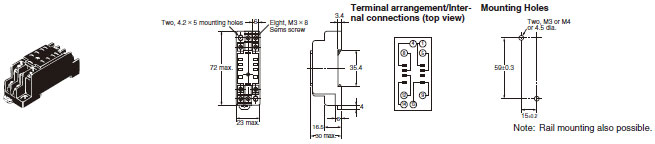

PYF08A
Front Connection Socket

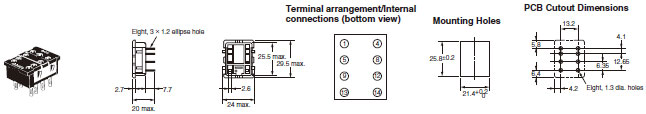

PY08
Caution: All units are in millimeters unless otherwise indicated.
