EE-SA701 / 801

Pushbutton-type Photomicrosensor

EE-SA701 / 801

Using a pushbutton enables accurately detecting difficult-to-detect objects.

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

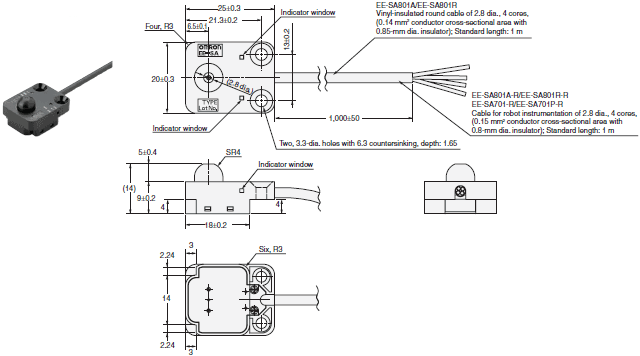

Sensor

EE-SA801A/-SA801A-R
EE-SA801R/-SA801R-R
EE-SA701-R
EE-SA701P-R

EE-SA701 / 801 Dimensions 3
