H3CR-A

Solid-state Multi-functional Timers

H3CR-A

Multiple Operating Modes and Multiple Time Ranges. DIN 48 x 48-mm Multifunctional Timer.

Caution: All units are in millimeters unless otherwise indicated.

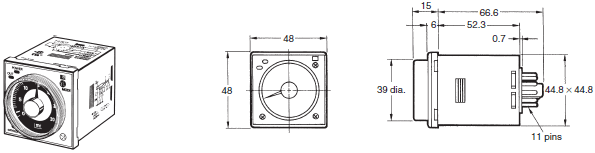

H3CR-A
H3CR-AP
H3CR-AS
H3CR-A-301

H3CR-A Dimensions 1

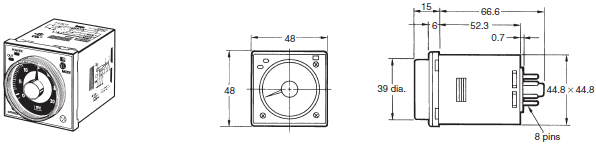

H3CR-A8
H3CR-A8S
H3CR-A8E
H3CR-A8-301

H3CR-A Dimensions 2

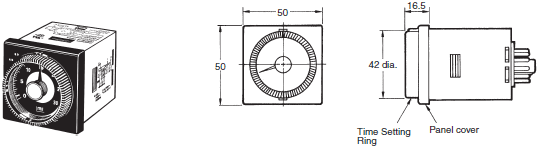

Dimensions with Set Ring
Y92S-27/-28 (Order Separately)

H3CR-A Dimensions 3

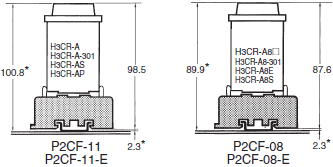

Dimensions with Front Connecting Socket
P2CF-08-[]/P2CF-11-[]

H3CR-A Dimensions 4

Note: There are no restrictions to the mounting direction.
* These dimensions vary with the kind of DIN track (reference value).

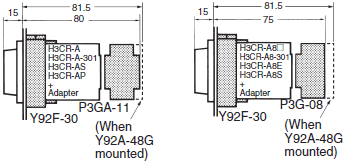

Dimensions with Back Connecting Socket
P3G-08/P3GA-11

H3CR-A Dimensions 5
