CP-series CP1E CPU Units

CP1E

Cost-effective CP1E with Enhanced Expandability for Analog and Temperature Control

Caution: All units are in millimeters unless otherwise indicated.

CP1E CPU Unit

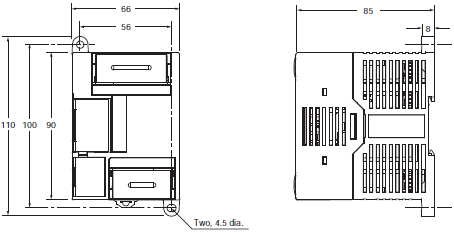

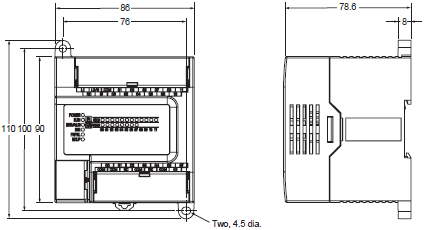

CPU Units with 10 I/O Points

CP1E Dimensions 2

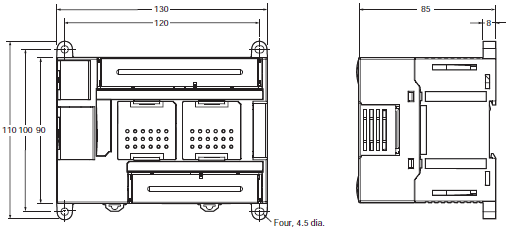

CPU Units with 14 or 20 I/O Points

CP1E-[]14/20D[][]-[]

CP1E Dimensions 4

CP1E-[]14/20SD[][]-[]

CP1E Dimensions 5

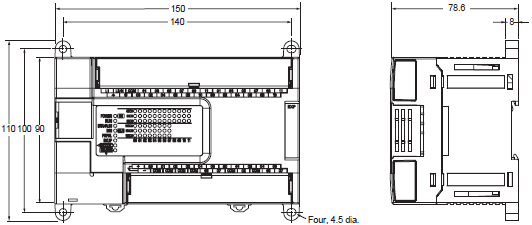

CPU Units with 30 I/O Points
CPU Units with 20 I/O Points and Built-in Analog

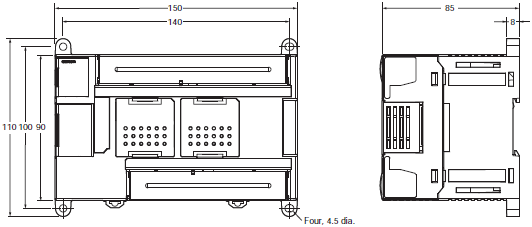

CP1E-[]30D[][]-[], CP1E-NA20D[]-[]

CP1E Dimensions 7

CP1E-[]30S(1)D[][]-[]

CP1E Dimensions 8

CPU Units with 40 I/O Points

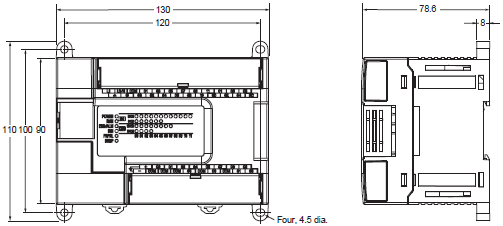

CP1E-[]40D[][]-[]

CP1E Dimensions 10

CP1E-[]40S(1)D[][]-[]

CP1E Dimensions 11

CPU Units with 60 I/O Points

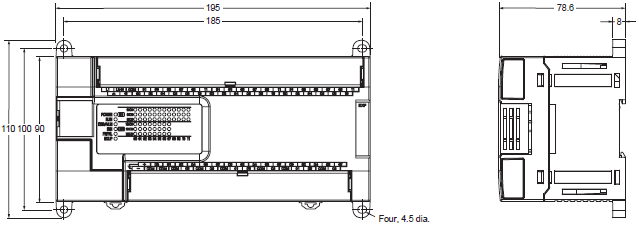

CP1E-N60D[]-[]

CP1E Dimensions 13

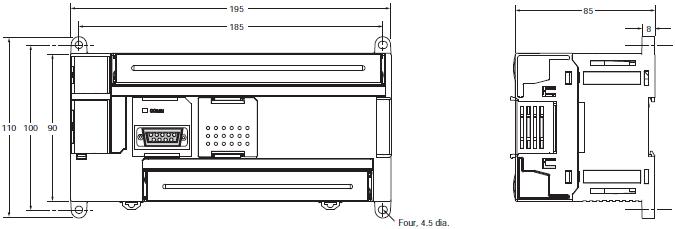

CP1E-[]60S(1)D[][]-[]

CP1E Dimensions 14

Expansion I/O Units and Expansion Units

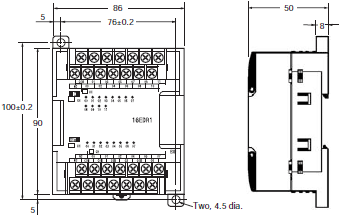

CP1W-8E[][]/CP1W-SRT21

CP1E Dimensions 16

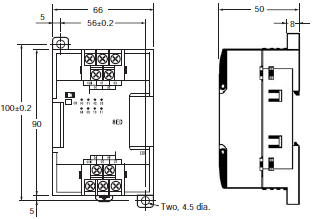

CP1W-20ED[]/CP1W-16E[][]/CP1W-AD04[]/CP1W-DA021/CP1W-DA04[]/CP1W-MAD[][]/ CP1W-TS[][]1/[][]2/[][]3

CP1E Dimensions 17

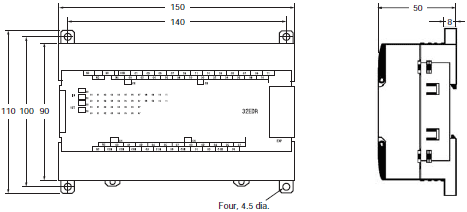

CP1W-40ED[]/CP1W-32E[][]/CP1W-TS004

CP1E Dimensions 18
