Z

General-purpose Basic Switch

Z

Best-selling Basic Switch Boasting High Precision and Wide Variety

Caution: All units are in millimeters unless otherwise indicated.

Mounting

Use M4 screws with plane washers and spring washers to mount the Switch. Tighten each mounting screw securely to a torque of 1.18 to 1.47 Nm.

Z Dimensions 1

When mounting the Switch to a panel, use a tightening torque of 2.94 to 4.9 Nm for the hexagonal nuts on the actuator.

Z Dimensions 2

Basic Models (General-purpose) and Split-contact Models

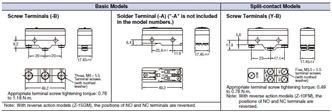

Terminals

Z Dimensions 4

The models, illustrations, and graphics are for screw-terminal models (-B). The "-A" at the end of the model number for solder terminal models has been omitted. For details of the terminals, see above.

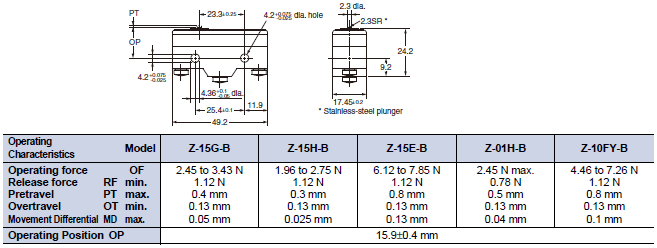

Pin Plunger
Z-15G-B, Z-15E-B
Z-15H2-B, Z-01H-B
Z-15H-B, Z-10FY-B

Z Dimensions 6

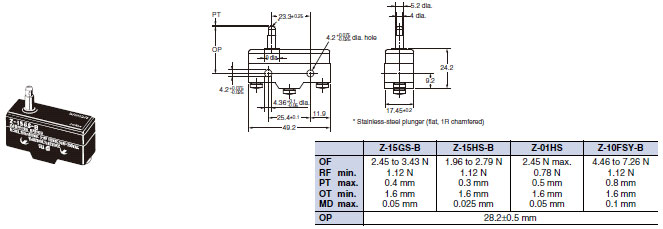

Slim Spring Plunger
Z-15GS-B, Z-01HS-B
Z-15HS-B, Z-10FSY-B

Z Dimensions 7

Short Spring Plunger
Z-15GD-B, Z-01HD-B
Z-15HD-B, Z-10FDY-B
Z-15ED-B

Z Dimensions 8

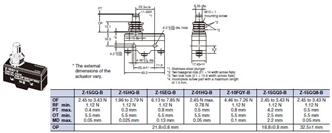

Panel Mount Plunger
Z-15GQ-B, Z-01HQ-B
Z-15HQ-B, Z-10FQY-B
Z-15EQ-B, Z-15GQ3-B *
Z-15GQ8-B *

Z Dimensions 9

Note: 1. Do not use the M12 mounting screw and the case mounting hole at the same time, or excessive pulling force will
              be imposed on the switch and the case and cover may be damaged.
           2. On the model Z-15GQ3-B, PT can be set to a value larger than that for the Z-15GQ.
           3. On the model Z-15GQ8-B, operating position can be adjusted by providing a screw in the plunger section.
           4. On the model Z-15GQ8-B, the M3 hole with a depth of 10 mm is a through hole. Take precautions so that no
                water or screw lock agent penetrates into the hole.

Panel Mount Roller Plunger
Z-15GQ22-B, Z-15EQ22-B
Z-15HQ22-B, Z-10FQ22Y-B

Z Dimensions 10

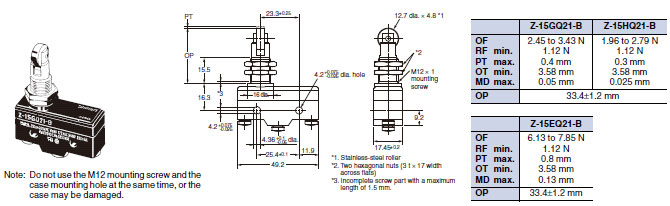

Panel Mount Cross Roller Plunger
Z-15GQ21-B, Z-15EQ21-B
Z-15HQ21-B

Z Dimensions 11

Leaf Spring
Z-15GL-B

Z Dimensions 12

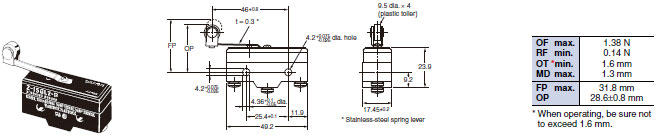

Roller Leaf Spring
Z-15GL2-B

Z Dimensions 13

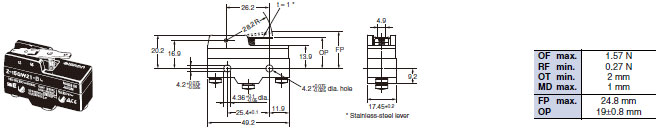

Short Hinge Lever
Z-15GW21-B

Z Dimensions 14

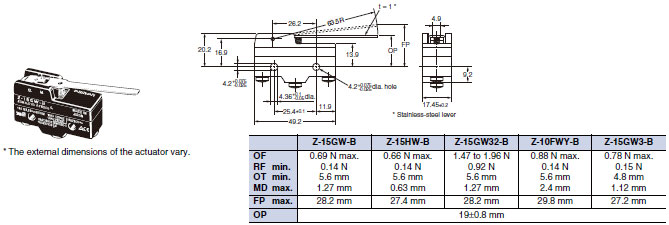

Hinge Lever
Z-15GW-B, Z-15GW32-B
Z-15HW-B, Z-10FWY-B
Z-15GW3-B (Lever Length: 56R) *

Z Dimensions 15

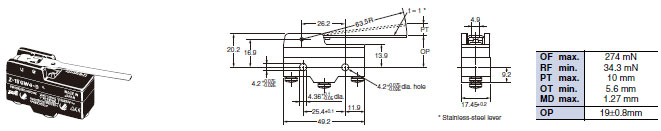

Low-force Hinge Lever
Z-15GW4-B

Z Dimensions 16

Z-15HW24-B

Z Dimensions 17

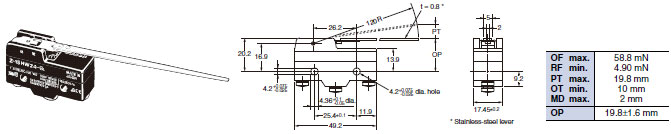

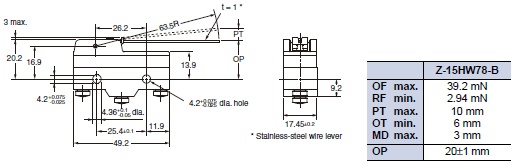

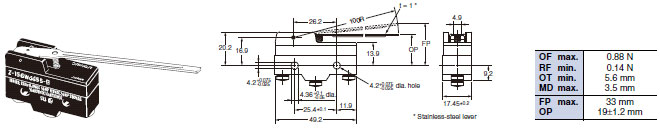

Low-force Wire Hinge Lever
Z-15HW52-B
Z-15HW78-B (Lever Length: 110R) *

Z Dimensions 18

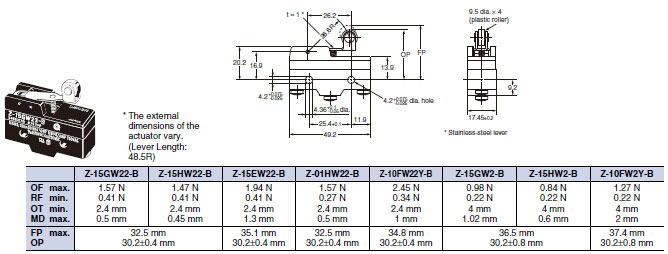

Short Hinge Roller Lever
Z-15GW22-B, Z-01HW22-B
Z-15HW22-B, Z-10FW22Y-B
Z-15EW22-B
Z-15GW2-B *, Z-15HW2-B *
Z-10FW2Y-B *

Z Dimensions 19

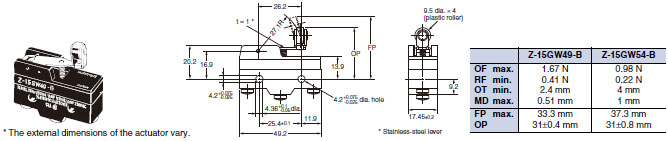

Short Hinge Cross Roller Lever
Z-15GW49-B
Z-15GW54-B (Lever Length: 48.7R) *

Z Dimensions 20

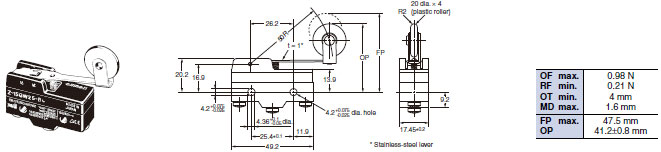

Hinge Roller Lever
Z-15GW25-B

Z Dimensions 21

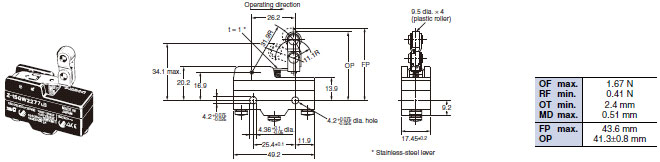

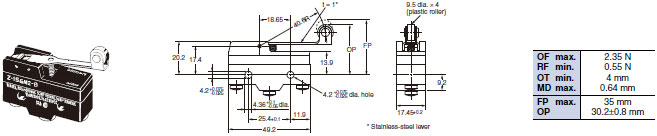

Unidirectional Short Hinge Roller Lever
Z-15GW2277-B

Z Dimensions 22

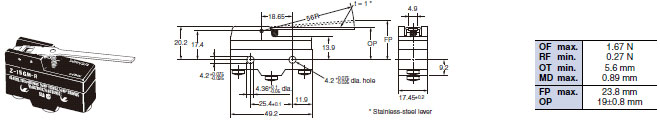

Reverse Hinge Lever **
Z-15GM-B

Z Dimensions 23

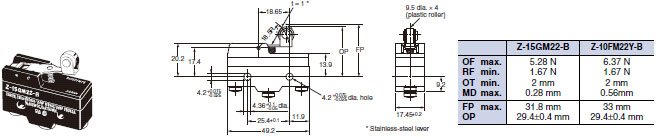

Reverse Short Hinge Roller Lever **
Z-15GM22-B
Z-10FM22Y-B

Z Dimensions 24

Reverse Hinge Roller Lever **
Z-15GM2-B

Z Dimensions 25

** The pin plungers of reverse-type models are continuously pressed by the actuator levers with compression coil
    springs and the pin plungers are freed by operating the levers. Reverse-type models are highly vibration- and shock-
    resistive because the pin plungers are normally pressed.

Basic Models (Drip-proof) without Terminal Protective Cover

Terminals

Without Terminal Protective Cover

Z Dimensions 29

Note: With reverse action models (Z-15GM), the positions of NO and NC terminals are reversed.

The above illustration is for model without terminal protective cover.

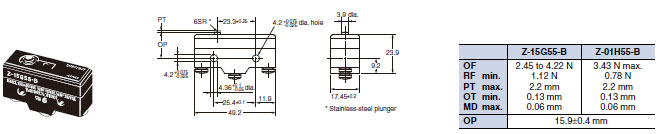

Pin Plunger
Z-15G55-B
Z-01H55-B

Z Dimensions 31

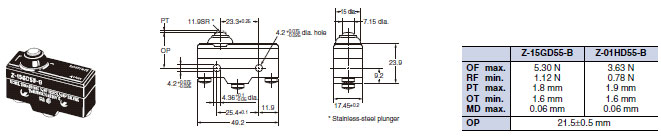

Short Spring Plunger
Z-15GD55-B
Z-01HD55-B

Z Dimensions 32

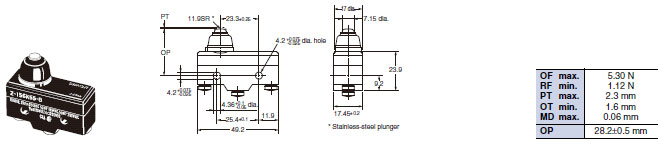

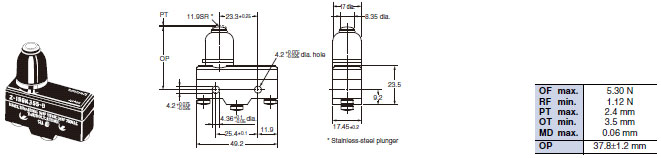

Spring Plunger
Z-15GK55-B

Z Dimensions 33

Z-15GK355-B

Z Dimensions 34

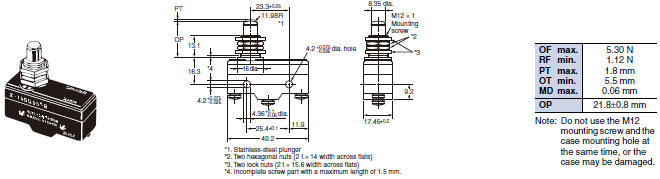

Panel Mount Plunger
Z-15GQ55-B

Z Dimensions 35

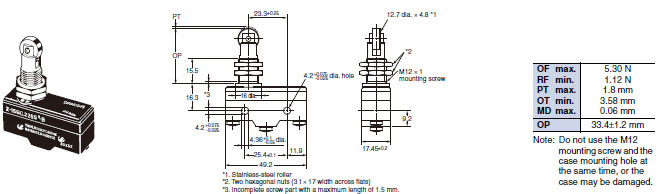

Panel Mount Roller Plunger
Z-15GQ2255-B

Z Dimensions 36

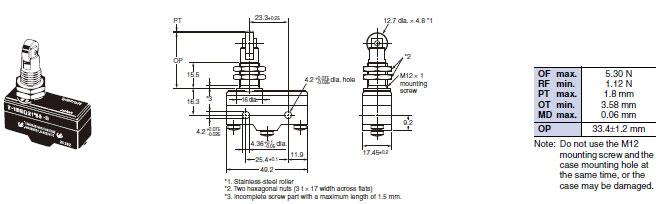

Panel Mount Cross Roller Plunger
Z-15GQ2155-B

Z Dimensions 37

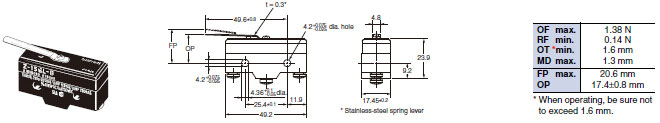

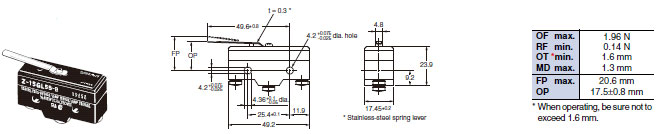

Leaf Spring
Z-15GL55-B

Z Dimensions 38

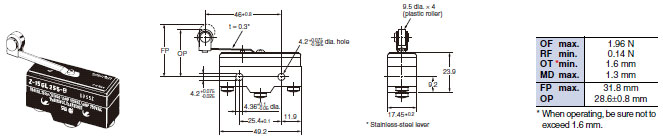

Roller Leaf Spring
Z-15GL255-B

Z Dimensions 39

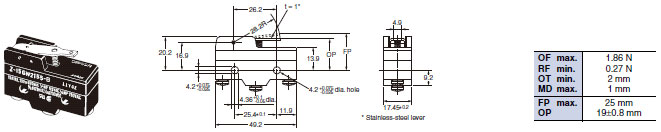

Short Hinge Lever
Z-15GW2155-B

Z Dimensions 40

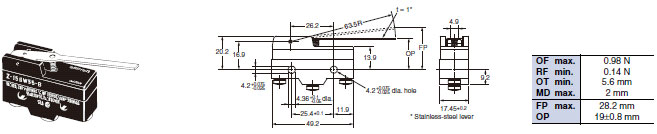

Long Hinge Lever
Z-15GW4455-B

Z Dimensions 41

Hinge Lever
Z-15GW55-B

Z Dimensions 42

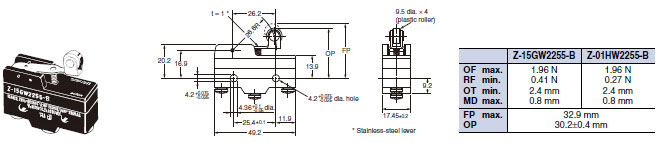

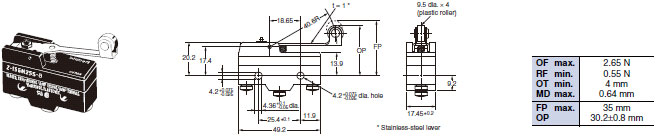

Short Hinge Roller Lever
Z-15GW2255-B
Z-01HW2255-B

Z Dimensions 43

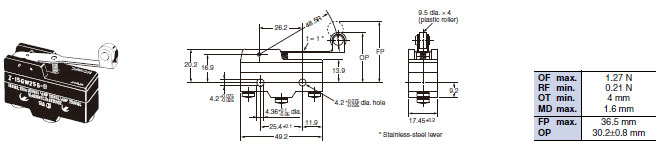

Hinge Roller Lever
Z-15GW255-B

Z Dimensions 44

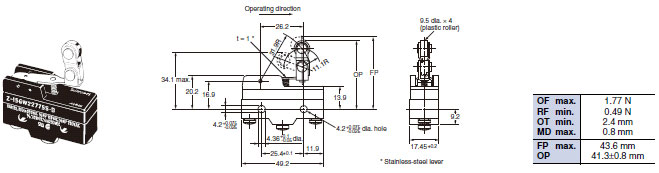

Unidirectional Short Hinge Roller Lever
Z-15GW227755-B

Z Dimensions 45

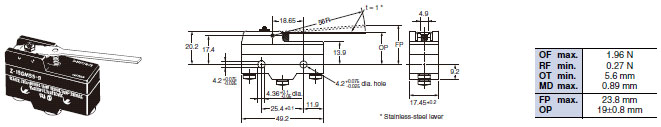

Reverse Hinge Lever *
Z-15GM55-B

Z Dimensions 46

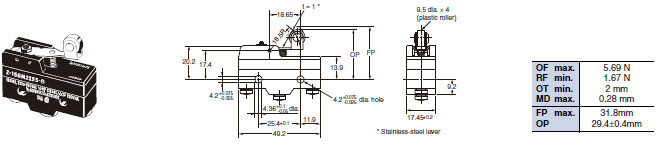

Reverse Short Hinge Roller Lever *
Z-15GM2255-B

Z Dimensions 47

Reverse Hinge Roller Lever *
Z-15GM255-B

Z Dimensions 48

* The pin plungers of reverse-type models are continuously pressed by the actuator levers with compression coil springs
  and the pin plungers are freed by operating the levers.

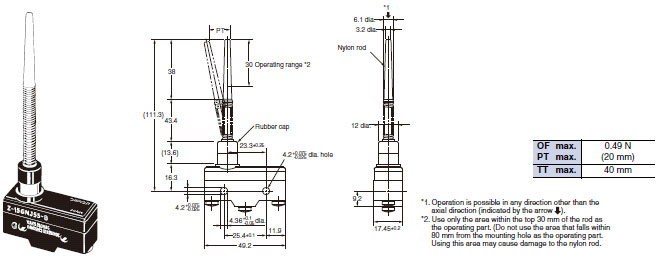

Flexible Rod (Coil Spring)
Z-15GNJ55-B

Z Dimensions 50

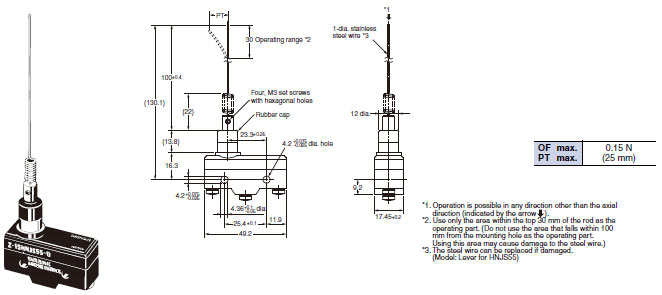

Flexible Rod (Steel Wire)
Z-15HNJS55-B

Z Dimensions 51

Basic Models (Drip-proof) with Terminal Protective Cover

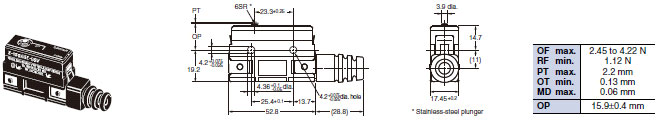

Pin Plunger
Z-15GA55-B5V

Z Dimensions 53

Z-15GK3A55-B5V

Z Dimensions 54

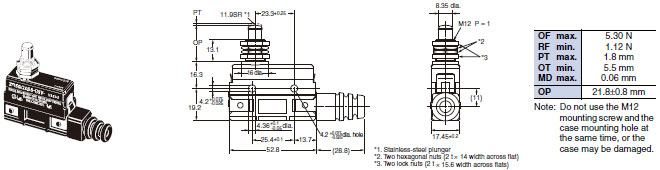

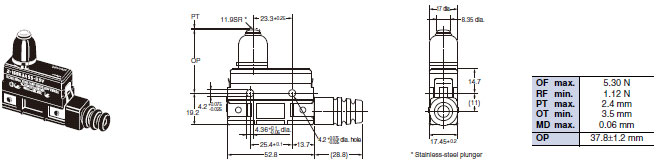

Panel Mount Plunger
Z-15GQA55-B5V

Z Dimensions 55

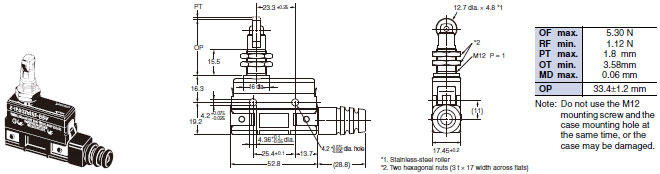

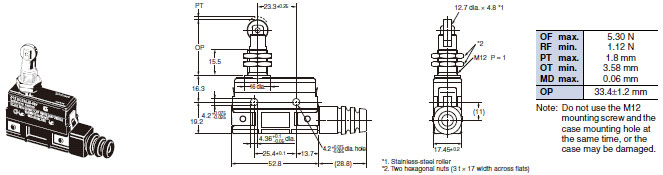

Panel Mount Roller Plunger
Z-15GQ22A55-B5V

Z Dimensions 56

Panel Mount Cross-roller Plunger
Z-15GQ21A55-B5V

Z Dimensions 57

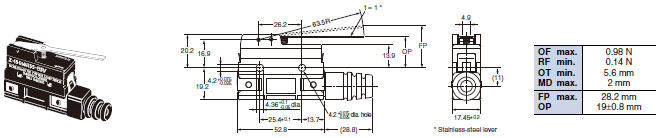

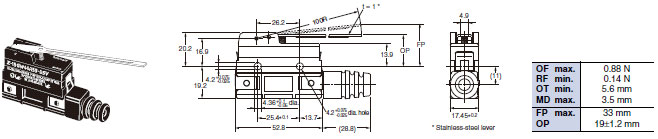

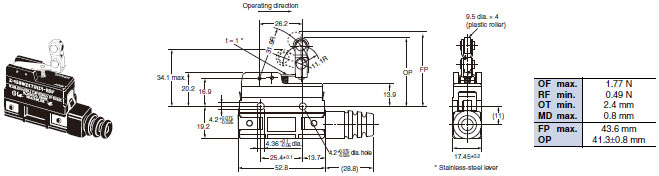

Long Hinge Lever
Z-15GW44A55-B5V

Z Dimensions 58

Hinge Lever
Z-15GWA55-B5V

Z Dimensions 59

Short Hinge Roller Lever
Z-15GW22A55-B5V

Z Dimensions 60

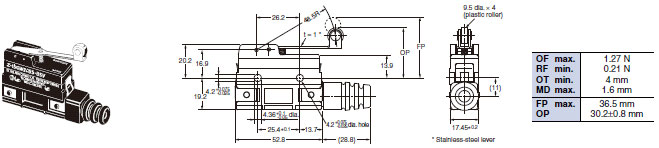

Hinge Roller Lever
Z-15GW2A55-B5V

Z Dimensions 61

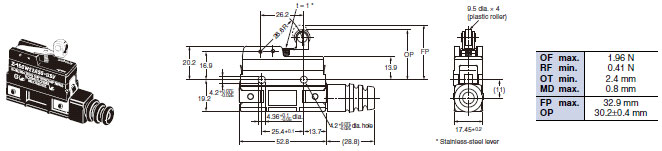

Unidirectional Short Hinge Roller Lever
Z-15GW2277A55-B5V

Z Dimensions 62

Basic Models (Drop-proof) with Modeled terminals

Molded Terminals

L/R Type (The following illustration is the R type.)

Z Dimensions 65

D Type

Z Dimensions 66

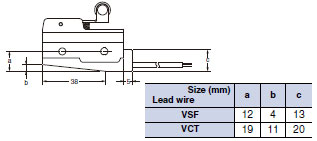

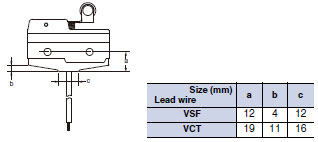

Lead Wire Specifications

Z Dimensions 67

Note: 1. No models with molded terminals are approved by UL, CSA, or EN.
           2. Molded terminals are not available on all models. Contact your OMRON representative for applicable products.

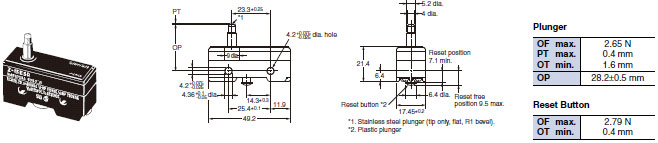

Maintained-contact Models

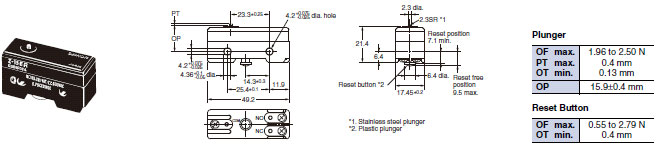

Pin Plunger
Z-15ER

Z Dimensions 69

Slim Spring Plunger
Z-15ESR

Z Dimensions 70

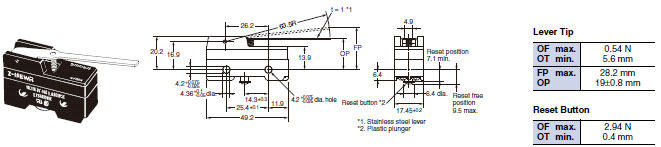

Hinge Lever
Z-15EWR

Z Dimensions 71

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Accessories (Order Separately)

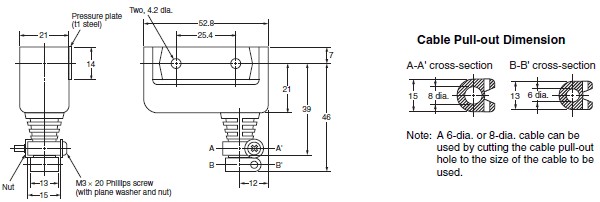

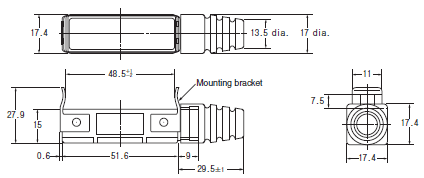

Drip-proof Terminal Cover

AP-DV

Z Dimensions 74

Terminal Covers

AP-A

Soldering Terminal Use (Phenol Resin)

Z Dimensions 77

Note: The Cover has five thin, easy-to-separate portions for easy lead wire connections.

AP-B

Screw Terminal Use (Phenol Resin)

Z Dimensions 79

Note: The Cover has six thin, easy-to-separate portions for easy lead wire connections.

AP1-A

Soldering Terminal Use (Metal Press Mold)

Z Dimensions 81

Note: The Cover has five holes for easy lead wire connections.

AP1-B

Screw Terminal Use (Metal Press Mold)

Z Dimensions 83

Note: The Cover has six holes for easy lead wire connections.

AP-Z

Soldering or Screw Terminal Use (Vinyl Chloride)

Z Dimensions 84

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. (±0.8 mm for the AP-Z)

Separator

SEPARATOR FOR Z

Z Dimensions 87

Note: 1. Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
          2. The material is EAVTC (Epoxide Alkyd Varnished Tetron Cloth) and its heat-resisting temperature is 130°C.

Actuators

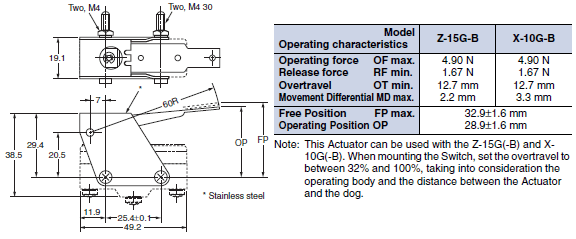

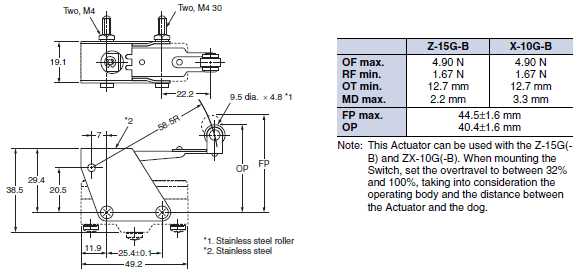

Hinge Lever
XAA-1

Z Dimensions 89

Hinge Roller Lever
ZAA-2

Z Dimensions 90

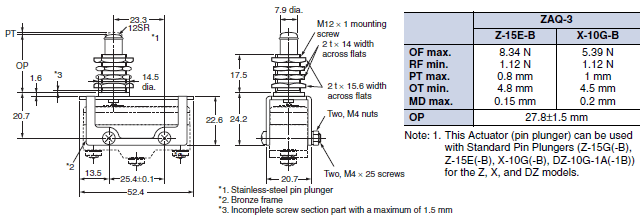

Short Panel Mount Plunger
ZAQ-3

Z Dimensions 91

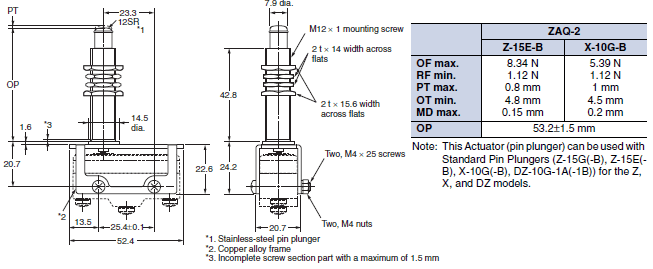

Medium Panel Mount Plunger
ZAQ-2

Z Dimensions 92

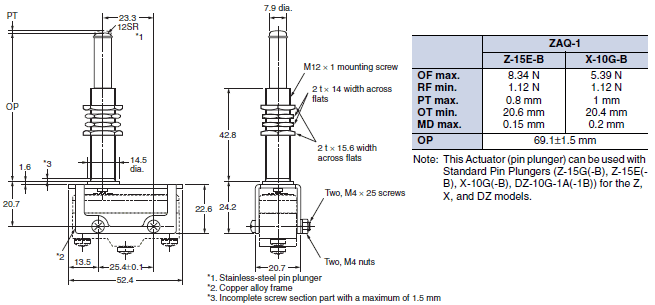

Long Panel Mount Plunger
ZAQ-1

Z Dimensions 93

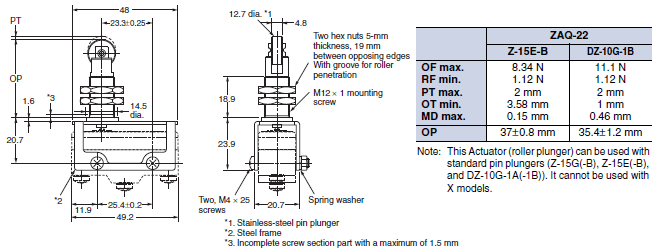

Panel Mount Roller Plunger
ZAQ-22

Z Dimensions 94

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
