E3X-HD

Smart Fiber Sensor

E3X-HD

Surprisingly Stable Detection with Your Finger tip. Exceptionally easy operation and stabilizing technology reduce maintenance cost.

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

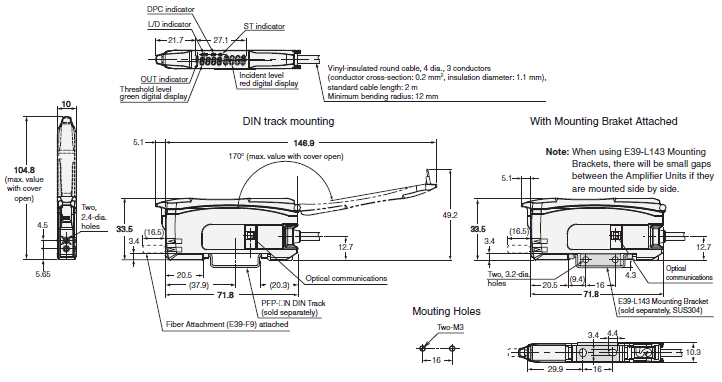

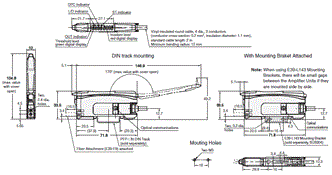

Pre-wired Amplifier Units
E3X-HD11
E3X-HD41

E3X-HD Dimensions 2

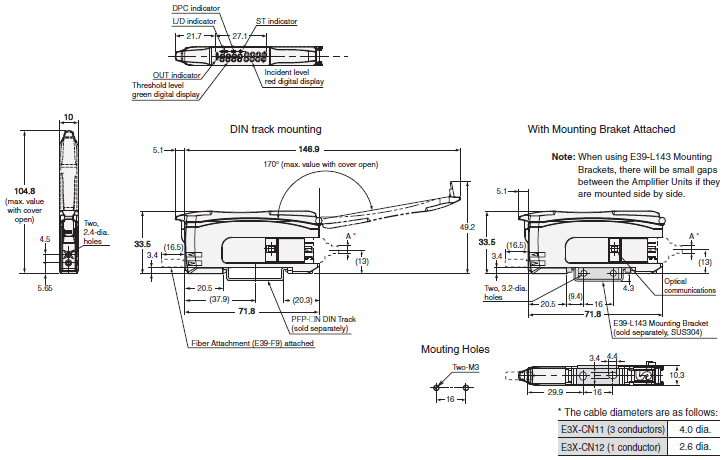

Amplifier Units with Wire-saving Connectors
E3X-HD6
E3X-HD8

E3X-HD Dimensions 3

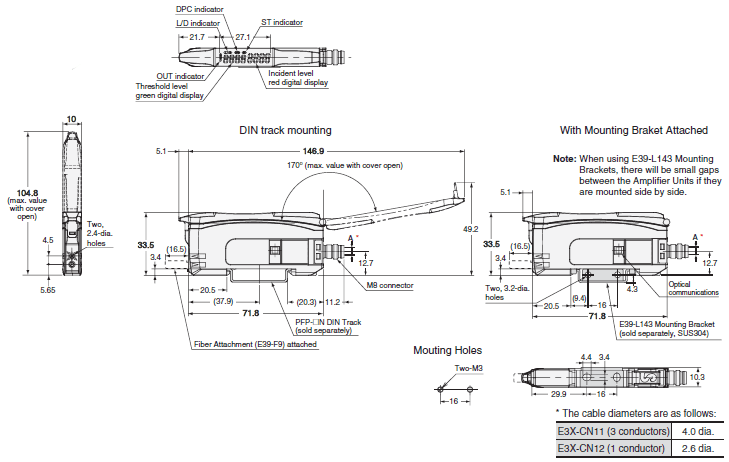

Amplifier Units with M8 Connectors
E3X-HD14
E3X-HD44

E3X-HD Dimensions 4

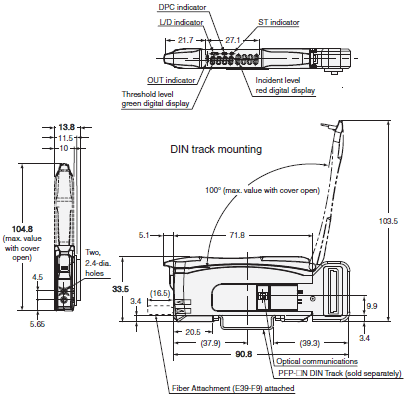

Amplifier Unit with Connector for Sensor Communications Unit
E3X-HD0

E3X-HD Dimensions 5
