FQ2-CH Series

Optical Character Recognition Sensor

FQ2-CH Series

Even if printing is distorted or unclear due to conveyor line conditions, a unique reading method with a built-in dictionary enables stable reading of characters.

(Unit: mm)

Sensor

Integrated Sensor

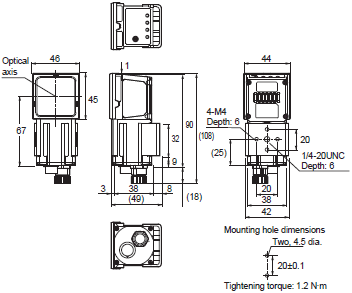

Narrow View
FQ2-CH[][][]10F-M

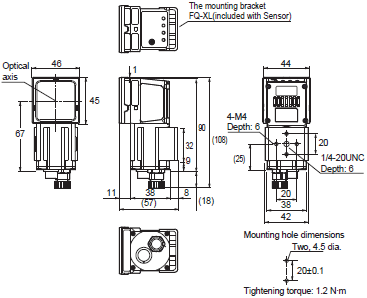

Standard View
FQ2-CH[][][]50F-M

FQ2-CH Series Dimensions 3

Wide View
FQ2-CH[][]100[]-M

FQ2-CH Series Dimensions 4

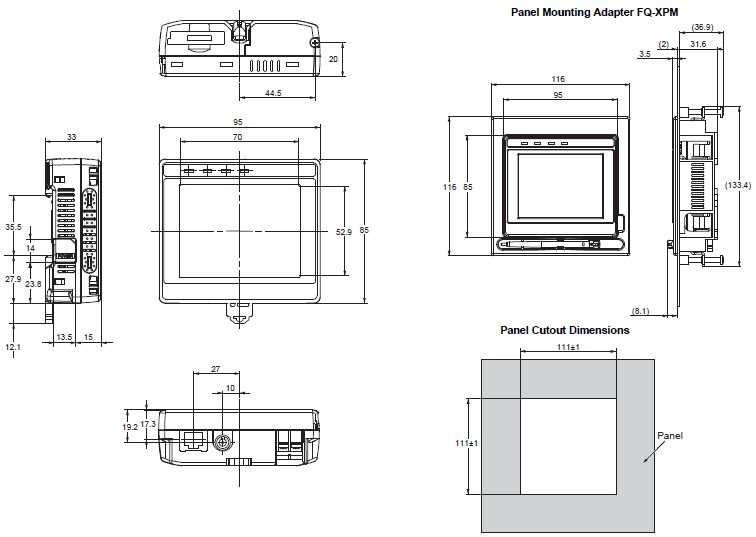

Touch Finder

FQ2-D30/-D31

FQ2-CH Series Dimensions 6

Note: Provided with FQ2-D31 only.

FQ2-CH Series Dimensions 7

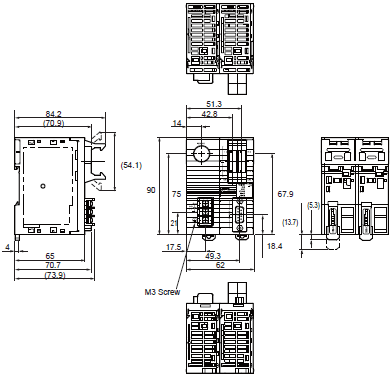

Sensor Data Unit

FQ-SDU10/-SDU15

FQ2-CH Series Dimensions 9

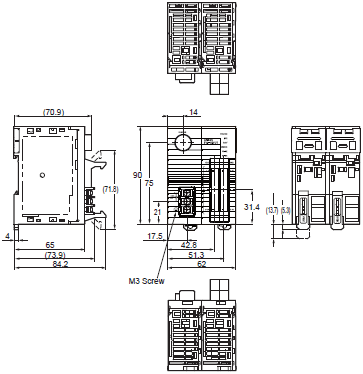

FQ-SDU20/-SDU25

FQ2-CH Series Dimensions 10
