XW2R (General-purpose devices)

Connector-Terminal Block Conversion Units for General-purpose Devices

XW2R (General-purpose devices)

Many Variations in Connectors and Number of Poles

Model List

With power supply terminals

XW2R (General-purpose devices) Lineup 2

Without power supply terminals

XW2R (General-purpose devices) Lineup 3

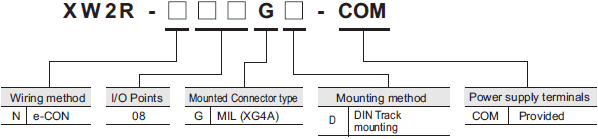

With power supply terminals

e-CON Type

Appearance I/O
Points
I/O Model ∗ Mounted Connector model Cable Connector model
3154_lu_3_1 8
Points
Input XW2R-N08GD-COM XG4A-1431 (MIL Connector)
XN2D-4471 (e-CON Connector)
XG4M-1430-T (MIL Connector)
XN2A-1470 (e-CON Connector)

* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Input Device Connectors: XN2 e-CON Connectors

For Sensor

Appearance Number of poles Model
3154_lu_4_1 4 XN2A-1470

Relay Connector

Appearance Number of poles Model
3154_lu_5_1 4 XN2B-1470

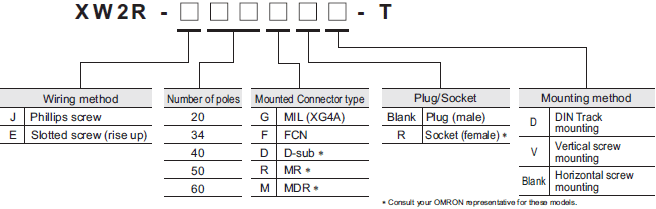

Without power supply terminals

Phillips screw

Appearance ∗1 Mounted Connector model Number of poles Model ∗2
3154_lu_6_1 MIL Connector XG4A-2031 20 XW2R-J20GD-T
XG4A-3431 34 XW2R-J34GD-T
XG4A-4031 40 XW2R-J40GD-T
XG4A-5031 50 XW2R-J50GD-T
XG4A-6031 60 XW2R-J60GD-T
FCN Connector Fujitsu FCN-364P040-AU 40 XW2R-J40FD-T

*1 The mounted Connector shown in the appearance illustration is a MIL Connector.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Slotted screw (rise up)

Appearance ∗1 Mounted Connector model Number of poles Model ∗2
3154_lu_7_1 MIL Connector XG4A-2031 20 XW2R-E20GD-T
XG4A-3431 34 XW2R-E34GD-T
XG4A-4031 40 XW2R-E40GD-T
XG4A-5031 50 XW2R-E50GD-T
XG4A-6031 60 XW2R-E60GD-T
FCN Connector Fujitsu FCN-364P040-AU 40 XW2R-E40FD-T

*1 The mounted Connector shown in the appearance illustration is a MIL Connector.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.

Push-in spring

Appearance ∗1 Mounted Connector model Number of poles Model ∗2
3154_lu_8_1 MIL Connector XG4A-2031 20 XW2R-P20GD-T
XG4A-3431 34 XW2R-P34GD-T
XG4A-4031 40 XW2R-P40GD-T
XG4A-5031 50 XW2R-P50GD-T
XG4A-6031 60 XW2R-P60GD-T
FCN Connector Fujitsu FCN-364P040-AU 40 XW2R-P40FD-T

*1 The mounted Connector shown in the appearance illustration is a MIL Connector.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.
