SHL

Enclosed Switch

SHL

Subminiature Enclosed Switch (Measuring 48 x 17.5 x 45 mm) with High Sealing Property

Caution: All units are in millimeters unless otherwise indicated.

Switches

(Note: Omitted dimensions are the same as those of the plunger models.)

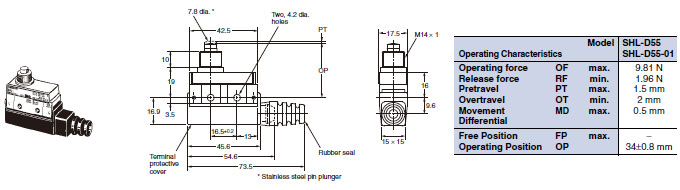

Plunger
SHL-D55
SHL-D55-01

SHL Dimensions 2

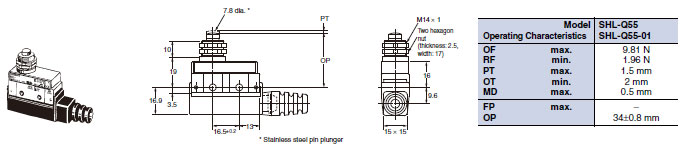

Panel Mount Plunger
SHL-Q55
SHL-Q55-01

SHL Dimensions 3

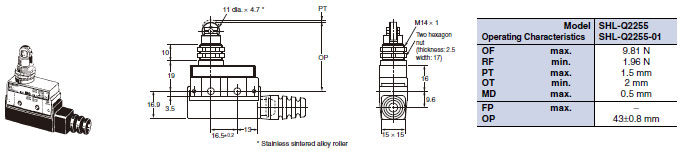

Panel Mount Roller Plunger
SHL-Q2255
SHL-Q2255-01

SHL Dimensions 4

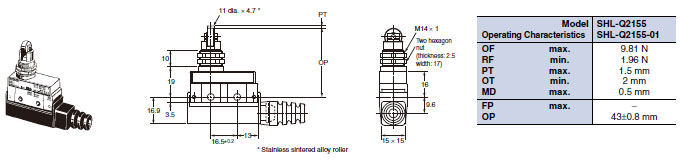

Panel Mount Crossroller Plunger
SHL-Q2155
SHL-Q2155-01

SHL Dimensions 5

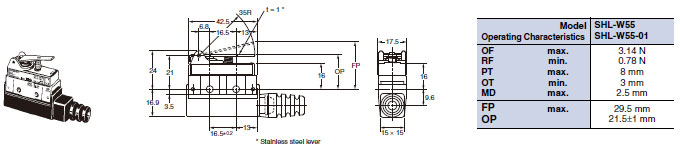

Short Hinge Lever
SHL-W55
SHL-W55-01

SHL Dimensions 6

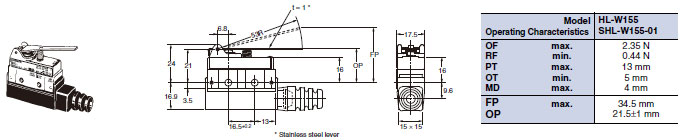

Hinge Lever
SHL-W155
SHL-W155-01

SHL Dimensions 7

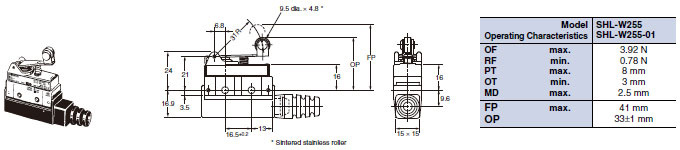

Short Hinge Roller Lever
SHL-W255
SHL-W255-01

SHL Dimensions 8

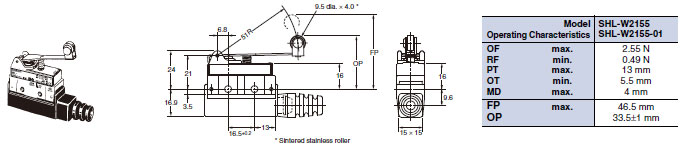

Hinge Roller Lever
SHL-W2155
SHL-W2155-01

SHL Dimensions 9

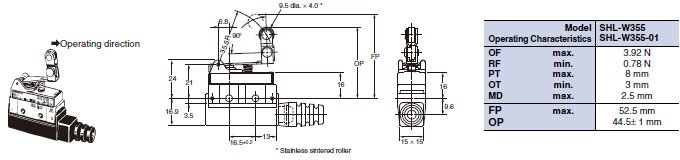

One-way Action Short Hinge Roller Lever
SHL-W355
SHL-W355-01

SHL Dimensions 10

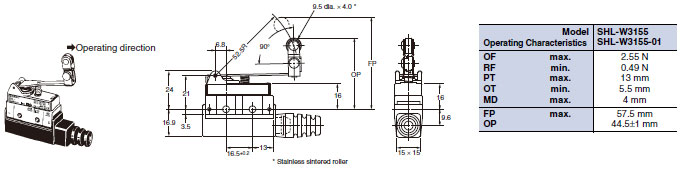

One-way Action Hinge Roller Lever
SHL-W3155
SHL-W3155-01

SHL Dimensions 11

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
