A7CN / A7CN-L

Thumbwheel Switch

A7CN / A7CN-L

A Brand New Lineup of A7C Series Compact Thumbwheel Switches

Caution: All units are in millimeters unless otherwise indicated.

Switches

A7CN-106-1
PCB Terminals

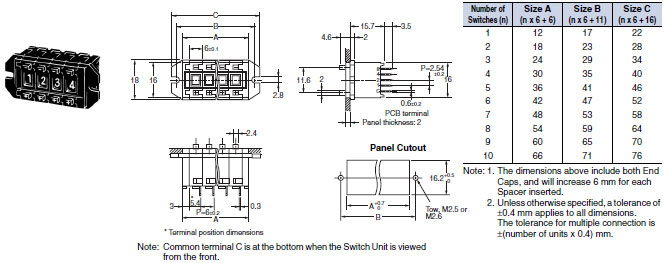

A7CN / A7CN-L Dimensions 2

A7CN-206(-1)
PCB Terminals

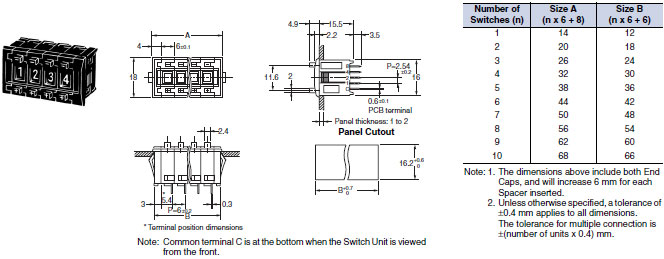

A7CN / A7CN-L Dimensions 3

A7CN-L206(-1)
PCB Terminals
Locking Model

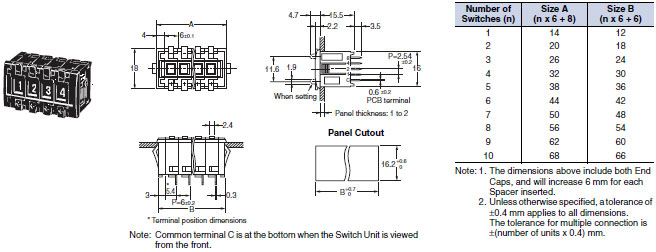

A7CN / A7CN-L Dimensions 4

Accessories (Order Separately)

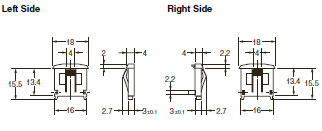

End Caps for Push-operated Switches
A7CN-1M-1 Screw Mounting

A7CN / A7CN-L Dimensions 6

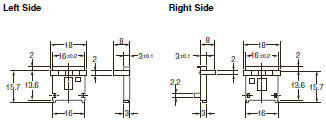

End Caps for Push-operated Switches
A7CN-2M(-1) Snap-in Mounting

A7CN / A7CN-L Dimensions 7

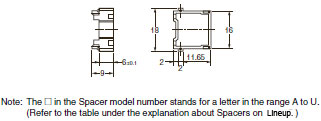

Spacers for Push-operated Switches
A7CN-1P[]-1
Screw Panel Mounting Model

A7CN / A7CN-L Dimensions 8

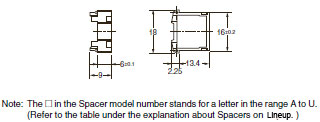

Spacers for Push-operated Switches
A7CN-2P[](-1)
Snap-in Mounting Model

A7CN / A7CN-L Dimensions 9

Note: Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ±0.4 mm.
