Industrial PC Platform NY-series IPC Machine Controller


The future will be IT driven, we make you part of it

Software downloads

You can download software for the NY Series Industrial PC Platform.

(Unit: mm)

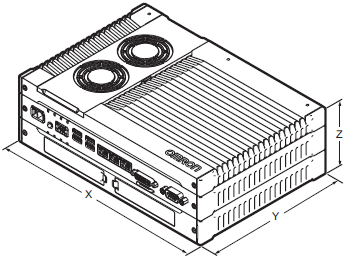

Industrial Box PC type

NY5[][]-1 Dimensions 1
NY5[][]-1 Dimensions 2

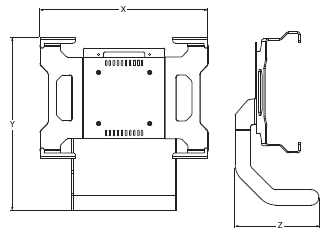

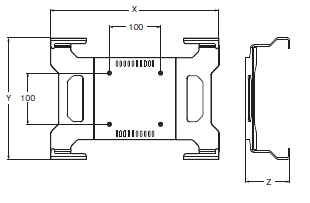

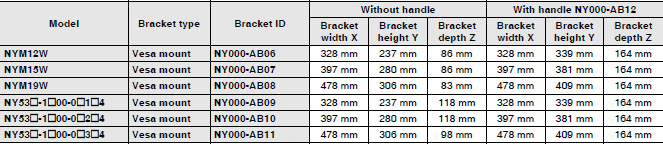

Bracket Specifications

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

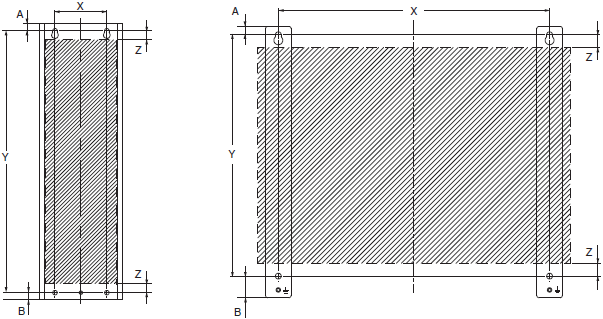

Mounting screw locations for book mount and wall mount orientation:

NY5[][]-1 Dimensions 3

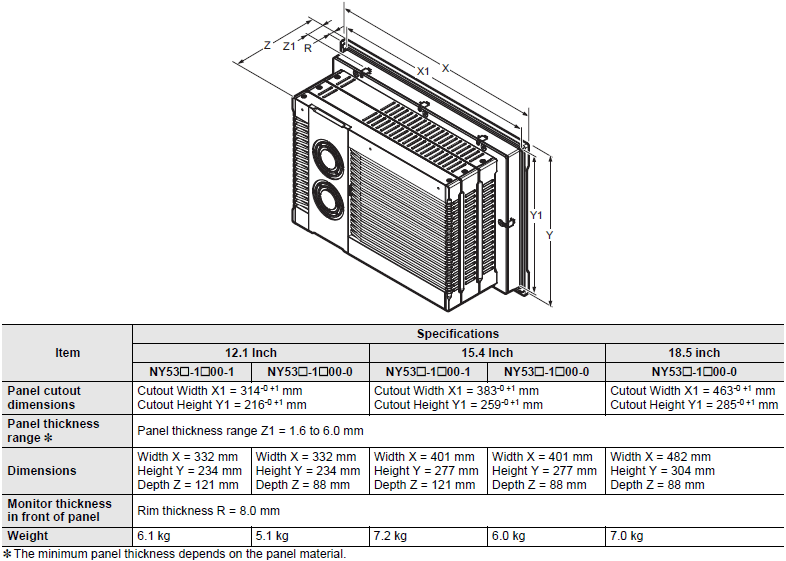

Industrial Panel PC type

NY5[][]-1 Dimensions 4
NY5[][]-1 Dimensions 5
