E2EQ NEXT

Spatter-resistant Proximity Sensor

E2EQ NEXT

Enables easier and standardized designs previously not possible. IO-Link as a standard feature

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

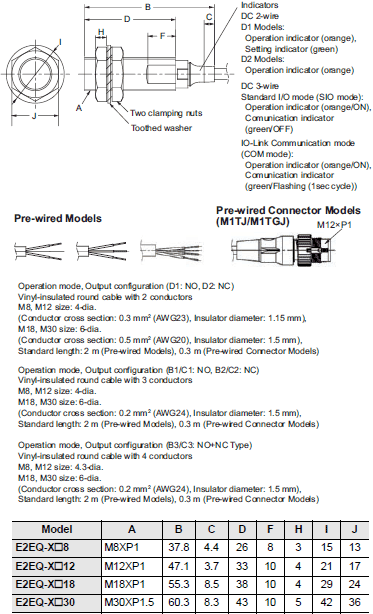

DC 3-Wire PREMIUM Model

E2EQ NEXT Series (Spatter-resistant, Triple distance model)

Pre-wired Model/Pre-wired Connector Model
Shielded

E2EQ NEXT Dimensions 4

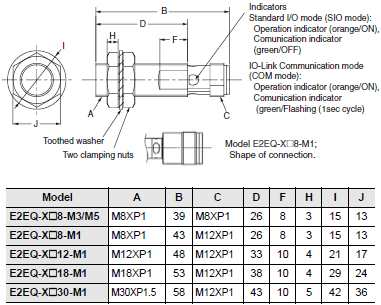

Connector Models
(M12 Connector)
Shielded

E2EQ NEXT Dimensions 5

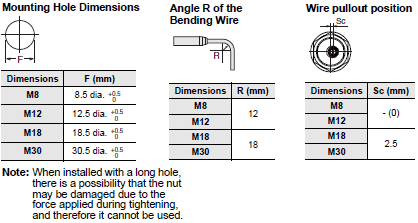

E2EQ NEXT Dimensions 6

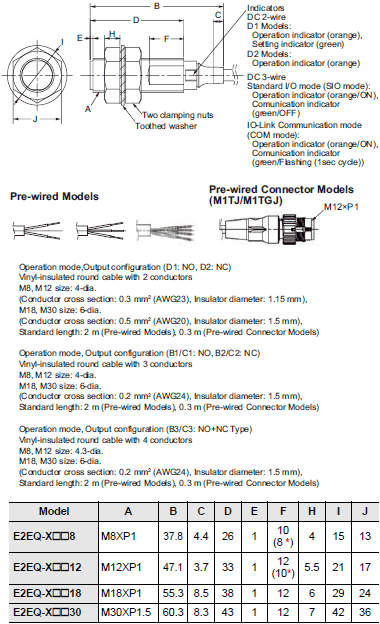

DC 3-Wire BASIC Model

E2EQ NEXT Series (Spatter-resistant, Double distance/Single distance model)

Pre-wired Model/Pre-wired Connector Model
Shielded

E2EQ NEXT Dimensions 9

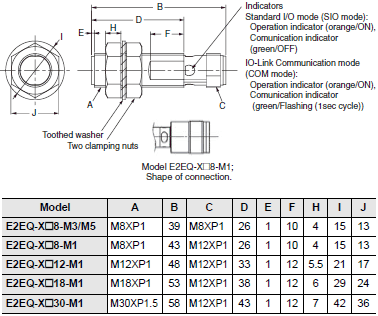

Connector Models
(M12 Connector)
Shielded

E2EQ NEXT Dimensions 10

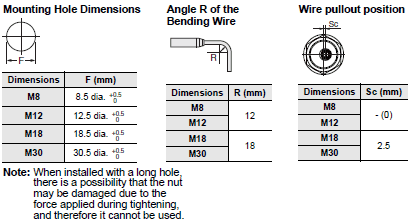

E2EQ NEXT Dimensions 11

DC 2-wire

E2EQ NEXT Series (Spatter-resistant Triple distance model)

Pre-wired Models Shielded

E2EQ-X3D[]8

E2EQ NEXT Dimensions 15

E2EQ-X7D[]12

E2EQ NEXT Dimensions 16

E2EQ-X11D[]18

E2EQ NEXT Dimensions 17

E2EQ-X20D[]30

E2EQ NEXT Dimensions 18

Pre-wired Connector Models Shielded

E2EQ-X3D[]8-M1TGJ

E2EQ NEXT Dimensions 20

E2EQ-X7D[]12-M1TGJ

E2EQ NEXT Dimensions 21

E2EQ-X11D[]18-M1TGJ

E2EQ NEXT Dimensions 22

E2EQ-X20D[]30-M1TGJ

E2EQ NEXT Dimensions 23
