E2EQ NEXT

Spatter-resistant Proximity Sensor

E2EQ NEXT

Enables easier and standardized designs previously not possible. IO-Link as a standard feature

DC 3-wire PREMIUM Model

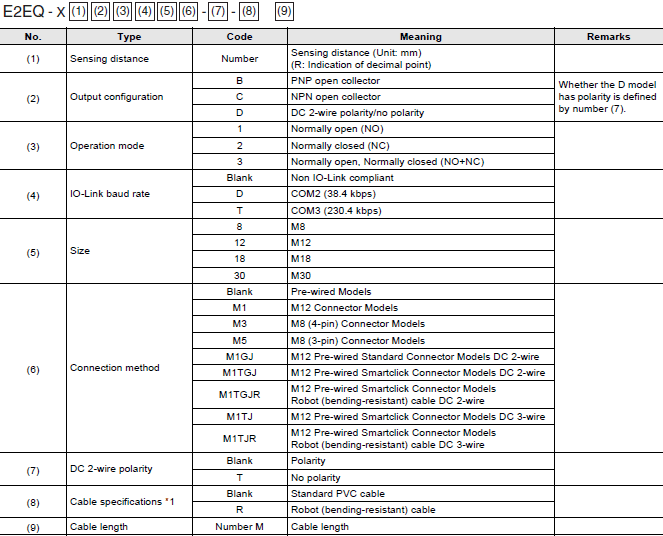

E2EQ NEXT Series Model Number Legend

E2EQ NEXT Lineup 2

E2EQ NEXT Series (Spatter-resistant Triple distance model)

DC 3-wire

Shielded *1

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *3 --- *3
M8
(3 mm)
Pre-wired
(2 m) *2
38 mm NO E2EQ-X3B1T8 2M E2EQ-X3B1D8 2M E2EQ-X3C18 2M
NC - E2EQ-X3B28 2M E2EQ-X3C28 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm NO E2EQ-X3B1T8-M1TJ 0.3M E2EQ-X3B1D8-M1TJ 0.3M E2EQ-X3C18-M1TJ 0.3M
NC - E2EQ-X3B28-M1TJ 0.3M E2EQ-X3C28-M1TJ 0.3M
M12
Connector
43 mm NO E2EQ-X3B1T8-M1 E2EQ-X3B1D8-M1 E2EQ-X3C18-M1
NC - E2EQ-X3B28-M1 E2EQ-X3C28-M1
M12
(6 mm)
Pre-wired
(2 m) *2
47 mm NO E2EQ-X6B1T12 2M E2EQ-X6B1D12 2M E2EQ-X6C112 2M
NC - E2EQ-X6B212 2M E2EQ-X6C212 2M
NO+NC - E2EQ-X6B3D12 2M E2EQ-X6C312 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm NO E2EQ-X6B1T12-M1TJ 0.3M E2EQ-X6B1D12-M1TJ 0.3M E2EQ-X6C112-M1TJ 0.3M
NC - E2EQ-X6B212-M1TJ 0.3M E2EQ-X6C212-M1TJ 0.3M
NO+NC - E2EQ-X6B3D12-M1TJ 0.3M E2EQ-X6C312-M1TJ 0.3M
M12
Connector
48 mm NO E2EQ-X6B1T12-M1 E2EQ-X6B1D12-M1 E2EQ-X6C112-M1
NC - E2EQ-X6B212-M1 E2EQ-X6C212-M1
NO+NC - E2EQ-X6B3D12-M1 E2EQ-X6C312-M1
M18
(12 mm)
Pre-wired
(2 m) *2
55 mm NO E2EQ-X12B1T18 2M E2EQ-X12B1D18 2M E2EQ-X12C118 2M
NC - E2EQ-X12B218 2M E2EQ-X12C218 2M
NO+NC - E2EQ-X12B3D18 2M E2EQ-X12C318 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm NO E2EQ-X12B1T18-M1TJ 0.3M E2EQ-X12B1D18-M1TJ 0.3M E2EQ-X12C118-M1TJ 0.3M
NC - E2EQ-X12B218-M1TJ 0.3M E2EQ-X12C218-M1TJ 0.3M
NO+NC - E2EQ-X12B3D18-M1TJ 0.3M E2EQ-X12C318-M1TJ 0.3M
M12
Connector
53 mm NO E2EQ-X12B1T18-M1 E2EQ-X12B1D18-M1 E2EQ-X12C118-M1
NC - E2EQ-X12B218-M1 E2EQ-X12C218-M1
NO+NC - E2EQ-X12B3D18-M1 E2EQ-X12C318-M1
M30
(22 mm)
Pre-wired
(2 m) *2
60 mm NO E2EQ-X22B1T30 2M E2EQ-X22B1D30 2M E2EQ-X22C130 2M
NC - E2EQ-X22B230 2M E2EQ-X22C230 2M
NO+NC - E2EQ-X22B3D30 2M E2EQ-X22C330 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm NO E2EQ-X22B1T30-M1TJ 0.3M E2EQ-X22B1D30-M1TJ 0.3M E2EQ-X22C130-M1TJ 0.3M
NC - E2EQ-X22B230-M1TJ 0.3M E2EQ-X22C230-M1TJ 0.3M
NO+NC - E2EQ-X22B3D30-M1TJ 0.3M E2EQ-X22C330-M1TJ 0.3M
M12
Connector
58 mm NO E2EQ-X22B1T30-M1 E2EQ-X22B1D30-M1 E2EQ-X22C130-M1
NC - E2EQ-X22B230-M1 E2EQ-X22C230-M1
NO+NC - E2EQ-X22B3D30-M1 E2EQ-X22C330-M1

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
*3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

DC 3-wire BASIC Model

E2EQ NEXT Series Model Number Legend

E2EQ NEXT Lineup 8

E2EQ NEXT Series (Spatter-resistant Double distance model)

DC 3-wire

Shielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *2 --- *2
M8
(2 mm)
Pre-wired
(2 m) *1
38 mm NO E2EQ-X2B1T8 2M E2EQ-X2B1D8 2M E2EQ-X2C18 2M
NC - E2EQ-X2B28 2M E2EQ-X2C28 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm NO E2EQ-X2B1T8-M1TJ 0.3M E2EQ-X2B1D8-M1TJ 0.3M E2EQ-X2C18-M1TJ 0.3M
NC - E2EQ-X2B28-M1TJ 0.3M E2EQ-X2C28-M1TJ 0.3M
M12
Connector
43 mm NO E2EQ-X2B1T8-M1 E2EQ-X2B1D8-M1 E2EQ-X2C18-M1
NC - E2EQ-X2B28-M1 E2EQ-X2C28-M1
M12
(4 mm)
Pre-wired
(2 m) *1
47 mm NO E2EQ-X4B1T12 2M E2EQ-X4B1D12 2M E2EQ-X4C112 2M
NC - E2EQ-X4B212 2M E2EQ-X4C212 2M
NO+NC - E2EQ-X4B3D12 2M E2EQ-X4C312 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm NO E2EQ-X4B1T12-M1TJ 0.3M E2EQ-X4B1D12-M1TJ 0.3M E2EQ-X4C112-M1TJ 0.3M
NC - E2EQ-X4B212-M1TJ 0.3M E2EQ-X4C212-M1TJ 0.3M
NO+NC - E2EQ-X4B3D12-M1TJ 0.3M E2EQ-X4C312-M1TJ 0.3M
M12
Connector
48 mm NO E2EQ-X4B1T12-M1 E2EQ-X4B1D12-M1 E2EQ-X4C112-M1
NC - E2EQ-X4B212-M1 E2EQ-X4C212-M1
NO+NC - E2EQ-X4B3D12-M1 E2EQ-X4C312-M1
M18
(8 mm)
Pre-wired
(2 m) *1
55 mm NO E2EQ-X8B1T18 2M E2EQ-X8B1D18 2M E2EQ-X8C118 2M
NC - E2EQ-X8B218 2M E2EQ-X8C218 2M
NO+NC - E2EQ-X8B3D18 2M E2EQ-X8C318 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm NO E2EQ-X8B1T18-M1TJ 0.3M E2EQ-X8B1D18-M1TJ 0.3M E2EQ-X8C118-M1TJ 0.3M
NC - E2EQ-X8B218-M1TJ 0.3M E2EQ-X8C218-M1TJ 0.3M
NO+NC - E2EQ-X8B3D18-M1TJ 0.3M E2EQ-X8C318-M1TJ 0.3M
M12
Connector
53 mm NO E2EQ-X8B1T18-M1 E2EQ-X8B1D18-M1 E2EQ-X8C118-M1
NC - E2EQ-X8B218-M1 E2EQ-X8C218-M1
NO+NC - E2EQ-X8B3D18-M1 E2EQ-X8C318-M1
M30
(15 mm)
Pre-wired
(2 m) *1
60 mm NO E2EQ-X15B1T30 2M E2EQ-X15B1D30 2M E2EQ-X15C130 2M
NC - E2EQ-X15B230 2M E2EQ-X15C230 2M
NO+NC - E2EQ-X15B3D30 2M E2EQ-X15C330 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm NO E2EQ-X15B1T30-M1TJ 0.3M E2EQ-X15B1D30-M1TJ 0.3M E2EQ-X15C130-M1TJ 0.3M
NC - E2EQ-X15B230-M1TJ 0.3M E2EQ-X15C230-M1TJ 0.3M
NO+NC - E2EQ-X15B3D30-M1TJ 0.3M E2EQ-X15C330-M1TJ 0.3M
M12
Connector
58 mm NO E2EQ-X15B1T30-M1 E2EQ-X15B1D30-M1 E2EQ-X15C130-M1
NC - E2EQ-X15B230-M1 E2EQ-X15C230-M1
NO+NC - E2EQ-X15B3D30-M1 E2EQ-X15C330-M1

*1. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

E2EQ NEXT Series (Spatter-resistant Single distance model)

DC 3-wire

Shielded

Size
(Sensing
distance)
Connection
method
Body
size
Opera-tion
mode
Model
PNP NPN
IO-Link (COM3) IO-Link (COM2) *2 --- *2
M8
(1.5 mm)
Pre-wired
(2 m) *1
38 mm NO E2EQ-X1R5B1T8 2M E2EQ-X1R5B1D8 2M E2EQ-X1R5C18 2M
NC - E2EQ-X1R5B28 2M E2EQ-X1R5C28 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
38 mm NO E2EQ-X1R5B1T8-M1TJ 0.3M E2EQ-X1R5B1D8-M1TJ 0.3M E2EQ-X1R5C18-M1TJ 0.3M
NC - E2EQ-X1R5B28-M1TJ 0.3M E2EQ-X1R5C28-M1TJ 0.3M
M12
Connector
43 mm NO E2EQ-X1R5B1T8-M1 E2EQ-X1R5B1D8-M1 E2EQ-X1R5C18-M1
NC - E2EQ-X1R5B28-M1 E2EQ-X1R5C28-M1
M12
(2 mm)
Pre-wired
(2 m) *1
47 mm NO E2EQ-X2B1T12 2M E2EQ-X2B1D12 2M E2EQ-X2C112 2M
NC - E2EQ-X2B212 2M E2EQ-X2C212 2M
NO+NC - E2EQ-X2B3D12 2M E2EQ-X2C312 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
47 mm NO E2EQ-X2B1T12-M1TJ 0.3M E2EQ-X2B1D12-M1TJ 0.3M E2EQ-X2C112-M1TJ 0.3M
NC - E2EQ-X2B212-M1TJ 0.3M E2EQ-X2C212-M1TJ 0.3M
NO+NC - E2EQ-X2B3D12-M1TJ 0.3M E2EQ-X2C312-M1TJ 0.3M
M12
Connector
48 mm NO E2EQ-X2B1T12-M1 E2EQ-X2B1D12-M1 E2EQ-X2C112-M1
NC - E2EQ-X2B212-M1 E2EQ-X2C212-M1
NO+NC - E2EQ-X2B3D12-M1 E2EQ-X2C312-M1
M18
(5 mm)
Pre-wired
(2 m) *1
55 mm NO E2EQ-X5B1T18 2M E2EQ-X5B1D18 2M E2EQ-X5C118 2M
NC - E2EQ-X5B218 2M E2EQ-X5C218 2M
NO+NC - E2EQ-X5B3D18 2M E2EQ-X5C318 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
55 mm NO E2EQ-X5B1T18-M1TJ 0.3M E2EQ-X5B1D18-M1TJ 0.3M E2EQ-X5C118-M1TJ 0.3M
NC - E2EQ-X5B218-M1TJ 0.3M E2EQ-X5C218-M1TJ 0.3M
NO+NC - E2EQ-X5B3D18-M1TJ 0.3M E2EQ-X5C318-M1TJ 0.3M
M12
Connector
53 mm NO E2EQ-X5B1T18-M1 E2EQ-X5B1D18-M1 E2EQ-X5C118-M1
NC - E2EQ-X5B218-M1 E2EQ-X5C218-M1
NO+NC - E2EQ-X5B3D18-M1 E2EQ-X5C318-M1
M30
(10 mm)
Pre-wired
(2 m) *1
60 mm NO E2EQ-X10B1T30 2M E2EQ-X10B1D30 2M E2EQ-X10C130 2M
NC - E2EQ-X10B230 2M E2EQ-X10C230 2M
NO+NC - E2EQ-X10B3D30 2M E2EQ-X10C330 2M
M12
Pre-wired
Smartclick
Connector
(0.3 m)
60 mm NO E2EQ-X10B1T30-M1TJ 0.3M E2EQ-X10B1D30-M1TJ 0.3M E2EQ-X10C130-M1TJ 0.3M
NC - E2EQ-X10B230-M1TJ 0.3M E2EQ-X10C230-M1TJ 0.3M
NO+NC - E2EQ-X10B3D30-M1TJ 0.3M E2EQ-X10C330-M1TJ 0.3M
M12
Connector
58 mm NO E2EQ-X10B1T30-M1 E2EQ-X10B1D30-M1 E2EQ-X10C130-M1
NC - E2EQ-X10B230-M1 E2EQ-X10C230-M1
NO+NC - E2EQ-X10B3D30-M1 E2EQ-X10C330-M1

*1. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.

Accessories (Sold Separately)

Sensor I/O Connectors

(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.

Round Oil-resistant Connectors XS5 NEXT series

Appearance Cable
specifica-
tion
Type Cable
diameter
(mm)
Cable
connection
direction
Cable
length
(m)
Sensor I/O
Connector
model number
Applicable
Proximity Sensor
model number
M12
Smartclick
Connector
Models

Straight type
3791_lu_5_1

Oil-resistant
PVC cable
Sockets on
One Cable
End
6 dia. Straight 1 XS5F-D421-C80-X E2E-X[][][]-M1TJ(R)
E2EQ-X[][][]-M1TJ
E2E(Q)-X[][][]-M1
2 XS5F-D421-D80-X
3 XS5F-D421-E80-X
5 XS5F-D421-G80-X
10 XS5F-D421-J80-X
Oil-resistant
PVC robot
cable
Sockets on
One Cable
End
6 dia. Straight 1 XS5F-D421-C80-XR
2 XS5F-D421-D80-XR
3 XS5F-D421-E80-XR
5 XS5F-D421-G80-XR
10 XS5F-D421-J80-XR
Oil-resistant
PVC cable
Socket and
Plug on
Cable Ends
6 dia. Straight
(Socket)/
Straight
(Plug)
1 XS5W-D421-C81-X
2 XS5W-D421-D81-X
3 XS5W-D421-E81-X
5 XS5W-D421-G81-X
10 XS5W-D421-J81-X
Oil-resistant
PVC robot
cable
Socket and
Plug on
Cable Ends
6 dia. Straight
(Socket)/
Straight
(Plug)
1 XS5W-D421-C81-XR
2 XS5W-D421-D81-XR
3 XS5W-D421-E81-XR
5 XS5W-D421-G81-XR
10 XS5W-D421-J81-XR

Note: For details of the connector, refer to XS5 NEXT Series on Catalog.

Round Water-resistant Connectors XS5 series

Appearance Cable
Speci-
fication
Type Cable
diameter
(mm)
Cable
Connection
Direction
Cable
length
(m)
Sensor I/O
Connector
model number
Applicable
Proximity Sensor
model number
M12
Smartclick
Connector

Straight type
3791_lu_6_1

Right-angle
type
3791_lu_6_2
PVC
robot
cable
Sockets
on One
Cable
End
6 dia. Straight 1 XS5F-D421-C80-F E2E-X[][][]-M1TJ(R)
E2EQ-X[][][]-M1TJ
E2E(Q)-X[][][]-M1
2 XS5F-D421-D80-F
3 XS5F-D421-E80-F
5 XS5F-D421-G80-F
10 XS5F-D421-J80-F
Right-angle 1 XS5F-D422-C80-F
2 XS5F-D422-D80-F
3 XS5F-D422-E80-F
5 XS5F-D422-G80-F
10 XS5F-D422-J80-F
Socket
and Plug
on
Cable
Ends
6 dia. Straight (Socket)/
Straight (Plug)
1 XS5W-D421-C81-F
2 XS5W-D421-D81-F
3 XS5W-D421-E81-F
5 XS5W-D421-G81-F
10 XS5W-D421-J81-F
Right-angle (Socket)/
Right-angle (Plug)
2 XS5W-D422-D81-F
5 XS5W-D422-G81-F
Straight (Socket)/
Right-angle (Plug)
2 XS5W-D423-D81-F
5 XS5W-D423-G81-F
Right-angle (Socket)/
Straight (Plug)
2 XS5W-D424-D81-F
5 XS5W-D424-G81-F

Note: For details of the connector, refer to XS5 Series on Catalog.

DC 2-wire

E2EQ NEXT Series Model Number Legend

E2EQ NEXT Lineup 24

E2EQ NEXT Series (Spatter-resistant Triple distance model)

DC 2-wire

Shielded Models *1

Size
(Sensing
distance)
Connection method Polarity Model
Operation mode: NO Operation mode: NC
M8
(3 mm)
Pre-wired (2 m) *2 Yes E2EQ-X3D18 2M E2EQ-X3D28 2M
No E2EQ-X3D18-T 2M E2EQ-X3D28-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m)
Yes E2EQ-X3D18-M1TGJ 0.3M E2EQ-X3D28-M1TGJ 0.3M
No E2EQ-X3D18-M1TGJ-T 0.3M E2EQ-X3D28-M1TGJ-T 0.3M
M12
(7 mm)
Pre-wired (2 m) *2 Yes E2EQ-X7D112 2M E2EQ-X7D212 2M
No E2EQ-X7D112-T 2M E2EQ-X7D212-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m)
Yes E2EQ-X7D112-M1TGJ 0.3M E2EQ-X7D212-M1TGJ 0.3M
No E2EQ-X7D112-M1TGJ-T 0.3M E2EQ-X7D212-M1TGJ-T 0.3M
M18
(11 mm)
Pre-wired (2 m) *2 Yes E2EQ-X11D118 2M E2EQ-X11D218 2M
No E2EQ-X11D118-T 2M E2EQ-X11D218-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m)
Yes E2EQ-X11D118-M1TGJ 0.3M E2EQ-X11D218-M1TGJ 0.3M
No E2EQ-X11D118-M1TGJ-T 0.3M E2EQ-X11D218-M1TGJ-T 0.3M
M30
(20 mm)
Pre-wired (2 m) *2 Yes E2EQ-X20D130 2M E2EQ-X20D230 2M
No E2EQ-X20D130-T 2M E2EQ-X20D230-T 2M
M12 Pre-wired
Smartclick Connector (0.3 m)
Yes E2EQ-X20D130-M1TGJ 0.3M E2EQ-X20D230-M1TGJ 0.3M
No E2EQ-X20D130-M1TGJ-T 0.3M E2EQ-X20D230-M1TGJ-T 0.3M

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EQ-X3D18 5M)

Accessories (Sold Separately)

Sensor I/O Connectors

(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
Round Oil-resistant Connectors XS5 NEXT series

Round Oil-resistant Connectors XS5 NEXT series

Appearance Cable
Specifica-
tion
Type Cable
diameter
(mm)
Cable
Connection
Direction
Cable
length
(m)
Sensor I/O
Connector
model number
Applicable
Proximity Sensor
model number
M12
Smartclick
Connector

Straight type
3791_lu_9_1
Oil-resistant
PVC cable
Sockets
on One
Cable End
6 dia. Straight 1 XS5F-D421-C80-X E2E-X[]D[]-
M1TGJ(R)(-T)
E2EQ-X[]D[]-
M1TGJ(-T)
2 XS5F-D421-D80-X
3 XS5F-D421-E80-X
5 XS5F-D421-G80-X
10 XS5F-D421-J80-X
Oil-resistant
PVC robot
cable
Sockets
on One
Cable End
6 dia. Straight 1 XS5F-D421-C80-XR
2 XS5F-D421-D80-XR
3 XS5F-D421-E80-XR
5 XS5F-D421-G80-XR
10 XS5F-D421-J80-XR
Oil-resistant
PVC cable
Socket
and Plug
on Cable
Ends
6 dia. Straight
(Socket)/
Straight (Plug)
1 XS5W-D421-C81-X
2 XS5W-D421-D81-X
3 XS5W-D421-E81-X
5 XS5W-D421-G81-X
10 XS5W-D421-J81-X
Oil-resistant
PVC robot
cable
Socket
and Plug
on Cable
Ends
6 dia. Straight
(Socket)/
Straight (Plug)
1 XS5W-D421-C81-XR
2 XS5W-D421-D81-XR
3 XS5W-D421-E81-XR
5 XS5W-D421-G81-XR
10 XS5W-D421-J81-XR

Note: For details of the connector, refer to XS5 NEXT Series on Catalog.

Round Water-resistant Connectors XS5 series

Appearance Cable
Speci-
fication
Type Cable
diameter
(mm)
Cable
Connection
Direction
Cable
length
(m)
Sensor I/O
Connector
model number
Applicable
Proximity Sensor
model number
M12
Smartclick
Connector

Straight type
3791_lu_10_1

Right-angle
type
3791_lu_10_2
PVC
robot
cable
Sockets
on One
Cable
End
6 dia. Straight 1 XS5F-D421-C80-F E2E-X[]D[]-
M1TGJ(R)(-T)
E2EQ-X[]D[]-
M1TGJ(-T)
2 XS5F-D421-D80-F
3 XS5F-D421-E80-F
5 XS5F-D421-G80-F
10 XS5F-D421-J80-F
Right-angle 1 XS5F-D422-C80-F
2 XS5F-D422-D80-F
3 XS5F-D422-E80-F
5 XS5F-D422-G80-F
10 XS5F-D422-J80-F
Socket
and Plug
on Cable
Ends
6 dia. Straight (Socket)/
Straight (Plug)
1 XS5W-D421-C81-F
2 XS5W-D421-D81-F
3 XS5W-D421-E81-F
5 XS5W-D421-G81-F
10 XS5W-D421-J81-F
Right-angle
(Socket)/
Right-angle (Plug)
2 XS5W-D422-D81-F
5 XS5W-D422-G81-F
Straight (Socket)/
Right-angle (Plug)
2 XS5W-D423-D81-F
5 XS5W-D423-G81-F
Right-angle
(Socket)/
Straight (Plug)
2 XS5W-D424-D81-F
5 XS5W-D424-G81-F

Note: For details of the connector, refer to XS5 Series on Catalog.
