A4E

Enabling Switch

A4E

3-position Enabling Switch for Safer Robot Operation

Caution: All units are in millimeters unless otherwise indicated.

2-Contact Type

4-Contact Type

No mounting bracket
A4E-B200SS

A4E Dimensions 3 A4E-B200SS_Dim

No mounting bracket

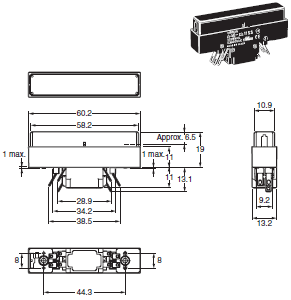

A4E-C211SS

A4E Dimensions 4 A4E-C211SS_Dim



Horizontal mounting

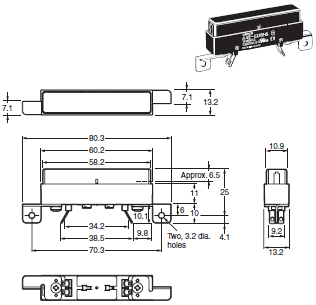

A4E-B200HS

A4E Dimensions 6 A4E-B200HS_Dim

Horizontal mounting

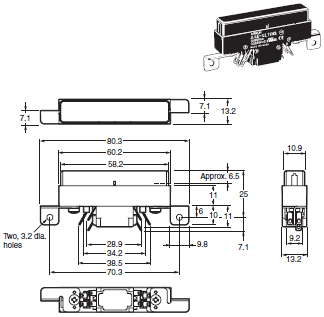

A4E-C211HS

A4E Dimensions 7 A4E-C211HS_Dim



Vertical mounting

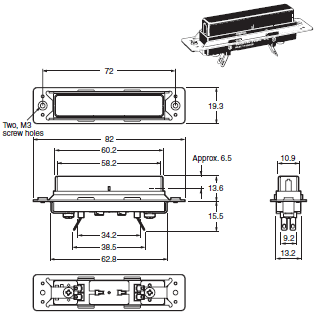

A4E-B200VS

A4E Dimensions 9 A4E-B200VS_Dim

Vertical mounting

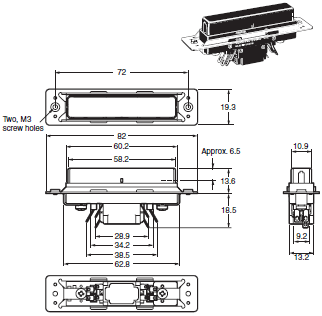

A4E-C211VS

A4E Dimensions 10 A4E-C211VS_Dim



Vertical mounting with rubber seal

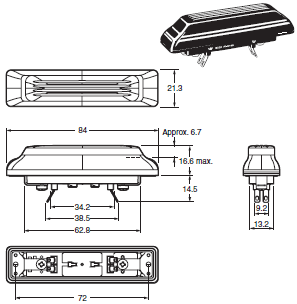

A4E-B200VA

A4E Dimensions 12 A4E-B200VA_Dim

Vertical mounting with rubber seal

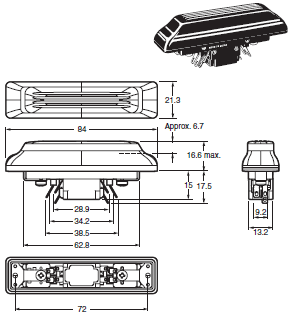

A4E-C211VA

A4E Dimensions 13 A4E-C211VA_Dim
