F3W-D

Picking Sensor

F3W-D

Compact, Resistant to Mutual Interference, and Ideal for Picking a Variety of Parts

Caution: All units are in millimeters unless otherwise indicated.

Sensors

F3W-D

Emitter
F3W-D052A(P)-L
F3W-D052B(P)-L

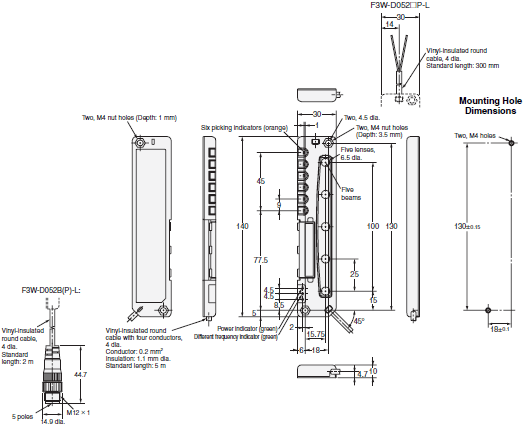

F3W-D Dimensions 3

Receiver
F3W-D052A(P)-D
F3W-D052B(P)-D

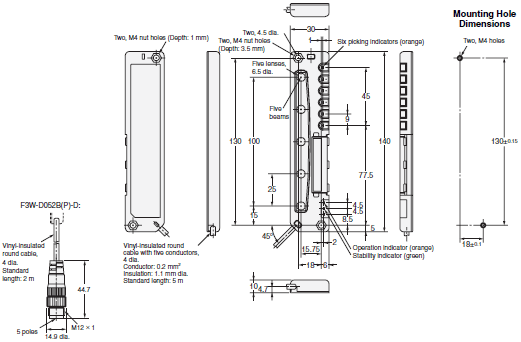

F3W-D Dimensions 4

Accessories (Sold Separately)

Mounting Brackets

F39-L10 (L-shaped)

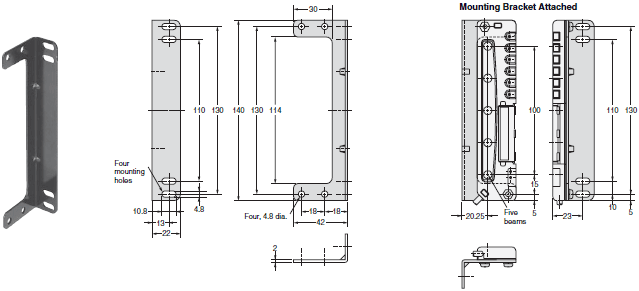

F3W-D Dimensions 7

Material: Iron (Thickness: 2 mm)
Mounting screws provided.

F39-L11 (Flat)

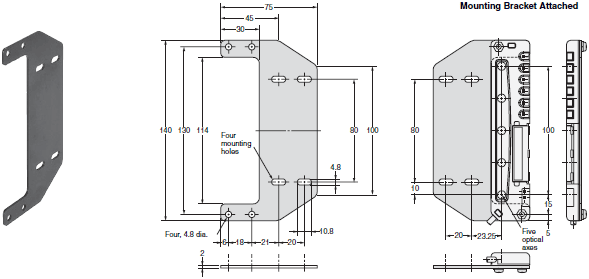

F3W-D Dimensions 8

Material: Iron (Thickness: 2 mm)
Mounting screws provided.

Protective Bracket

F39-L12 (Receiver)

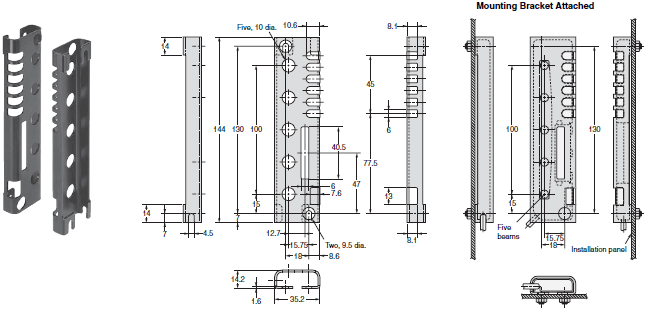

F3W-D Dimensions 10

Material: Iron (Thickness: 1.6 mm)
Mounting screws provided.
Note: The Emitter and Receiver are axially symmetrical.

Y-shaped Joint Plugs and Sockets (Cable with Connectors on Both Ends)

XS2R-D526-S001-2 (L=2,000 mm)
XS2R-D526-S001-5 (L=5,000 mm)

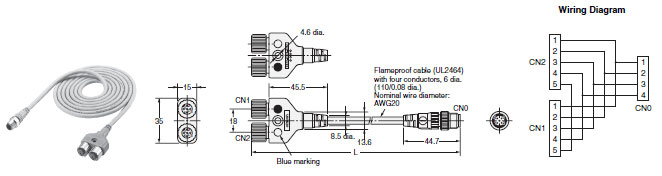

F3W-D Dimensions 12

Y-shaped Joint Plugs and Sockets without Cable

XS2R-D526-S003

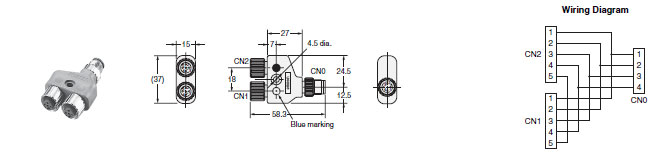

F3W-D Dimensions 14
