E4E2

Compact Ultrasonic Sensor

E4E2

Compact, Through-beam, Ultrasonic Sensor

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Emitter
E4E2-TS50TC1

E4E2 Dimensions 2

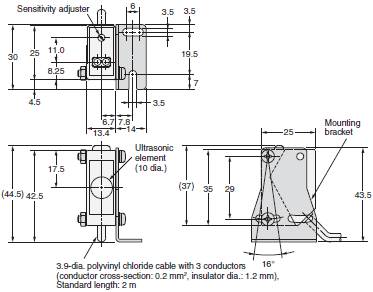

Receiver
E4E2-TS50RC1

E4E2 Dimensions 3
