Global(Unit: mm)
D4NL
Guard Lock Safety-door Switch
Best-selling Guard Lock Safety-door Switch Available in Several Compact, Multi-contact Models
Related Contents
- Safety Door Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: December 2, 2024
Switches

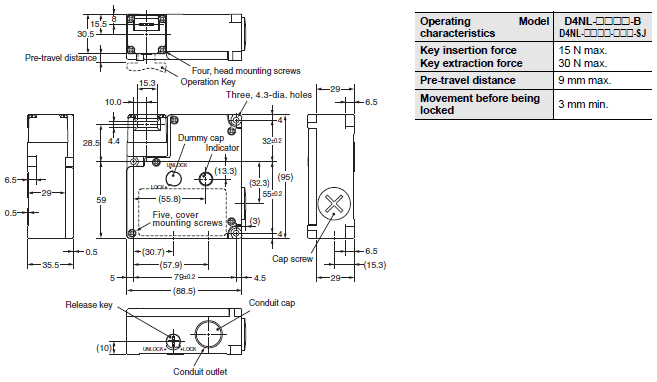

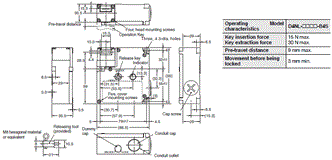

D4NL-[][][][]-B
D4NL-[][][][]-[][][]-SJ

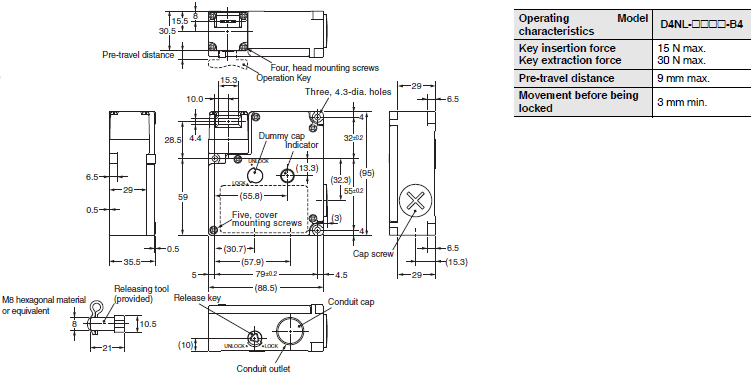

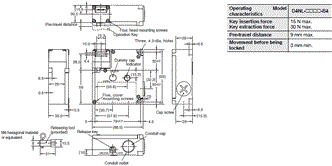

D4NL-[][][][]-B4

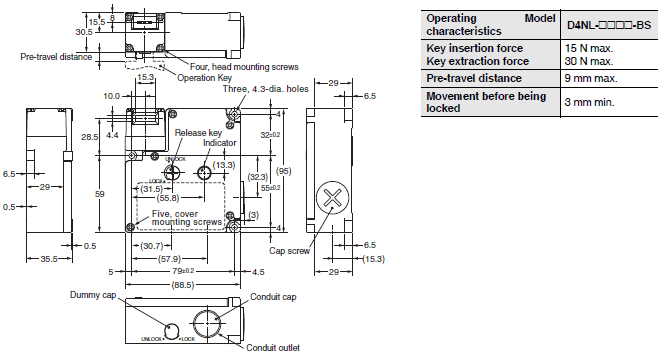

D4NL-[][][][]-BS

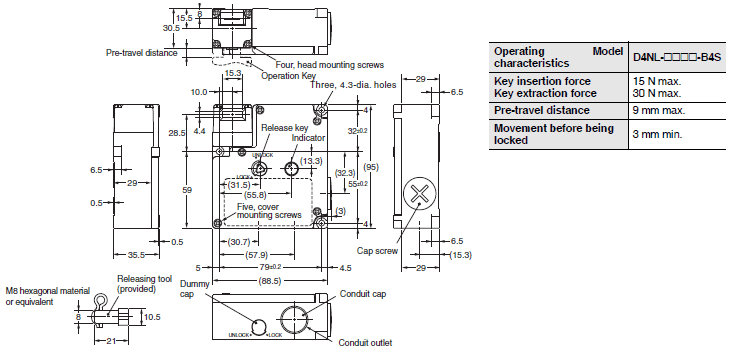

D4NL-[][][][]-B4S
Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC).
Confirm performance before application.
2. There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC).
Confirm performance before application.
Operation Keys

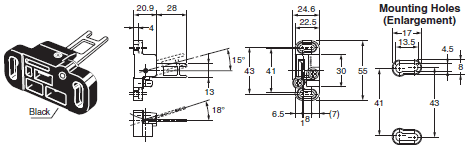

D4DS-K1

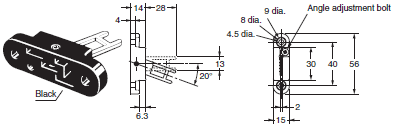

D4DS-K2
D4DS-K3
D4DS-K5
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
With Operation Key Inserted

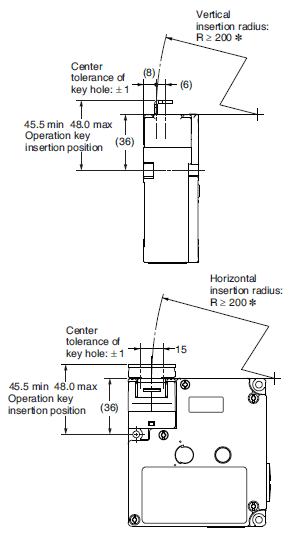

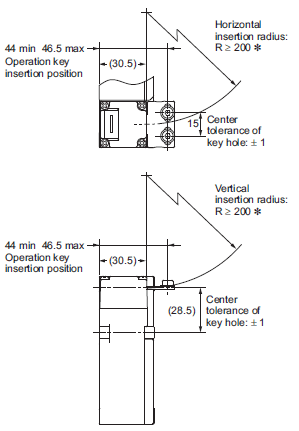

D4NL + D4DS-K1
(with Front-inserted Operation Key)
D4NL + D4DS-K1
(with Top-inserted Operation Key)

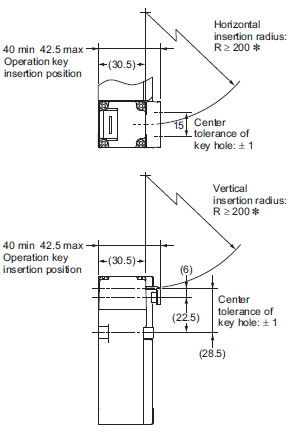

D4NL + D4DS-K2
(with Front-inserted Operation Key)
D4NL + D4DS-K2
(with Top-inserted Operation Key)

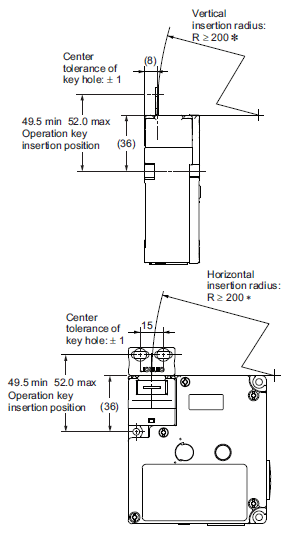

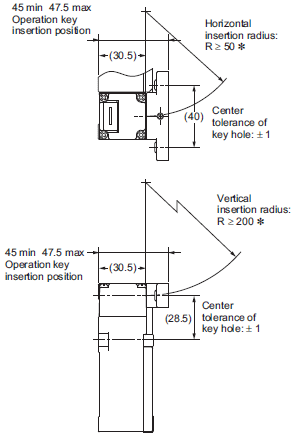

D4NL + D4DS-K3
(with Front-inserted Operation Key)
D4NL + D4DS-K3
(with Top-inserted Operation Key)

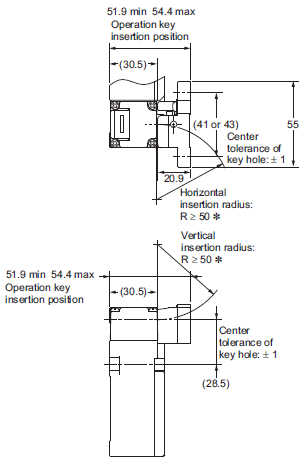

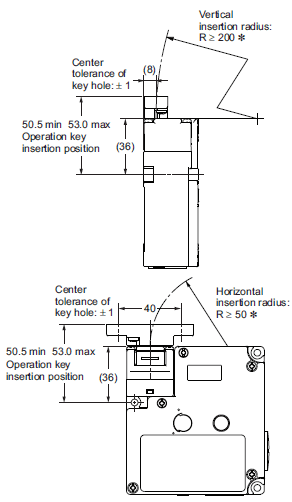

D4NL + D4DS-K5
(with Front-inserted Operation Key)

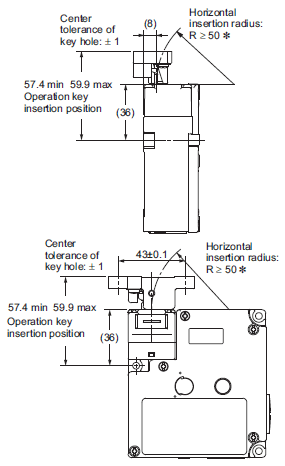

D4NL + D4DS-K5
(with Top-inserted Operation Key)
* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.
Accessary
M20-to-1/2-14NPT conversion adapter for D4NL-4[][][]-[][][]-NPT
