CJ1W-CLK

CJ-series Controller Link Units

CJ1W-CLK

New Controller Link Units, Now with 4,000 Send Words

International Standards

  • The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, CE: EC Directives, and KC: KC Registration.
  • Contact your OMRON representative for further details and applicable conditions for these standards.

Controller Link Units

Unit
clas-
sifi-
cation
Product
name
Specifications No.
of
unit
num-
bers
allo-
cated
Current
consump-
tion (A)
Model Stand-
ards
Communi-
cations
cable
Communi-
cations
type
Duplex
sup-
port
Max. Units
mountable
per CPU
Unit
5 V
DC
24 V
DC
CJ1
CPU
Bus
Unit
Controller
Link Unit
1452_lu_1_1
Wired
shielded
twisted-pair
cable *
Data links
and
message
service
No 8 1 0.35 --- CJ1W-CLK23 UC1,
N, L,
CE

Note: This unit cannot be used with the Machine Automation Controller NJ-series.
* Use the following special cable for shielded, twisted-pair cable.
  • ESVC0.5×2C-13262 (Bando Electric Wire: Japanese Company)
  • ESNC0.5×2C-99-087B (JMACS Japan Co., Ltd.: Japanese Company)
  • ESPC 1P×0.5mm2 (Nagaoka Electric Wire Co.,Ltd.: Japanese Company)
  • Li2Y-FCY2×0.56qmm (Kromberg & Schubert, Komtec Department: German Company)
  • 1×2×AWG-20PE+Tr.CUSN+PVC (Draka Cables Industrial: Spanish Company)
  • #9207 (Belden: US Company)

Accessories

There is no accessory for the CJ series Controller Link Unit.

Controller Link Support Boards

Product name Specifications Accessories Model Stand-
ards
Communica-
tions cable
Communica-
tions type
Controller Link
Support Board
for PCI Bus
1452_lu_2_1
Wired
shielded
twisted-pair
cable
Data links
and
message
service
• CD-ROM ×1 *
• INSTALLATION GUIDE (W467) ×1
• Communications connector ×1
3G8F7-CLK23-E CE, KC

* The CD-ROM contains the following software.
  • Controller Link (PCI) Driver
  • FinsGateway Version 2003 (PCI-CLK Edition)
  • FinsGateway Version 3 (PCI-CLK Edition)
  • Setup Diagnostic Utility
  • C Library

Repeater Units

Name Specifications Model Standards
Controller Link
Repeater Unit
1452_lu_3_1
Wire-to-Wire Model CS1W-RPT01 UC1, CE
Wire-to-Optical (H-PCF) Model *1 CS1W-RPT02
Wire-to-Optical (GI) Model *2 CS1W-RPT03

Using Repeater Units enables T-branches and long-distance wiring for Wired Controller Link networks, 62-node configurations, and converting part of the network to optical cable.
*1. When using wire-to-optical (H-PCF) cable, use a H-PCF cable (for both Controller Link and SYSMAC LINK) or a H-PCF
       optical fiber cable with connector.
*2. When using wire-to-optical (GI) cable, use a GI optical cable (for Controller Link).

Relay Terminal Block

Name Specifications Model Standards
Relay Terminal Block for
Wired Controller Link Units
1452_lu_4_1
Used for Wired Controller Link Units (set of 5) CJ1W-TB101 ---

Controller Link Units can be replaced without stopping the communications of the entire network if a Relay Terminal Block is installed in advance on the Unit in a Wired Controller Link network. Relay Terminal Blocks cannot be used on Controller Link Support Boards.

H-PCF Cables and Optical Connectors

Name Application/construction Specifications Model Standards
Optical Fiber Cables Controller
Link,
SYSMAC
LINK,
SYSBUS
1452_lu_5_1
1. Optical fiber
single-core cord
2. Tension member
(plastic-sheathed wire)
3. Filler (plastic)
4. Filler surrounding
signal wires
(plastic, yarn, or fiber)
5. Holding tape (plastic)
6. Heat-resistant PV
sheath
Two-core
optical
cable with
tension
member
Black 10 m S3200-HCCB101 ---
Black 50 m S3200-HCCB501
Black 100 m S3200-HCCB102
Black 500 m S3200-HCCB502
Black 1000 m S3200-HCCB103
Orange 10 m S3200-HCCO101
Orange 50 m S3200-HCCO501
Orange 100 m S3200-HCCO102
Orange 500 m S3200-HCCO502
Orange 1000 m S3200-HCCO103
Optical
Connectors
(Crimp-cut)
1452_lu_5_2
CS1W-RPT02 Half lock S3200-COCF2571
1452_lu_5_3
Full lock S3200-COCF2071

H-PCF Optical Fiber Cables with Connectors (Black Composite Cables with Two-Optical Lines and Two Power Supply Lines)

Application Appearance Model Standards
Controller Link,
SYSMAC LINK
1452_lu_6_1
S3200-CN[][][]-20-20 ---
1452_lu_6_2
S3200-CN[][][]-20-25
1452_lu_6_3
S3200-CN[][][]-25-25

Optical connectors for H-PCF Optical Cables with Connectors are adhesive polished.

Cable Length

The following cable lengths are available: 2 m, 5 m, 15 m, 20 m. For lengths of 21 m or more, contact your OMRON sales representative.

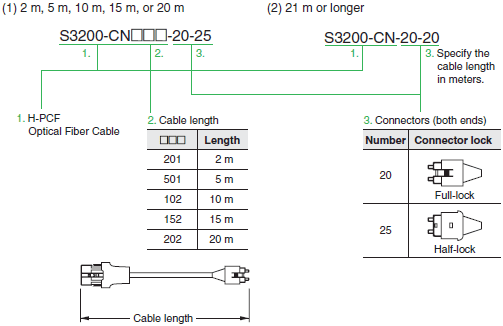

Model Numbers

CJ1W-CLK Lineup 15

Optical Connector Assembly Tool

Name Applicable Unit Model Manufacturer Standards
Optical Fiber
Assembly Tool *
This tool is used on site for mounting crimp-cut connectors
and hard plastic-clad silica optical fiber for optical transmission
systems of SYSMAC C-series SYSBUS, SYSMAC LINK, and
Controller Link.
CAK-0057 Sumitomo Electric
Industries, Ltd.
---

* There is a risk of quality problems when using cables assembled by typical users, so we recommend purchasing
   cables with preattached connectors or having a qualified technician assemble the cables.
