D4NH
Safety-door Hinge Switch
Compact, Plastic-body Safety-door Hinge Switch Designed for Saving Space in Machines and Other Equipment
Related Contents
- Safety Door Switches
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: October 10, 2017

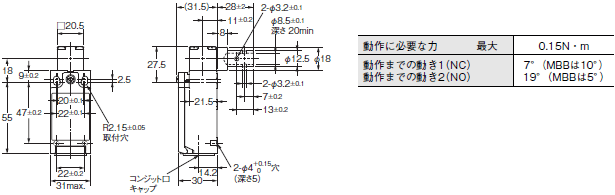

Shaft Type with 1 Conduit
D4NH-1[]AS D4NH-2[]AS
D4NH-4[]AS

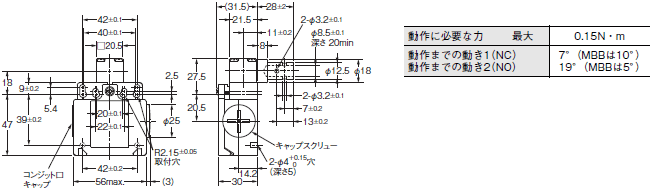

Shaft Type with 2 Conduits
D4NH-6[]AS D4NH-8[]AS

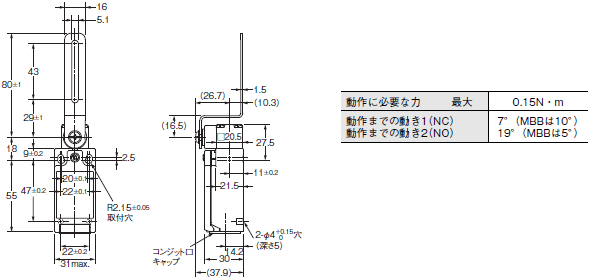

Arm Lever Type with 1 Conduit
D4NH-1[]BC D4NH-2[]BC
D4NH-4[]BC

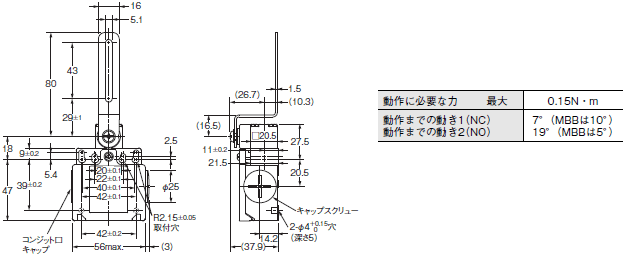

Arm Lever Type with 2 Conduits
D4NH-6[]BC D4NH-8[]BC
Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. Variation occurs in the simultaneity of contact opening/closing operations of 2NC, 2NC/1NO, and 3NC contacts.
Check contact operation.
2. Variation occurs in the simultaneity of contact opening/closing operations of 2NC, 2NC/1NO, and 3NC contacts.
Check contact operation.
