(Unit: mm)
Timer Interval Indicator
last update: September 4, 2014

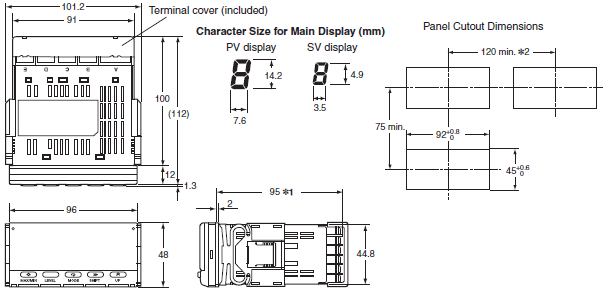

(Unit: mm)
*1. DeviceNet models: 97 mm
*2. Leave a distance of at least 140 mm when using the Watertight Cover Y92A-49N.
Note: Mounting Recommended Panel Thickness 1 to 8 mm.
Mount the product horizontally.
Terminal: M3, Terminal Cover: Accessory
