G2R-[]-S (S)

General-purpose Relay

G2R-[]-S (S)

Slim and Space-saving Power Plug-in Relay

Item list of G2R-[]-S (S)

last update: November 25, 2024

Model Number Structure

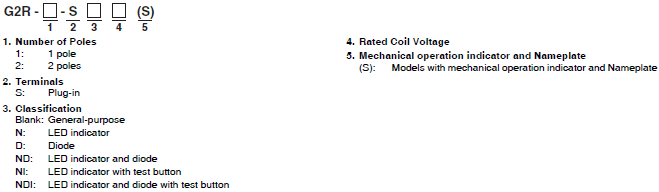

Model Number Legend

Note: Contact your OMRON representative for Relays with gold-plated contacts.

Ordering Information

When your order, specify the rated voltage.

List of Models

Classification	Coil ratings	Contact form
Classification	Coil ratings	SPDT	DPDT
General-purpose	AC 24, 48, 110, 120, 230, 240 DC 6, 12, 24, 48	G2R-1-S (S)	G2R-2-S (S)
LED indicator		G2R-1-SN (S)	G2R-2-SN (S)
LED indicator with test button		G2R-1-SNI (S)	G2R-2-SNI (S)
Diode	DC 6, 12, 24, 48	G2R-1-SD (S)	G2R-2-SD (S)
LED indicator and diode		G2R-1-SND (S)	G2R-2-SND (S)
LED indicator and diode with test button		G2R-1-SNDI (S)	G2R-2-SNDI (S)

Note: 1. The standard models are compliant with UL/CSA and VDE standards. Also, an EC compliance declaration has
been made for combinations with the P2RF-[]-E, P2RF-[]-S and P2RF-[]-PU. The Relays bear the CE Marking.
2. Refer to Connecting Sockets, below, for applicable Socket models.
3. When ordering, add the rated coil voltage and "(S)" to the model number. Rated coil voltages are given in the
coil ratings table.

Accessories (Order Separately)

Connecting Sockets

Track/surface-mounting Socket

Applicable relay model*1	Mounting Method	Conductive part protection	Terminal Type	Applicable crimp terminal/ Electric wire	Exclusive short bar (Order Separately)	Model
G2R-1-S	Mounted on a DIN track or with screws	Available	Push-In Plus Terminal	Ferrules Solid wire Stranded wire	Available	*P2RF-05-PU 2**
		Available	Screw terminal (M3 screw size)	Forked terminals Solid wire Stranded wire	Available	*P2RFZ-05-E 4**
		Option (Terminal cover sold separately) *3	Screw terminal (M3.5 screw size)	Round terminals Forked terminals Solid wire Stranded wire	Available	P2RFZ-05
G2R-2-S	Mounted on a DIN track or with screws	Available	Push-In Plus Terminal	Ferrules Solid wire Stranded wire	Available	*P2RF-08-PU 2**
		Available	Screw terminal (M3 screw size)	Forked terminals Solid wire Stranded wire	Available	*P2RFZ-08-E 4**
		Option (Terminal cover sold separately) *3	Screw terminal (M3.5 screw size)	Round terminals Forked terminals Solid wire Stranded wire	Available	P2RFZ-08

*1.The applicable relay model is a plug-in terminal type.
*2.There are screw mounting holes in the DIN hooks on the P2RF-[][]-PU. Pull out the DIN hook tabs to mount the Sockets
with screws.
*3.Terminal cover type is P2CZ-Z. (Order Separately) For details, refer to the on below.
*4.The finger-protection type (P2RFZ-[][]-E) is a type in which the terminal cover is integrated into the socket. Round
terminals cannot be used.
Use forked terminals or ferrules instead.

Back-mounting Socket

Applicable Relay model	Mounting Method	Model
G2R-1-S	PCB terminals	P2R-05P
	PCB terminals	P2R-057P
	Solder terminals	P2R-05A
G2R-2-S	PCB terminals	P2R-08P
	PCB terminals	P2R-087P
	Solder terminals	P2R-08A

For Push-In Plus Terminal Block Sockets

Short Bars

Applicable sockets	Pitch	Application	Number of poles	L (Length)	Insulation color	Short Bars Model*1	Maximum carry current
P2RF-05-PU P2RF-08-PU	7.75 mm	Bridging contact terminals (common)	2	15.1	Red (R) Blue (S) Yellow(Y)	PYDN-7.75-020[]	20 A
			3	22.85		PYDN-7.75-030[]
			4	30.6		PYDN-7.75-040[]
			20	154.6		PYDN-7.75-200[]
	15.5 mm	For Coil terminals	8	115.55		PYDN-15.5-080[]

*1. Replace the box ([]) in the model number with the code for the covering color. []Color selection: R = Red, S = Blue,
Y = Yellow

Labels

Applicable sockets	Model
P2RF-05-PU P2RF-08-PU	XW5Z-P4.0LB1 (1 sheet/60 pieces)

For Screw Terminal Sockets

Short Bars

Applicable sockets	Pitch	Number of poles	Insu- ation color	Short Bars Model	Maximum carry current	Minimum order (set)
P2RFZ-08-E for shorting contact COM terminals	6.8 mm	20	Blue (S)	P2DN-6.8-100S	20 A	1
P2RFZ-05-E P2RFZ-08-E	15.7 mm	10	Blue (S)	P2DN-15.7-100S	20 A	1
P2RFZ-08 for shorting contact COM terminals	8.5 mm	20	Blue (S)	P2DN-8.5-100S	20 A	1
P2RFZ-05 P2RFZ-08	19.4 mm	10	Blue (S)	P2DN-19.4-100S	20 A	1

Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
2. Use the Short Bars for crossover wiring within one Socket or between Sockets.

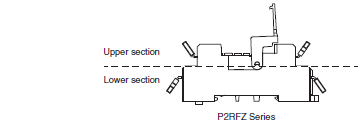

3. Use the short bars on the lower section of the socket.
When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
(see the figure below).
Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.

* One set (order unit) contains 10 short bars and 20 caps.

Accessories for Short Bars (P2DN)

Cap

Short Bars Models	Appearance	Dimensions (mm)	Model
P2DN-8.5-100S P2DN-19.4-100S P2DN-6.8-100S P2DN-15.7-100S			P2DN-CP100

For Screw Terminal Sockets (P2RFZ-05/P2RFZ-08)

Terminal covers

Applicable sockets	Appearance	Model	Minimum order (set)
P2RFZ-05 P2RFZ-08		P2CZ-C

Note: 1. Use these covers in a combination with P2RFZ-05 and P2RFZ-08.
2. Do not install short bars (optional) on the upper section (see the figure below).
Short bars may interfere with the terminal cover, making the terminal cover unusable.

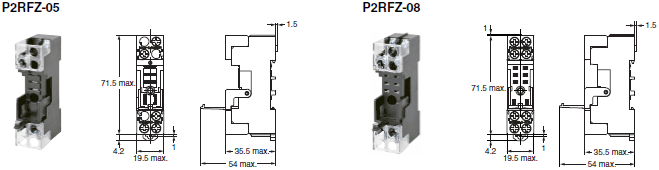

Dimensions with terminal cover

Labels

Applicable sockets	Model	Minimum order (sheet) (quantity per sheet)
P2RFZ-[]-E	XW5Z-P2.5LB1	5 1 sheet (72 pieces)

Note: This label cannot be applied on sockets other than P2RFZ-[]-E.

Mounting Tracks

Applicable Socket	Description		Model	Minimum order (quantity)
Track-connecting Socket	Mounting track	50 cm (l) × 7.3 mm (t):	PFP-50N	---
		1 m (l) × 7.3 mm (t):	PFP-100N
		1 m (l) × 16 mm (t):	PFP-100N2
	End plate *1		PFP-M	10
	Spacer		PFP-S	10
Back-connecting Socket	Mounting plate *2		P2R-P	1

*1.When mounting DIN rail, please use End Plate (PFP-M).
*2.Used to mount several P2R-05A and P2R-08A Connecting Sockets side by side.

last update: November 25, 2024
