Limit Switch Connectors

Connectors for Limit switches to secure watertightness of the edges of the conduits.

last update: June 1, 2020

Connectors (SC Series)

Connector for Cabtire Cable

Conduit	Applicable cable	Inner diameter (D) of seal rubber	External diameter of cable		Model	Applicable model
Conduit	Applicable cable	Inner diameter (D) of seal rubber	Min.	Max.	Model	Applicable model
JIS B 0202 G1/2	Cabtire cable (general-purpose)	7 mm	5.5 mm	7.5 mm	SC-1M	WL-N, WL, D4A-[]N, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2
		9 mm	7.5 mm	9.5 mm	SC-2M
		12.5 mm	11 mm	13 mm	SC-3M
		14 mm	12 mm	14 mm	SC-4M
		11 mm	9 mm	11 mm	SC-5M
	Cabtire cable (anti-corrosive)	7 mm	5.5 mm	7.5 mm	SC-21
		9 mm	7.5 mm	9.5 mm	SC-22
		12.5 mm	11 mm	13 mm	SC-23
		14 mm	12 mm	14 mm	SC-24
		11 mm	9 mm	11 mm	SC-25
1/2-14NPT	Cabtire cable	7 mm	5.5 mm	7.5 mm	SC-1PT	D4A-[]N
		9 mm	7.5 mm	9.5 mm	SC-2PT
		12.5 mm	11 mm	13 mm	SC-3PT
		14 mm	12 mm	14 mm	SC-4PT
		11 mm	9 mm	11 mm	SC-5PT

Note: Please use sealling tape with SC Connectors. SC-1M to SC-5M, however, are provided with an O-ring (NBR) and
therefore sealing tape is not necessary to ensure a proper seal.

Simple Connector

(Not Suitable for Locations Subject to Oil or Water)

Conduit	Applicable cable	Inner diameter (D) of seal rubber	External diameter of cable		Model	Applicable model
Conduit	Applicable cable	Inner diameter (D) of seal rubber	Min.	Max.	Model	Applicable model
JIS B 0202 G1/2	Cabtire cable	10.6 mm	8.5 mm	10.5 mm	SC-P2	WL-N, WL, D4A-[]N, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2
Pg13.5		9.6 mm	7.5 mm	9.5 mm	SC-P3	WL[]-G
JIS B 0202 G1/2		9 mm	7.5 mm	9 mm	SC-6	WL-N, WL, D4A-[]N, D4N , D4N-[]R , D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2

Note: Simple connector are made of resin. If more sealing capability is required, use one of SC-1M to SC-5M, which
have metal casings.
Models marked with an asterisk (*) however, can only be used with resin connectors.

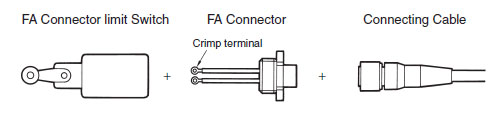

SC-[]F[] FA Connectors

FA Connectors

Model	Number of conductors	Voltage specification	Size of conduit	Size of crimp terminal	Applicable model
SC-2F	2	125 VDC	JIS B 0202 G½	M4	WL-N, WL
SC-2FAD	2	250 VAC
SC-4F4D	4	125 VDC
SC-4F4AD	4	250 VAC

Connecting Cables

Voltage specification	Number of conductors	Cable length	Model
AC	2	2 m	XS2F-A421-DB0-F
	2	5 m	XS2F-A421-GB0-F
	4	2 m	XS2F-A421-D90-F
	4	5 m	XS2F-A421-G90-F
DC	2	2 m	XS2F-D421-DD0
	2	5 m	XS2F-D421-GD0
	4	2 m	XS2F-D421-D80-F
	4	5 m	XS2F-D421-G80-F

last update: June 1, 2020
