CRT1-VAD04[][] / VDA02[][]

Analog I/O Slave Units with MIL Connectors/e-CON Connectors

CRT1-VAD04[][] / VDA02[][]

Analog Slave Units with the Industry's Narrowest Width Help Save Space in Equipment and Panels

Caution: All units are in millimeters unless otherwise indicated.

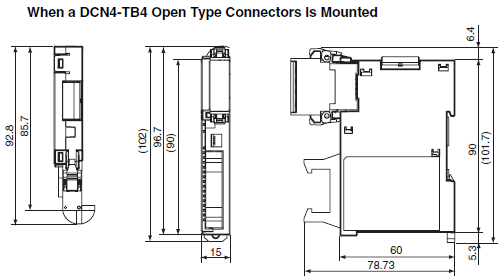

Four-point Analog Input Unit (with MIL Connectors)
CRT1-VAD04ML

CRT1-VAD04[][] / VDA02[][] Dimensions 1

Note: The numbers inside the parentheses are reference dimensions.

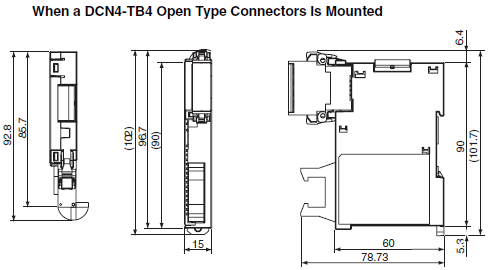

Two-point Analog Output Unit (with MIL Connectors)
CRT1-VDA02ML

CRT1-VAD04[][] / VDA02[][] Dimensions 2

Note: The numbers inside the parentheses are reference dimensions.

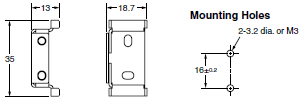

Mounting Bracket
CRT1-ATT01

CRT1-VAD04[][] / VDA02[][] Dimensions 3

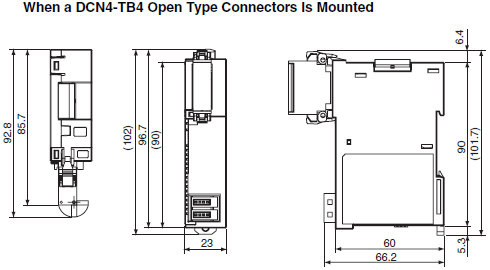

Four-point Analog Input Unit (with e-CON Connectors)
CRT1-VAD04S

CRT1-VAD04[][] / VDA02[][] Dimensions 4

Note: The numbers inside the parentheses are reference dimensions.

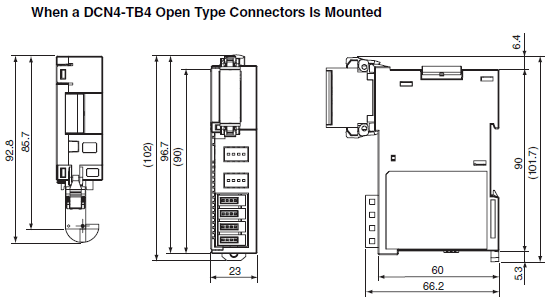

Two-point Analog Output Unit (with e-CON Connectors)
CRT1-VDA02S

CRT1-VAD04[][] / VDA02[][] Dimensions 5

Note: The numbers inside the parentheses are reference dimensions.

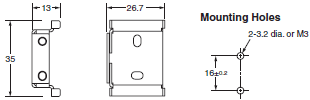

Mounting Bracket
CRT1-ATT02

CRT1-VAD04[][] / VDA02[][] Dimensions 6
