H5F

Digital Daily Time Switch

H5F

Daily Time Control with Simple Operations

Item list of H5F

last update: November 12, 2012

(Unit: mm)

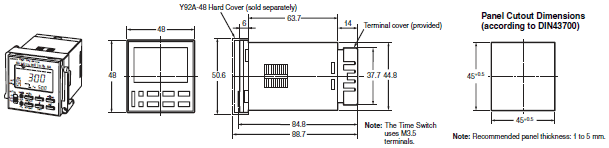

H5F-B (provided with Y92F-30 Flush Mounting Adapter)
(Flush Mounting)

H5F Dimensions 1

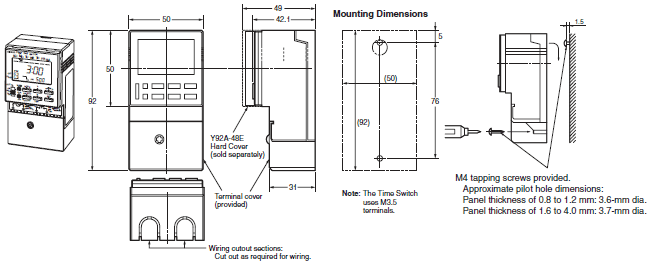

H5F-FB
(Surface Mounting)

H5F Dimensions 2

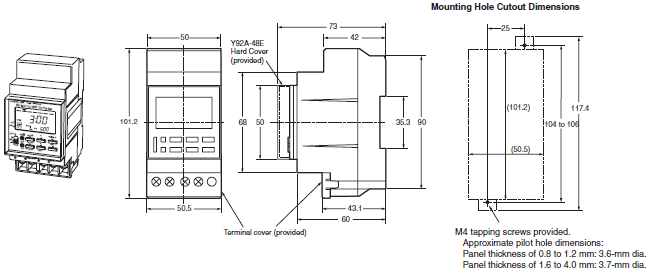

H5F-KB
(Surface/Track Mounting)

H5F Dimensions 3

Accessories (Order Separately)

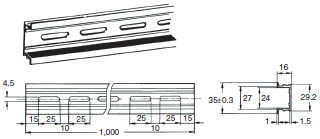

Mounting Track

PFP-100N, PFP-50N

H5F Dimensions 6

Note: The values shown in parentheses are for the PFP-50N.

PFP-100N2

H5F Dimensions 7

End Plate

PFP-M

H5F Dimensions 9

Spacer

PFP-S

H5F Dimensions 11
