CRT1B-[]D02JS(-1) / []D04JS(-1)

Bit Slave Units with Compact Connectors

CRT1B-[]D02JS(-1) / []D04JS(-1)

Bit slave of smallest class in industry Innovation in wiring for any type of machinery

Caution: All units are in millimeters unless otherwise indicated.

2-points Inputs, 2-points Outputs, 1-point Input/1-point Output type
CRT1B-ID02JS
CRT1B-ID02JS-1
CRT1B-OD02JS
CRT1B-OD02JS-1
CRT1B-MD02JS
CRT1B-MD02JS-1

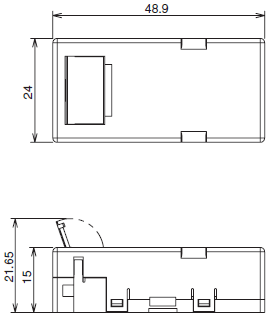

CRT1B-[]D02JS(-1) / []D04JS(-1) Dimensions 1

4-points Inputs, 4-points Outputs, 2-points Inputs/2-points Outputs type
CRT1B-ID04JS
CRT1B-ID04JS-1
CRT1B-OD04JS
CRT1B-OD04JS-1
CRT1B-MD04JS
CRT1B-MD04JS-1

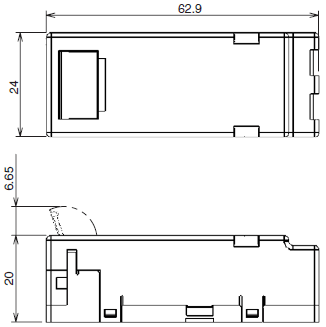

CRT1B-[]D02JS(-1) / []D04JS(-1) Dimensions 2
